Basic info:
- Item No.: CW26-2424CT
-
- Material: Toray T700/T800+T700 Carbon Fiber
-
- Rim Type: Hookless Clincher tubeless compatible
-
- Warranty: 3 Years

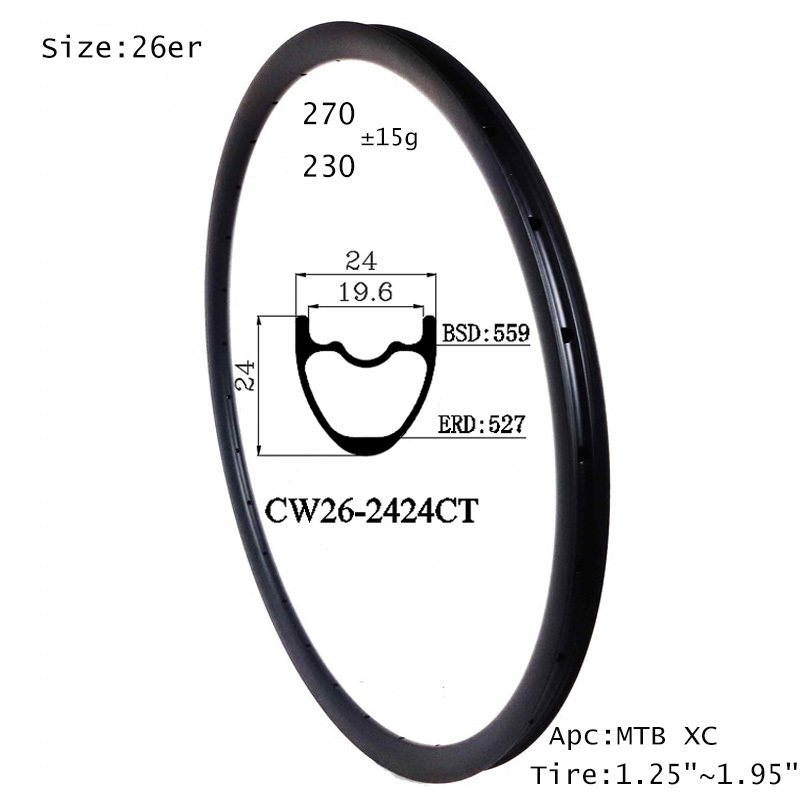

Dimension:
-
Size: 26er
BSD: 559mm
-
ERD: 527mm
External Width: 24mm
-
Spoke Hole Dia.: 4.5mm / 2.5mm
Depth: 24mm
-
Internal Width: 19.6mm
Valve Hole Dia.: 6.5mm
Hole count: 24, 28, 32, 36
Assembly Hole Dia.: 8.5mm
-
Weight: 270+/- 15g pcs (Standard XC),230+/- 15g pcs (Ultralight)
Recommendation data:
-
Tire Size: 1.25" ~1.95"
Max Spoke Tension: 120kgf
-
Weight Limit: 100kg
Max Tire Pressure: 65psi
Appearance:
Weave: UD/3K/12K/3K twill/12K twill
Finish: Matte / Glossy
Application:
XC race (cross country)
Feature:
Tech improvements:
* The ultralight version is new tech designed,(50% T800 and fixed T700 another) With Toray T800 carbon fiber it has more strongth and smaller density,but still keep T700 carbon weave with good tenacity characters.So the rims with more stronger,lighter,and durable.And strand version,just normal T700 carbon fiber,so it can do any carbon weave.
Ps: But ultralight version just can be do UD carbon weave,so if you need to ultralight/super light vesion,plz just choose UD carbon weave.
* Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.
* Single layer technical made,is the latest generation process made of the carbon rims,whether from inner and outside layers are all use one piece carbon fiber,so the rim will have good strength,and light weight.
* 24mm width 24mm depth it's our lightest types and was designed according to the latest trend. By getting ride of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.
* Hookless: By getting rid of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.
* Filled with 3D weave, that will make the rim stable, safe and durable.
* Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.
* 250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
