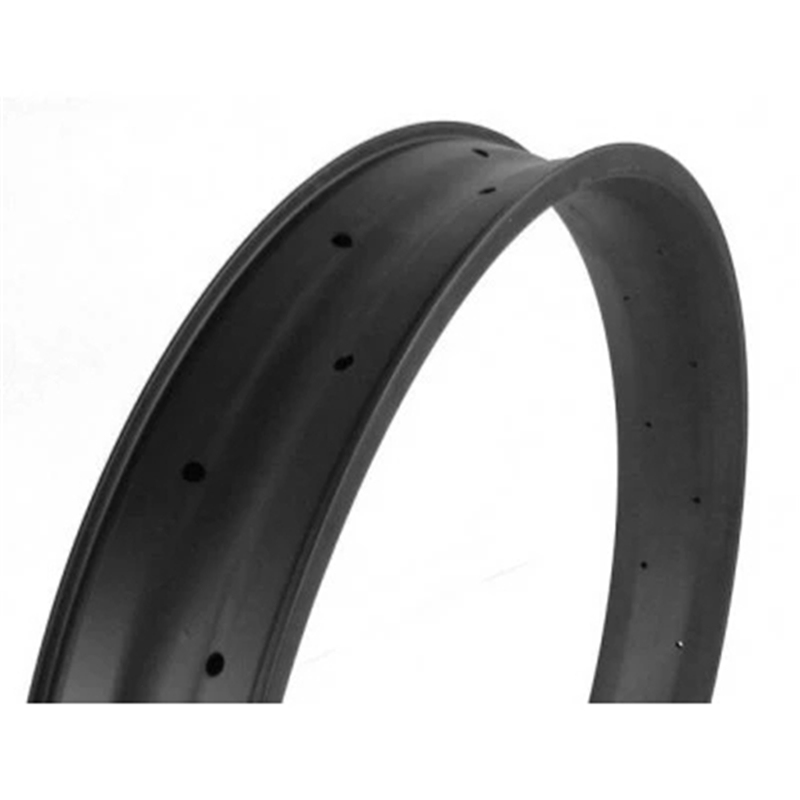

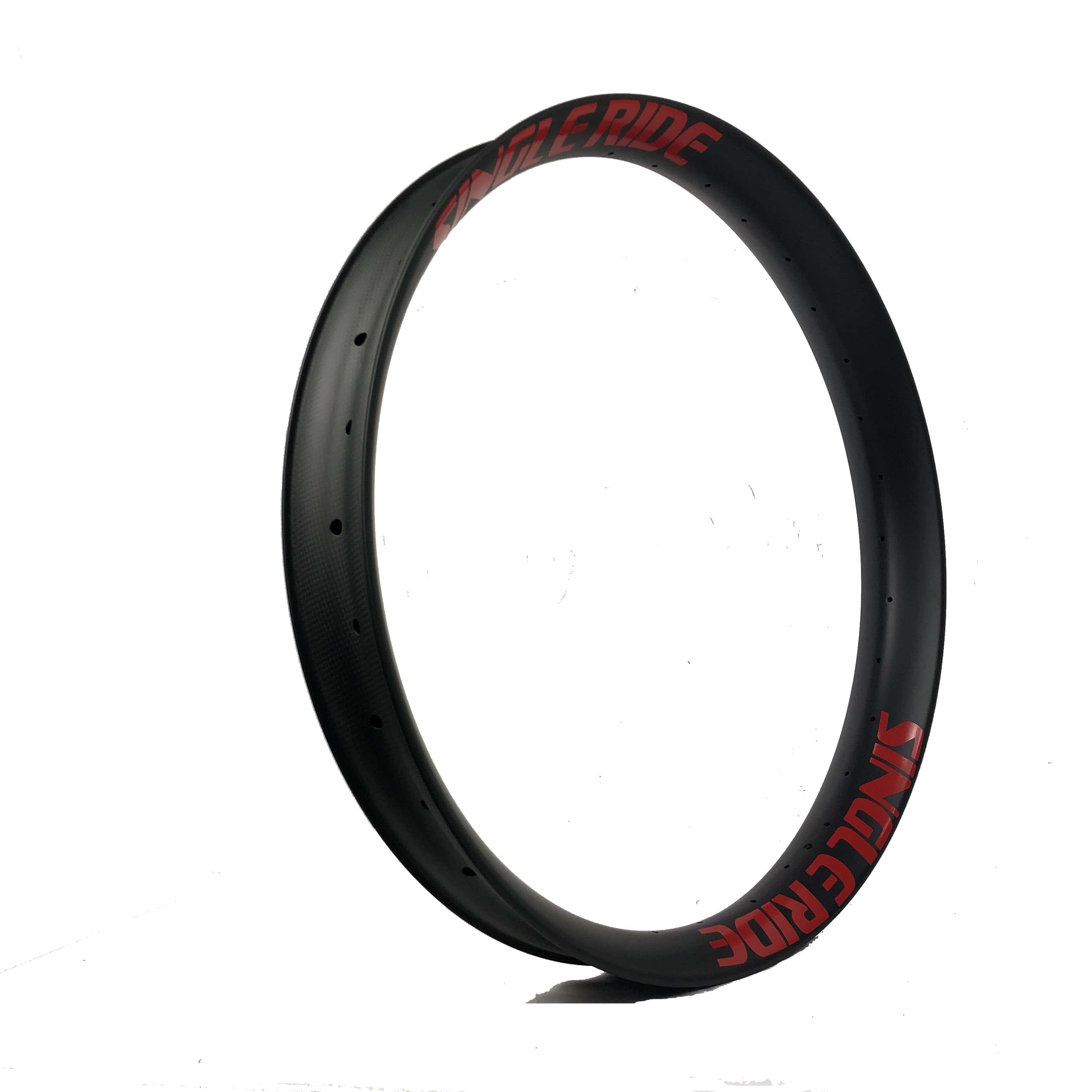

Name: |CW26-9518CT| 26er carbon fat bike rim 95mm width 18mm depth clincher tubeless hookless snowy day free ride high quality competitive price offer
Brand: Cyclingwheel
SKU: CW26-95-18CT
Price: 282.94 USD
Availability: InStock

Your position: Home / Fatbike / Fat rims

facebook
twitter
pinterest
vk
linkedin google digg reddit stumbleupon delicious

PDF Format

Price:

$282.94

~~$329.00~~

(14% OFF)

Please select the information you wantX

Weave:

UD

3K

12K

3K twill

12K twill
Holes:

28

32

36
Finish:

matt

glossy

50% matt

Paintless Matt

Paintless Glossy
Spokes holes type&Diameter:

Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)

Without outer holes(No need rim tapes Inner holes 4.5mm)

Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
Ships From:

China

Quantity:

Shipping Cost:

Description
Reviews

Basic info:

Item No.: CW26-9518CT
Material: Toray T700+T1000 Carbon Fiber
Rim Type: Hookless clincher tubeless compatible
Warranty: 3 Years
Standard: EN Standard
Brake system:Disc brake

Dimension:

Size: 26er

BSD: 559mm (ISO Standard)
ERD: 541mm (don't inclued nipples hed)

External Width: 79mm
Spoke Hole Dia.: 4.5mm / 2.3mm

Depth:18mm

Internal Width:79mm(clincher tubeless compatible)

Valve Hole Dia.: 6.5mm

Hole count: 28/32/36

Assembly Hole Dia.: 7.5mm

Weight: 590±20g
Recommendation data:
Tire Size: 3.0"~4.8"
Max weight limit: 120kg
Max spoke tension: 150kgf

Max tire pressure: 25psi

Application:

Fatbike/Snow bike XC

Appearance:

Weave: UD/3K/12K/3K twill/12K twill

Finish: Matte / Glossy / 50%Matt / Paintless Matt / Paintless Glossy

Feature:

Clinhcer tubeless Compatible designed: This function means you can install clincher or tubeless two kinds of tyres are all perfectly.

Tech improvements:

* 26er 95mm width 18mm depth carbon fat rims has excellent performances with the snow ground ride,it for advanced aerodynamics manufacture.It is ideally suited for racing xc ride.

* Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.

* Filled with 3D weave, that will make the rim stable, safe and durable.

* Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.

* 250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
