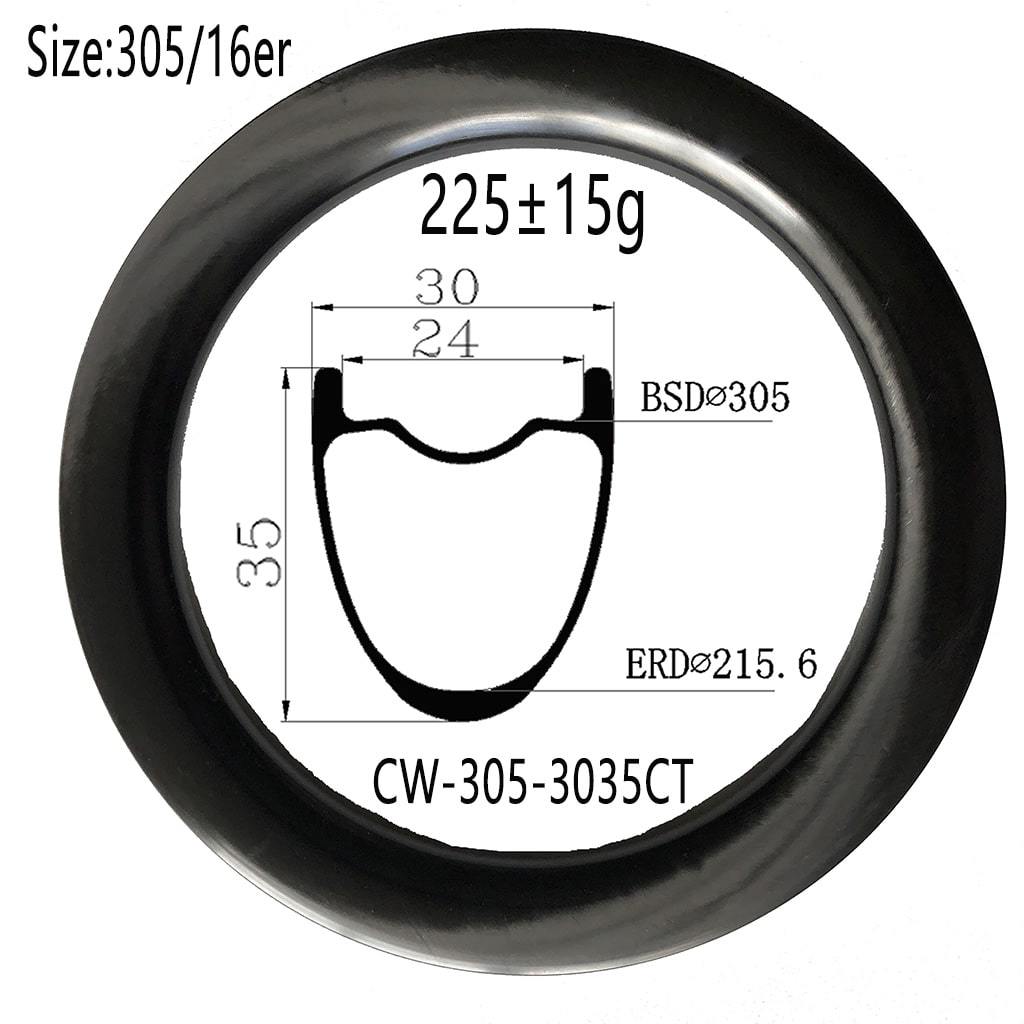

Size: 305/16er
BSD:305mm (ISO Standard)
ERD:215.6mm (don't inclued nipples hed)
External Width: 30mm
Spoke Hole Dia.: 4.5mm / 2.3mm
Depth:35mm
Internal Width: 24mm
Valve Hole Dia.: 6.5mm
Hole count: 16,18,20,21,24, 28, 32, 36 ,21 G3 lacing
Assembly Hole Dia.: 7.5mm
Weight:225+/- 15g pcs
Max Spoke Tension: 110kgf
Weight Limit: 100kg
Max Tire Pressure: 60psi
Weave: UD/3K/12K/3K twill/12K twill
Finish: Matte / Glossy / 50%Matt / Paintless Matt /Paintless Glossy

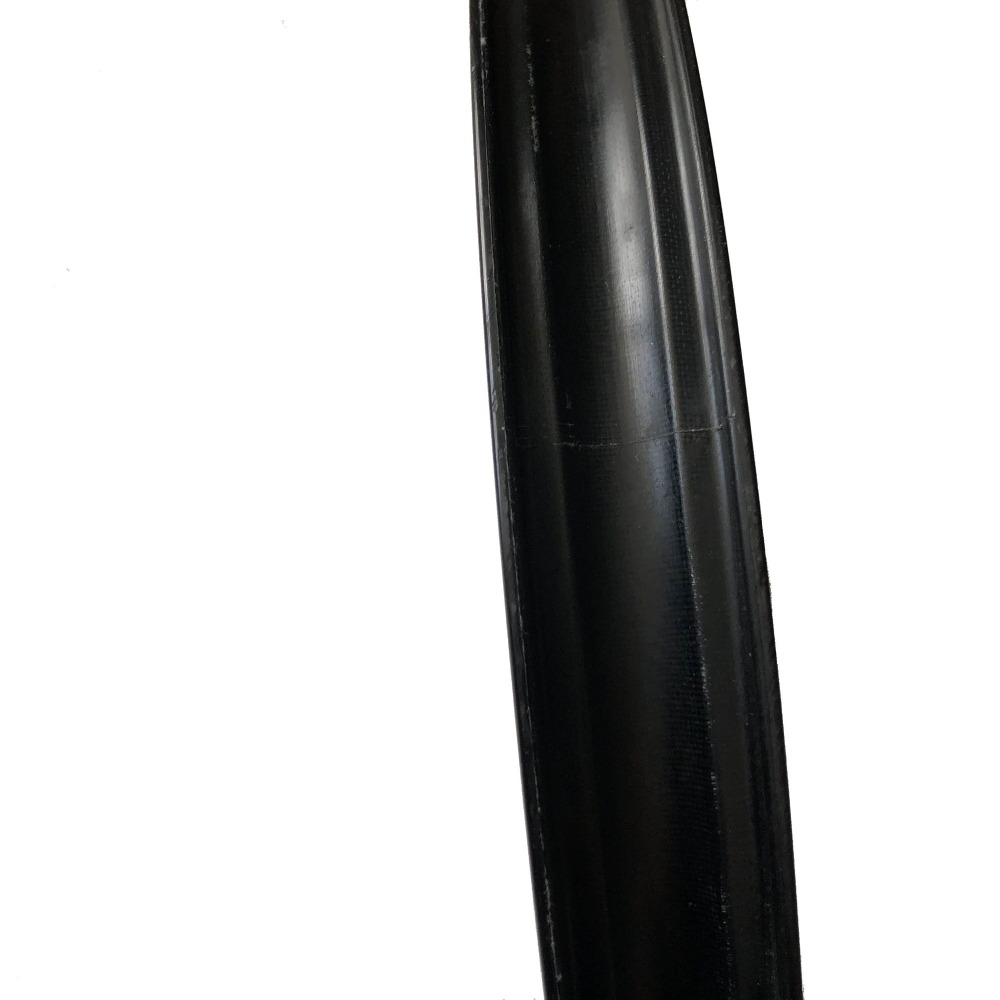

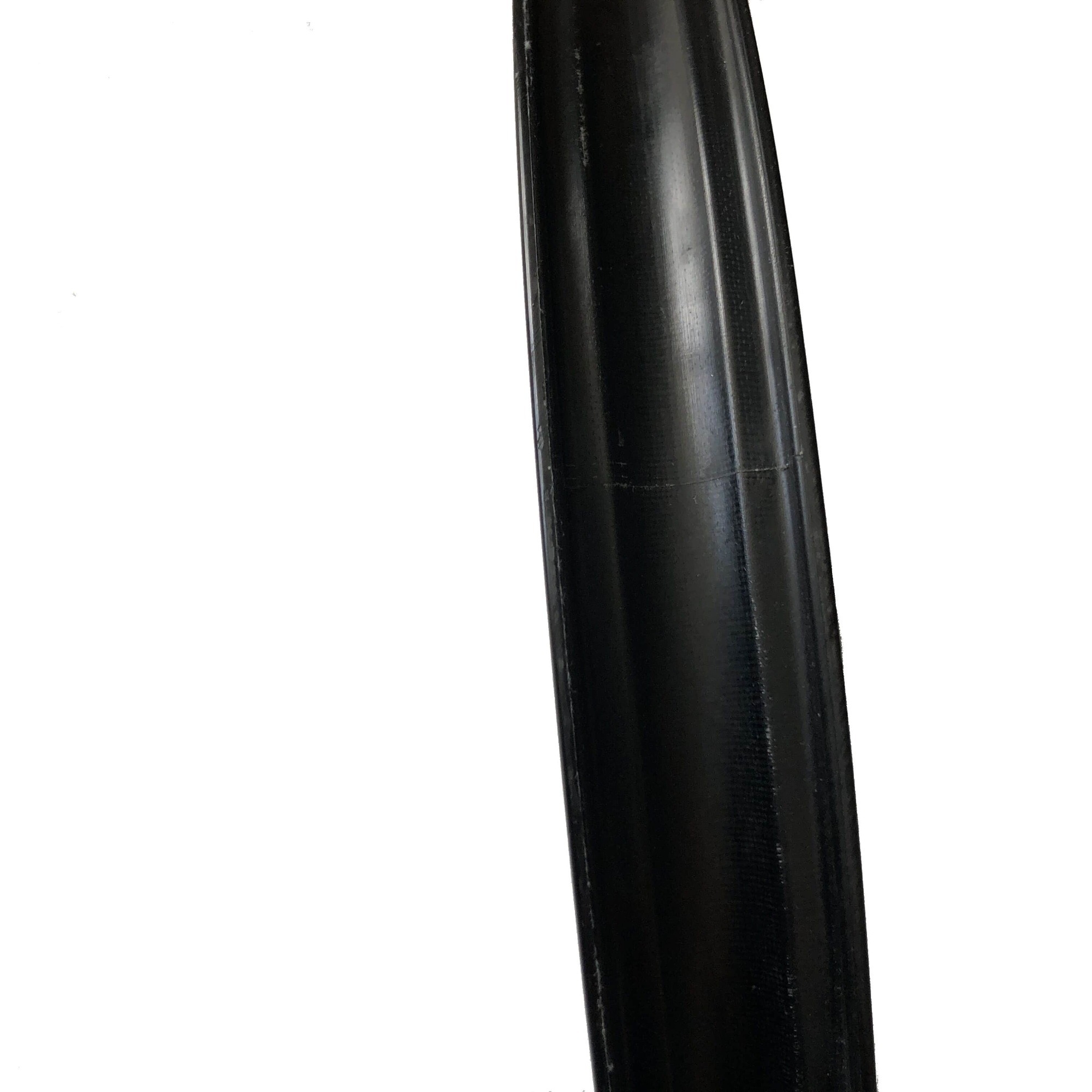

305/16er 30mm width 35mm depth carbon rims are our new design thanks to a slight widening of the rim, they are much stiffer. With a slightly angled brake track, they have better braking. And they are lightweight, fast, when hit a few windy sections, it could not fell a thing in the cross winds.
* Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.
* Filled with 3D weave, that will make the rim stable, safe and durable.
* Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.
* 250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
* Can be offered V brake/Disc brake system.
