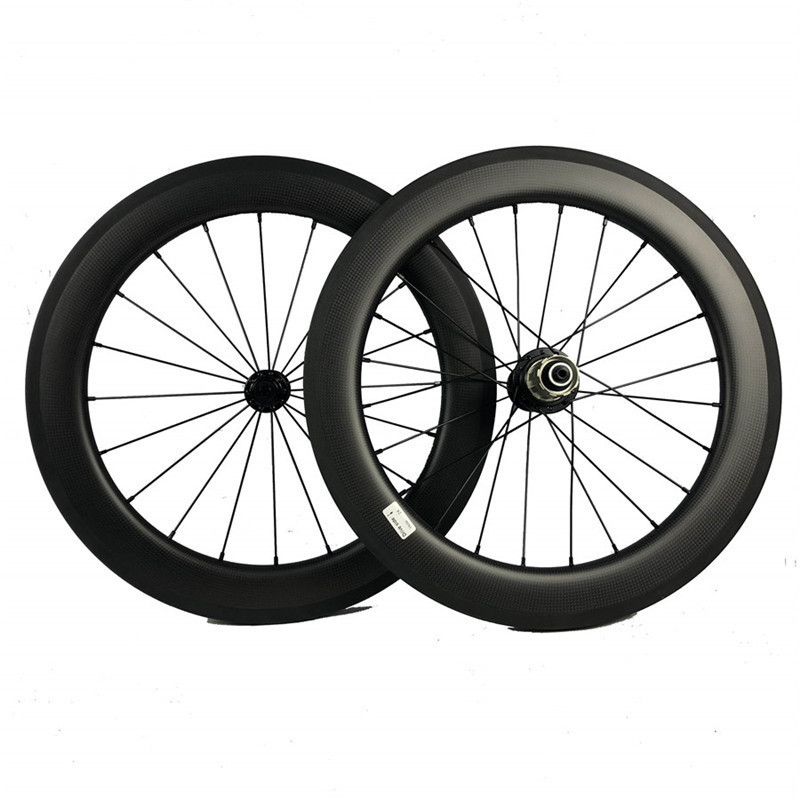

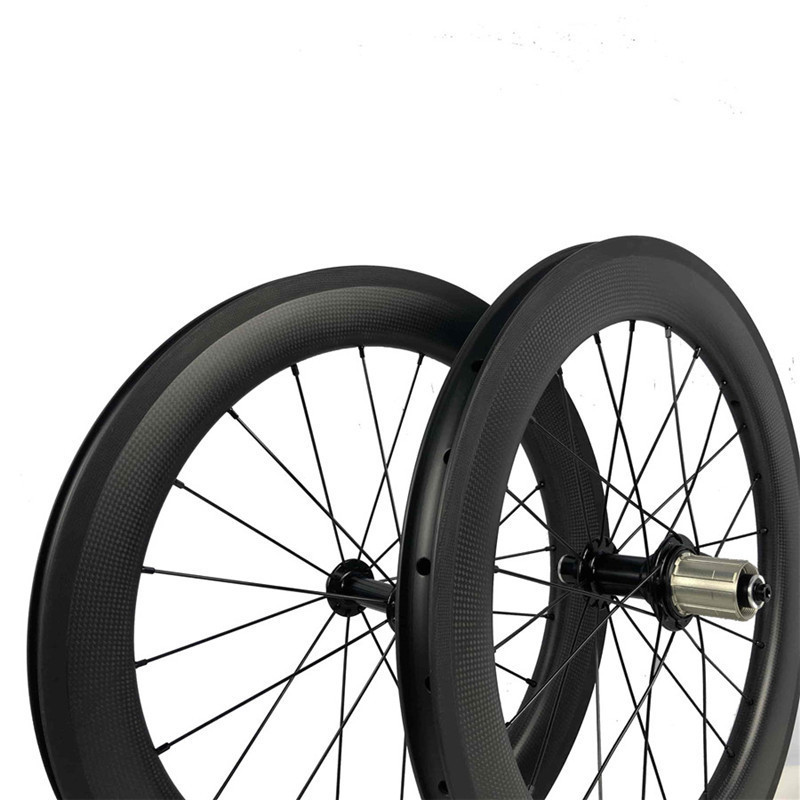

Name: |CW406-45CT-RW| 406 20er BMX carbon road bike wheel clincher tubeless compatible with made in Switzerland DT swiss 350s/240s Straight Pull hub Belgium
Brand: Cyclingwheel
SKU: CW451-50C-RW
Price: 574.48 USD
Availability: InStock
Rating: 5 (1 reviews)

Your position: Home / BMX / BMX wheels

facebook
twitter
pinterest
vk
linkedin google digg reddit stumbleupon delicious

PDF Format

Price:

$574.48

~~$668.00~~

(14% OFF)

Please select the information you wantX

Weave:

UD

3K

12K

3K twill

12K twill
Finish:

matt

glossy

50% matt

Paintless Matt

Paintless Glossy
Hub&Color:

DT Swiss 350s Straight Pull Black

DT Swiss 240s Straight Pull Black
Cassette body:

Shimano 10/11s

Campagnolo 10/11s
Spokes:

Pillar 1423

Pillar 1420 +$98

Sapim CX-Ray +$139
Spoke Holes:

20/24
Nipples/Color:

Aluminum Black

Aluminum Red
Hub axle size:

Quick Release 100/135mm
Ships From:

China

Quantity:

Shipping Cost:

Description
Reviews(1)

Basic:

Rims:

Model No. :CW406-45CT-RW

Size:406er/20er

Material:Toray T700 Full Carbon

Weave:3K/UD/12K/12K twill/3K twill

Finish:Matt/Glossy

Rim Width:23mm

ERD:367mm (ISO standard)

BSD:333mm

Type:Clincher

Weight:310±15g

Hub/Cassette body:

DT 350s (373g/pair) /DT 240s hubs(323g/pair)

Standard Quick release:Front 100mm x 9mm,
rear 135x 10mm.

Body:Shimano 10、11s or Campagnolo 10 11s

Origin:(Made in Switzerland).

Spoke&Nipple:

Pillar PSR1423/1420 (Made in TaiWan),Sapim CX-ray (Made in Belgium)
(Pillar PSR 1423 6.5g/pcs,1420 4.3g/pcs,CX-ray 4.3g/pcs)

Spoke holes:Front 20, Rear 24

Nipple&Colors:Aluminum (Black/Red/Silver

Wheelset Weight:1250~1390 ±50g (Build in different hubs and spokes)

Application:Road bike/Folding bike

Standard:En Standard

Recommendation:
Max weight limit: 90kg
Max spoke tension: 130kgf

Max tire pressure: 110psi

Feature:

Clinhcer designed: This function means you can install clincher tires,easy can be easy removed the tries for repaired in future.

Tech improvements:

* 406 23mm width 45mm depth carbon road wheels has excellent performances for 20er folding bike,it for advanced aerodynamics manufacture.It is ideally suited for racing ride.

* Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.

* Filled with 3D weave, that will make the rim stable, safe and durable.

* Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.

* 250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
