|CW27-3625CT| asymmetry 27.5er MTB rims 36mm width 25mm depth mountain bike hookless clincher and tubeless XC/AM/DH standard/ultralight version

27.5inch 355g~435g asymmetry external 36mm internal 30mm depth 25mm hookless clincher tubeless tire 2.0" ~ 2.55" ERD 550mm  XC/AM/DH version.
Price:
USD
$159.00
$179.00
    Please select the information you wantX
  • Weave:
    UD
    3K
    12K
    3K twill
    12K twill
    Marble
  • Finish:
    Matt
    Glossy
    50% matt
    Paintless Matt
    Paintless Glossy
  • Version:
    Ultralight XC 355g
    Standard XC 435g
    AM 480g
    DH 500g
  • Holes:
    24
    28
    32
    36
  • Spokes holes type&Diameter:
    Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)
    Without outer holes(No need rim tapes Inner holes 4.5mm)
    Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
Quantity:
-
+
(994 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews(1)

Basic info:

  • Item No.: CW27-3625CT
  •
  • Material: Toray T700/T800+T700 Carbon Fiber
  •
  • Rim Type: Hookless Clincher tubeless compatible
  •
  • Warranty: 3 Years
  •

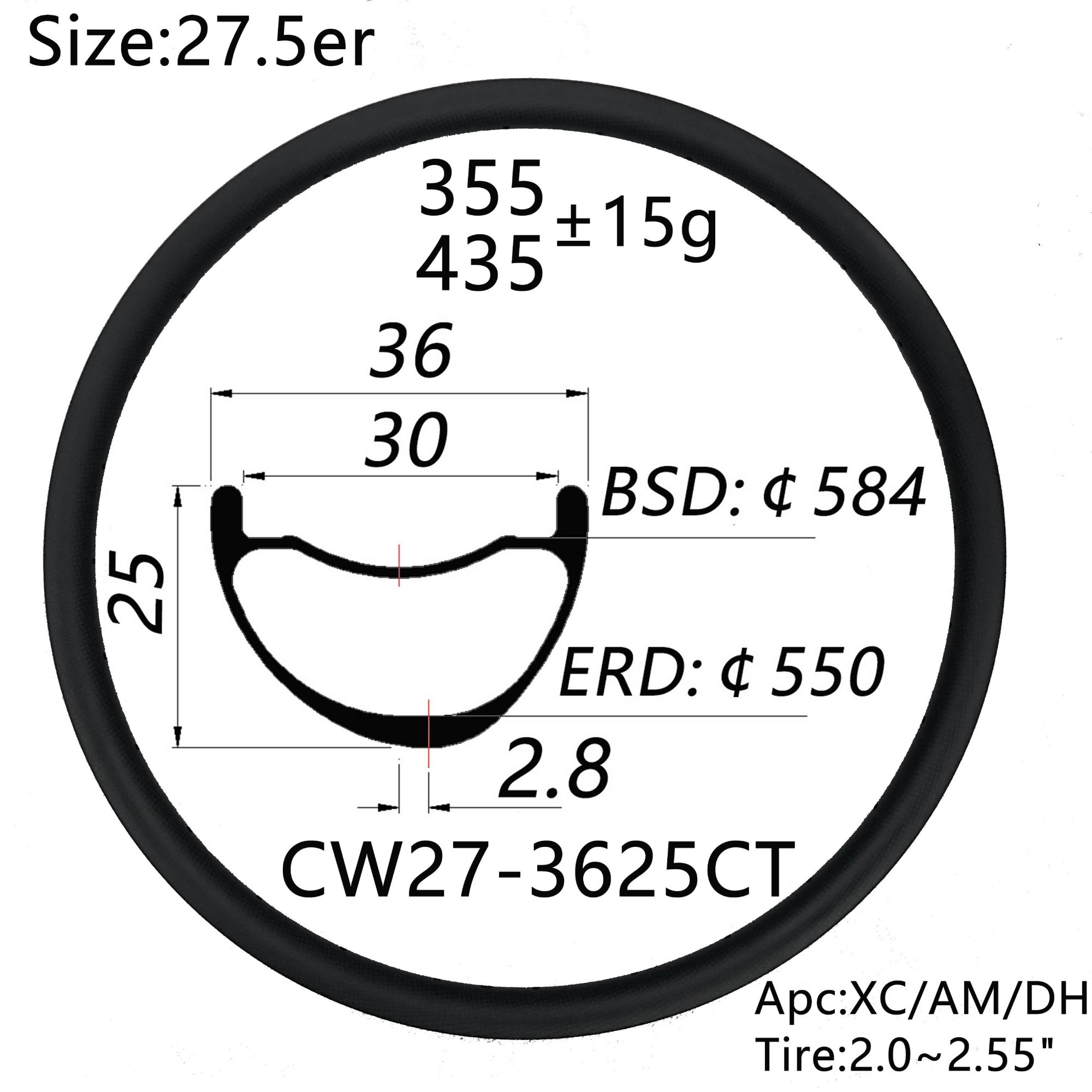

Dimension:

  • Size: 27.5er

    BSD: 584mm



  • ERD: 550mm

    External Width: 36mm



  • Spoke Hole Dia.: 4.5mm / 2.5mm

    Depth: 25mm



  • Internal Width: 30mm

    Valve Hole Dia.: 6.5mm


    Hole count: 24, 28, 32, 36

    Assembly Hole Dia.: 8.0mm



  • Weight: 355-+/- 15g pcs (ultra light),435+/-15g (Standard),470g+/-15g (AM),500g+/-15g (DH)

    Recommendation  data:

  • Tire Size: 2.0" ~ 2.55"

    Max Spoke Tension: 130kgf



  •  Weight Limit: 110kg

    Max Tire Pressure: 70psi

    Appearance:

    Weave: UD/3K/12K/3K twill/12K twill

    Finish: Matte / Glossy / 50% Matt/ Paintless Matt/ Paintless Glossy

Application:

XC/AM/DH racing / Single tracking

Feature:

  • Clinhcer tubeless Compatible designed: This function means you can install clincher or tubeless two kinds of tyres are all perfectly.

Tech improvements:

* The ultralight version is new tech designed,(50% T800 and fixed T700 another) With Toray T800 carbon fiber it has more strongth and smaller density,but still keep T700 carbon weave with good tenacity characters.So the rims with more stronger,lighter,and durable.And strand version,just normal T700 carbon fiber,so it can do any carbon weave.

Ps: But ultralight version just can be do UD carbon weave,so if you need to ultralight/super light vesion,plz just choose UD carbon weave.

* 27.5er 36mm width carbon rims is single layer technical made,is the latest generation process made of the carbon rims,whether from inner and outside layers are all use one piece carbon fiber,so the rim will have good strength,and light weight.This wide XC/Marathon riding very comfortable.


*  Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.



*  The 36mm width it's advantages technology design and new trend. By getting ride of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.



*  Hookless: By getting rid of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.



*  Filled with 3D weave, that will make the rim stable, safe and durable.



*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.



*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
