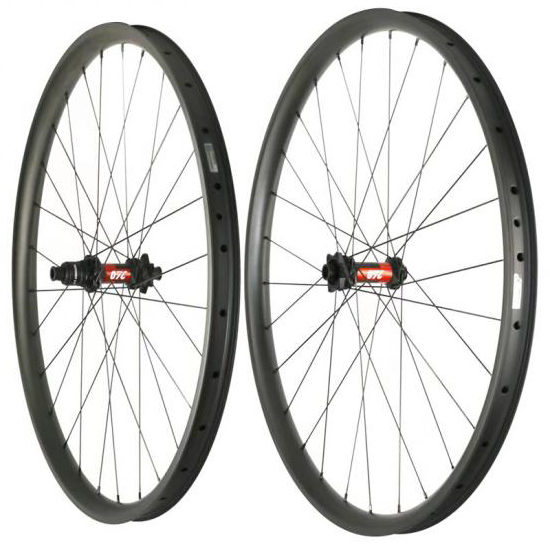

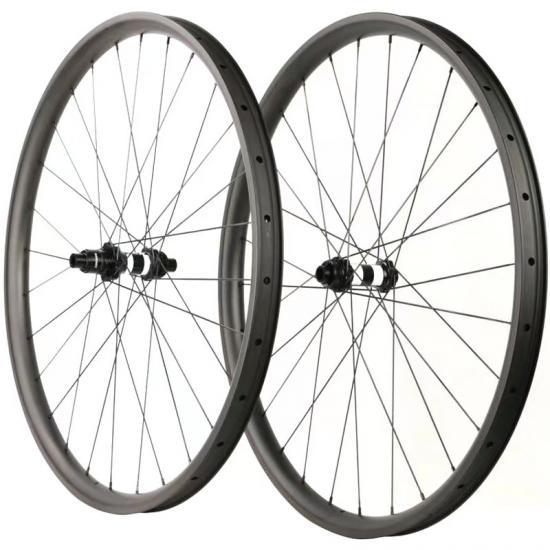

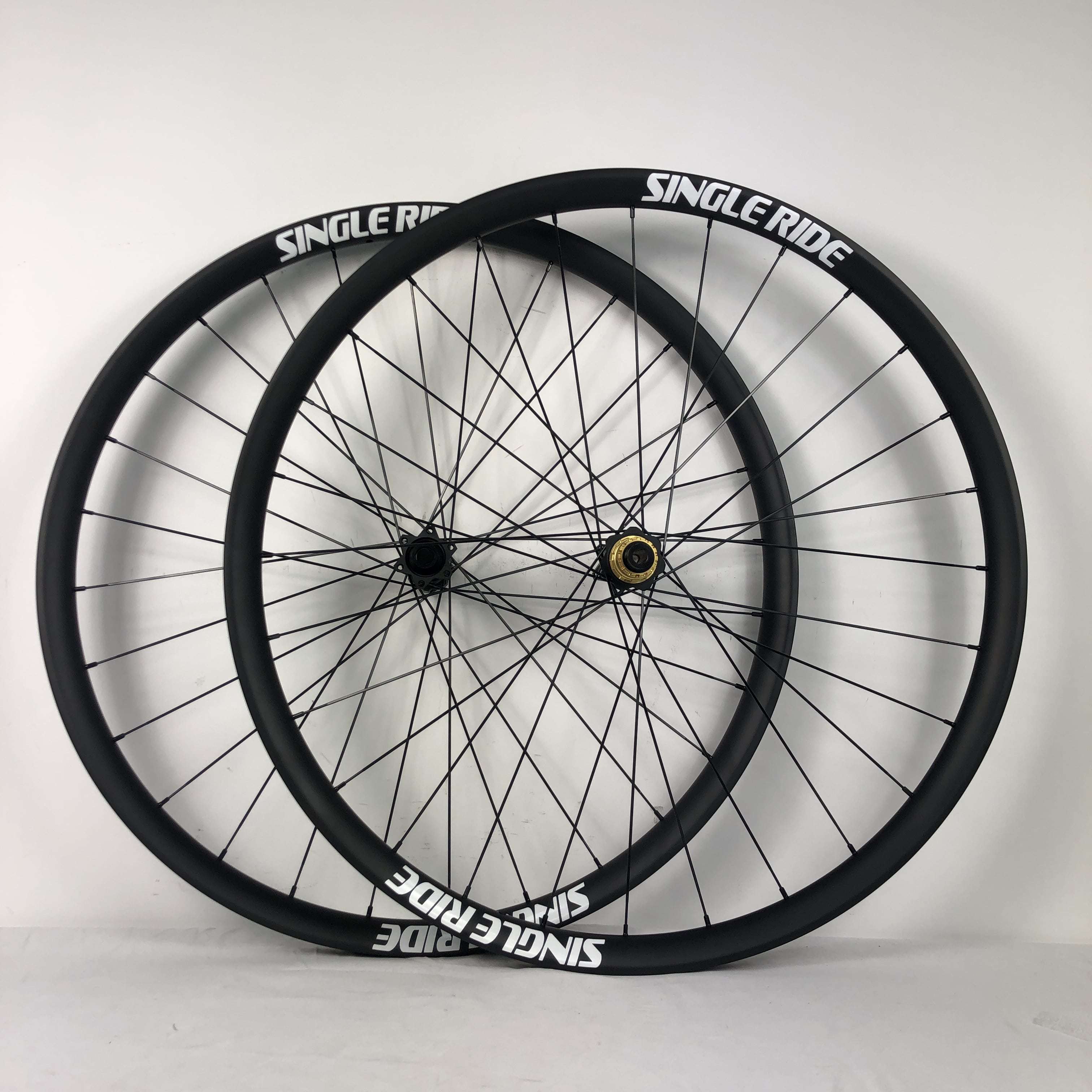

Customized mountain bike carbon wheels mtb wheelset QR/TA quick release thru axle hub pillar psr 1420 sapim cx ray spoke center lock-6 six bolts

Customized DIY carbon mountain bike wheelset mtb wheels with Novatec D411/D412SB or DT swiss 240 EXP/350 hub Pillar/Sapim spokes.
9 Review(s) Sold:16
Have a question?
Price:
USD
$514.28
$598.00
(14% OFF)
    Please select the information you wantX
  • Rim model:
  • Rim Weave:
  • Rim Finish:
  • Hub Size & Holes:
  • Hub color:
  • Spokes:
  • Lock System:
  • Nipples:
  • Cassette body:
Quantity:
-
+
(984 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews(9)

Ps:Please let us to know which carbon weave (UD/3K/12K/3K twill/12K

twill),finish(matt/glossy) you'd like when place your order.If haven't

message we'll just arrange UD/matt of the wheelset for you!

Rim info:

Carbon Weave:UD/3K/12K/3K twill/12K twill

Finish:Matt/Glossy/Painting Matt/Painting Glossy

From option:Tubular means tubular tires,others all are the clincher

tubeless tires,and DH=Downhill version.

besides,24mm~35mm width recommend XC version ride,

35mm~52mm width recommend XC/AM two versions both available


Model size width:outer
/inner		 depth tires      version weight
CW29-2424CT 29er 24mm/19.6mm 24mm 1.25~1.95" XC 250g
CW29-2723CT 29er 27mm/22mm 23mm 1.5~2.2" XC 270g
CW29-3025CT 29er 30mm/25mm 25mm 1.8~2.6" XC 310g
CW29-3030CT 29er 30mm/23.4mm 25mm 1.8~2.5" XC 400g
CW29-3130CT 29er 31mm/25mm 30mm 1.8~2.5" XC 340g
CW29-3327CT 29er 33mm/27mm 27mm 1.95~2.5" XC 370g
CW29-3525CT 29er 35mm/30mm 25mm 2.0~2.55" XC 365g
CW29-3530CT 29er 35mm/30mm 30mm 2.0~2.55" XC/AM 470g
CW29-3630CT 29er 36mm/30mm 30mm 2.0~2.55" XC/AM 400g
CW29-4030CT 29er 40mm/34mm 30mm 2.3~3.0" XC/AM 410g
CW29-4032CT 29er 40mm/31mm 32mm 2.3~3.0" AM/DH 520g
CW29-5025CT 29er 50mm/45mm 25mm 2.7~3.8" AM 520g
CW29-5234CT 29er 52mm/45mm 34mm 2.7~3.8" AM 560g
CW27-2424CT 27.5er 24mm/19.6mm 24mm 1.25~1.95" XC 240g
CW27-2723CT 27.5er 27mm/22mm 23mm 1.5~2.2" XC 255g
CW27-3025CT 27.5er 30mm/25mm 25mm 1.8~2.5" XC 295g
CW27-3327CT 27.5er 33mm/27mm 27mm 1.95~2.5" XC 350g
CW27-3525CT 27.5er 35mm/30mm 25mm 2.0~2.55" XC 350g
CW27-3530CT 27.5er 35mm/30mm 30mm 2.0~2.55" AM 450g
CW27-3630CT 27.5er 35mm/30mm 30mm 2.0~2.55" XC/AM 380g
CW27-4030CT 27.5er 40mm/34mm 30mm 2.3~3.0" XC/AM 390g
CW27-4032CT 27.5er 40mm/31mm 32mm 2.3~3.0" AM/DH 510g
CW27-5025CT 27.5er 50mm/45mm 25mm 2.7~3.8" AM 500g
CW27-5234CT 27.5er 52mm/45mm 34mm 2.7~3.8" AM 540g
CW26-2424CT 26er 24mm/19.6mm 24mm 1.25~1.95" XC 230g
CW26-3025CT 26er 30mm/25mm 25mm 1.8~2.5" XC 280g
CW26-3525CT 26er 35mm/30mm 25mm 2.0~2.55" XC 330g
CW26-4032CT 26er 40mm/31mm 32mm 2.3~3.0" AM/DH 500g
CW29-2723T 29er 27mm/none 23mm 1.5~2.2" XC 310g
CW27-2723T 27.5er 27mm/none 23mm 1.5~2.2" XC 290g

Notes:Ride weight limit:24~27mm outer width 70kg,30~35mm outer width 80kg,36~40mm 90kg,40~52mm outer width 100kg.XC=Cross Country,AM=All Mountain,DH=DownHill ride.

Want to see more rims' specification 29er to click it:

27.5er carbon rim to click it:

26er carbon rim to click it:

29er/27.5er tubular rim to click it:
Wheelset info:

Hub&Axle:

Disc brake with Six bolt/Center lock type quick release (QR)

Novatec D791/792SB,D411/412SB,DT 350s/DT240S hub,

hubs axle size is:front 108x9mm and rear 145X10mm (front

O.L.D=100mm,Rear O.L.D=135mm);

Disc brake with Six bolt/Center lock type quick release (TA)

Novatec D791/792SB,D411/412SB,DT 350s/DT240S hub,

hubs axle size is:front 100x15mm and rear 142X12mm (front

O.L.D=100mm,Rear O.L.D=142mm),

Or: boost hub size:(Front 110X15mm,Rear 148X12mm).

Hub Weight:

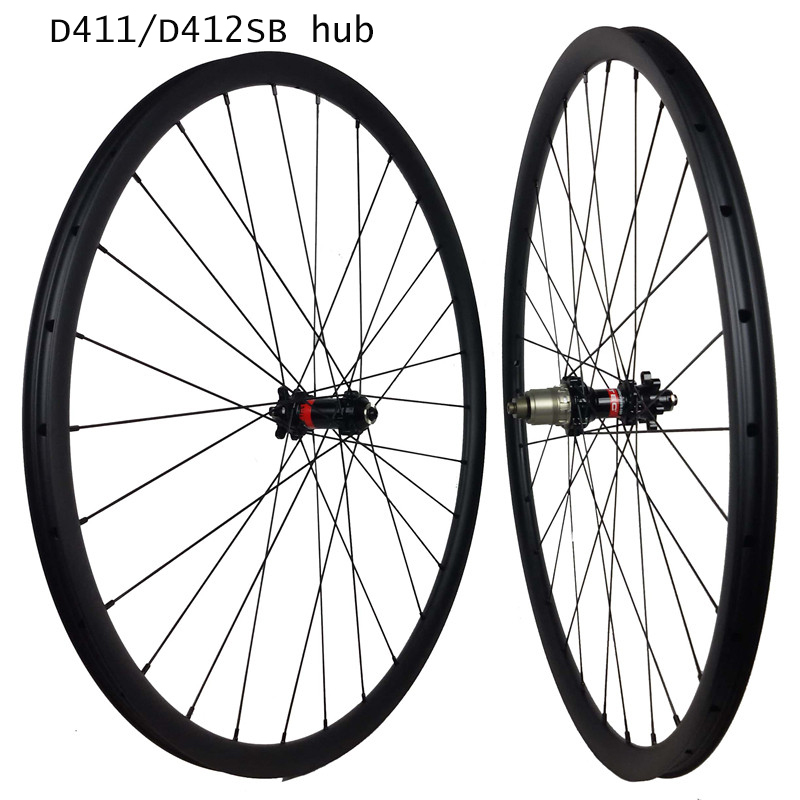

Novatec D791/792SB (F155g,R280g),Novatec D411/412SB (94g,235g) just have 24/24 holes only.

DT Swiss 350s (108g,214g)

DT Swiss 240S hub (108g,265g)

Warranty:2 years

Cassette body:

Shimano 10~11 speed,

Sram 10~11 XD body.

Option hub details:

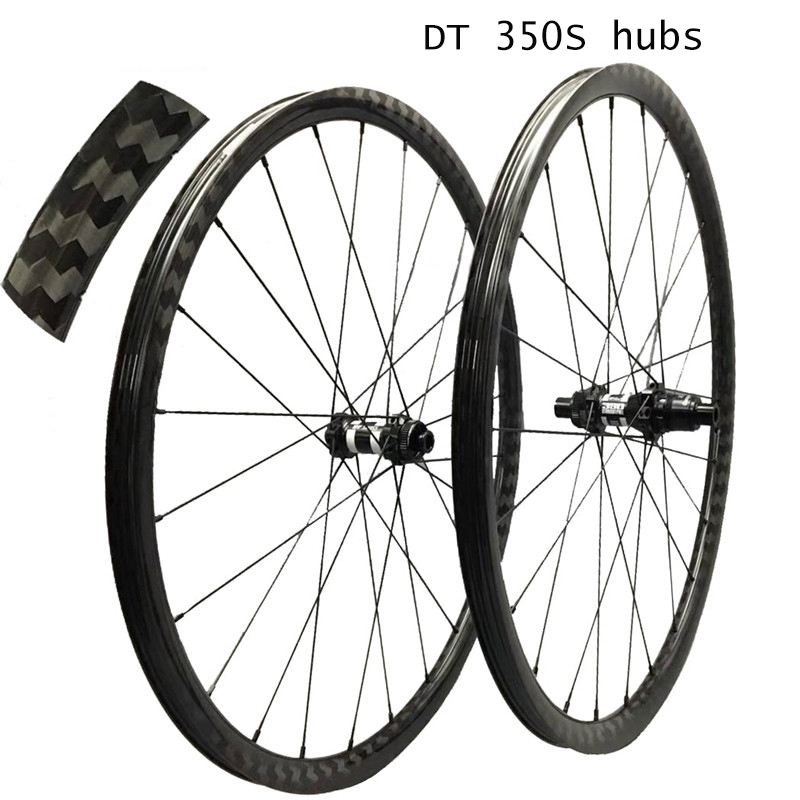

With DT Swiss 350 hubs:

With DT Swiss 240 EXP hubs:

Spokes:

Pillar PSR 1432 6.5g/piece,

Pillar PSR 1420 4.3g/piece,

Sapim CX-Ray 4.3g/piece,

Nipples:

Black Aluminum 0.3g/piece,

Recommendation:



 Max weight limit: 120kg


 Max spoke tension: front: 110kgf   rear:130kgf


 Max tire pressure: 65psi.
