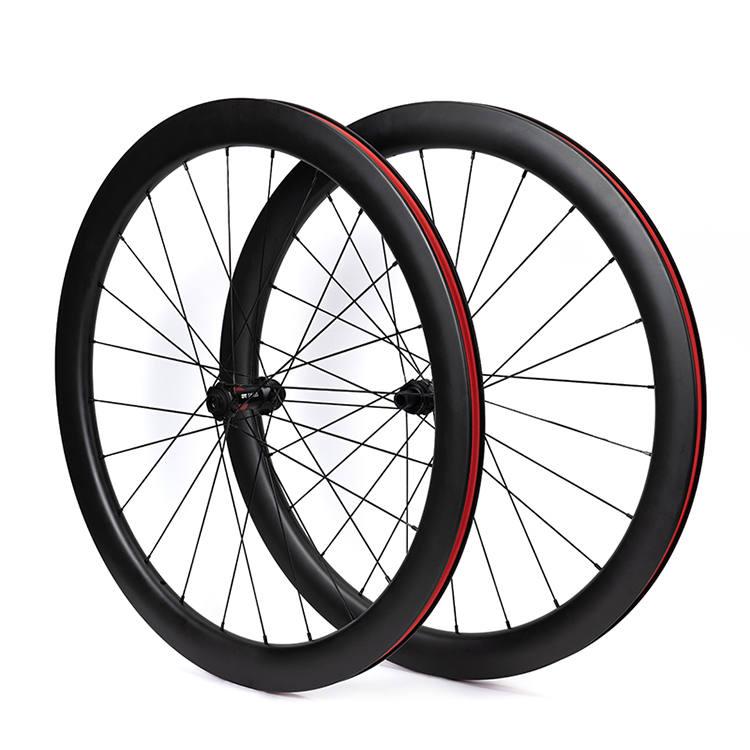

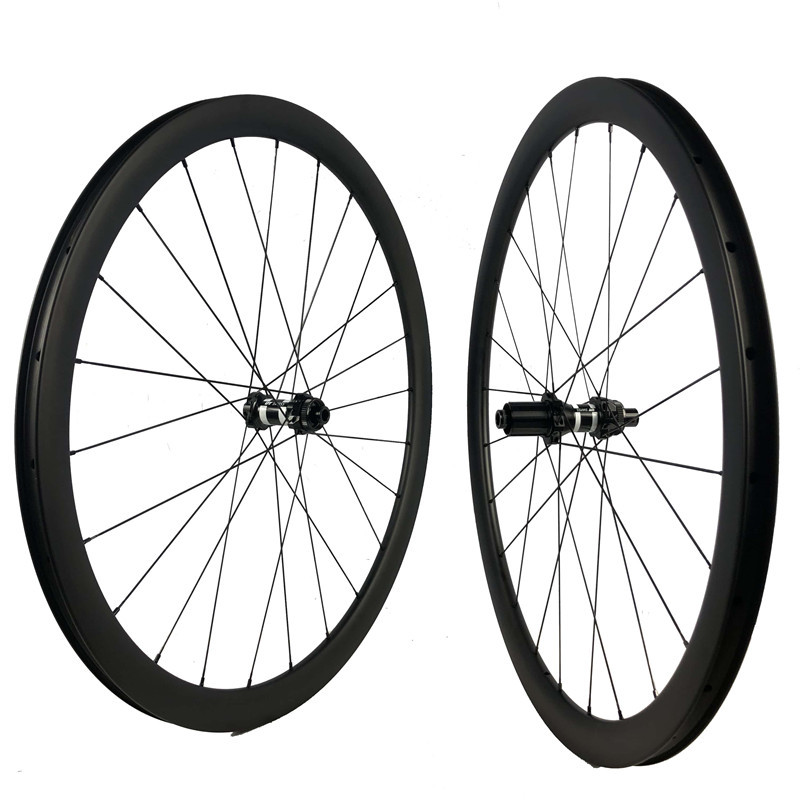

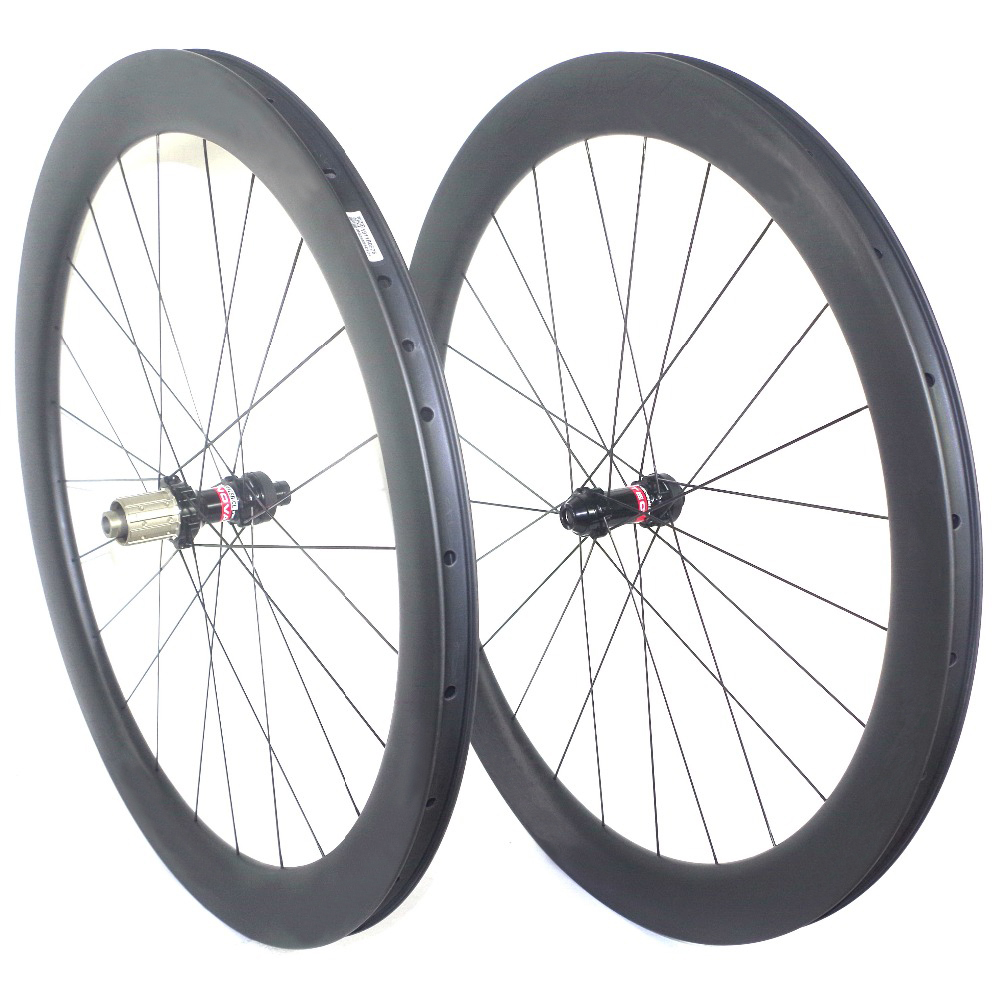

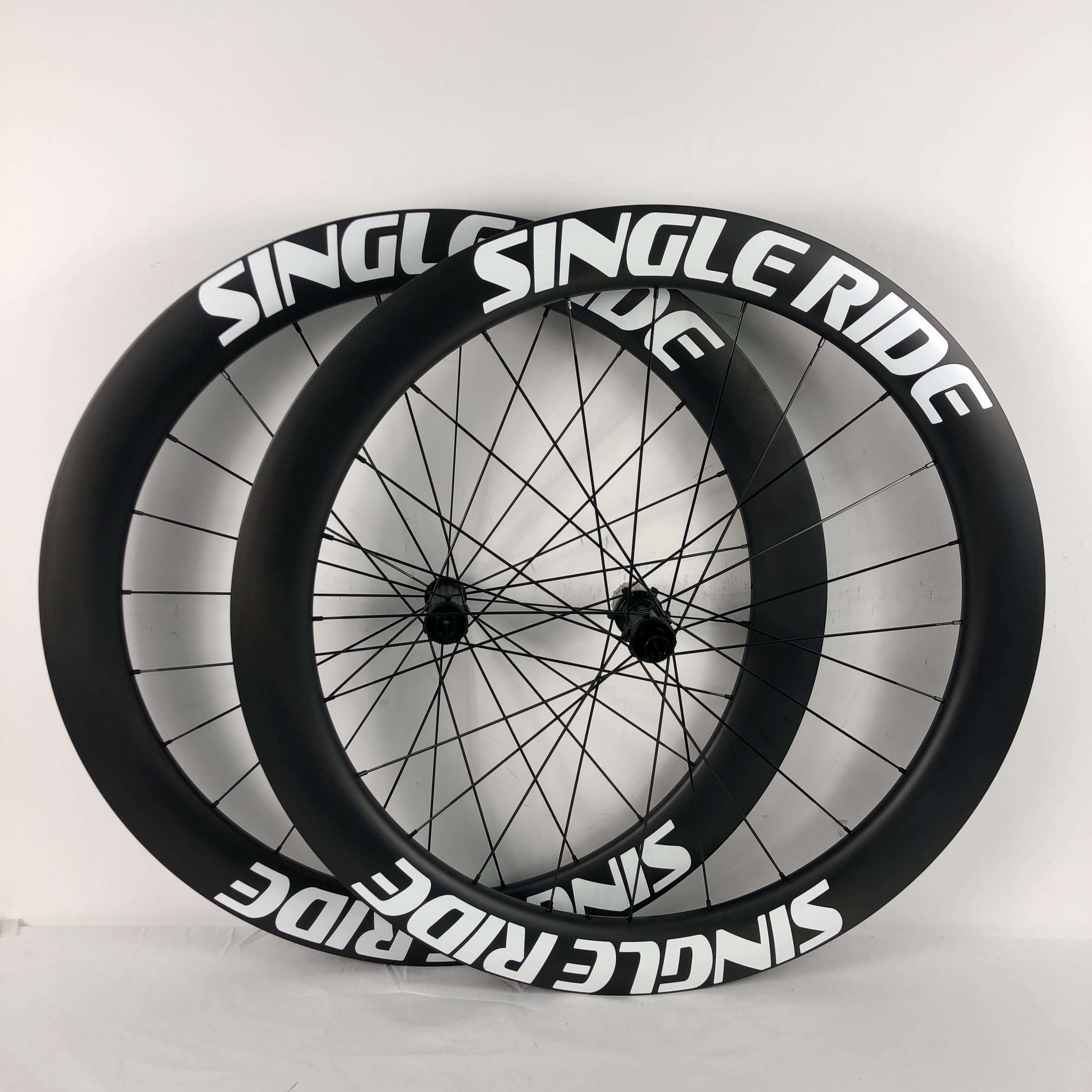

Customized road bike cyclocross bicycle disc brake carbon wheels with Novatec D411 DT swiss 350s/240s hubs pillar PSR 1420 or Sapim CX ray spokes CN n

700C/29er Disc brake hub Novatec D411 DT swiss 350s/240s Spokes Pillar 1420 Sapim CX-ray Nipple CN aluminum Quick Release/thru axle carbon wheelset.
8 Review(s) Sold:12
Have a question?
Price:
USD
$514.28
$598.00
(14% OFF)
    Please select the information you wantX
  • Rim Size:
  • Rim Weave:
  • Rim Finish:
  • Hub Size & Holes:
  • Spokes:
  • Nipples:
  • Cassette body:
Quantity:
-
+
(988 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews(8)

Ps:Please let us to know which carbon weave (UD/3K/12K/3K twill/12K

twill),finish(matt/glossy) you'd like when place your order.If haven't

message we'll just arrange UD/matt of the wheelset for you!

Basic info:


Rim info:
Rim width Rim depth Rim type rim weight
25mm 38mm Tubular 380±15g
25mm 50mm Tubular 410±15g
25mm 60mm Tubular 480±15g
25mm 80mm Tubular 560±15g
25mm 38mm Clincher/Tubeless 480±15g
25mm 50mm Clincher/Tubeless 500±15g
25mm 60mm Clincher/Tubeless 540±15g
25mm 80mm Clincher/Tubeless 630±15g
26mm 35mm Tubeless 440±15g
26mm 45mm Tubeless 460±15g
29mm  30mm Tubeless 400±15g
29mm  35mm Tubeless 420±15g
29mm  40mm Tubeless 440±15g
29mm  45mm Tubeless 460±15g
29mm  50mm Tubeless 480±15g
26mm(Dimple) 45mm Tubular 400±15g
26mm(Dimple) 50mm Tubular 410±15g
26mm(Dimple) 58mm Tubular 450±15g
25mm(Dimple) 80mm Tubular 520±15g
26mm(Dimple) 45mm Clincher/Tubeless 480±15g
26mm(Dimple) 50mm Clincher/Tubeless 490±15g
26mm(Dimple) 58mm Clincher/Tubeless 520±15g
25mm(Dimple) 80mm Clincher  590±15g
23mm(650C) 50mm Tubular 360±15g
23mm(650C) 50mm Clincher 440±15g

Size:700C/650C (from option:"650C 23X50mm tubular",and "650C 23X50mm clincher"

is 650C size,other option all is 700C sizes.)

Weave: UD/3K/12K/3K twill/12K twill

Finish:Matt/Glossy

Hub&Axle:


Novatec D411/D412sb hub,hubs axle size is:front 108x9mm and rear 145X10mm

(Front O.L.D=100mm,Rear O.L.D=130mm);

Disc brake with Six bolt/Center lock type quick release (QR)

front 108x9mm and rear 145X10mm

(Front O.L.D=100mm,Rear O.L.D=135mm);

Or thru axle hubs size is:front 100x12mm and rear 142X12mm (front

O.L.D=100mm,Rear O.L.D=142mm),

DT Swiss 350s/240s hubs size is:

Center lock type,and thru axle hubs size is:front 100x12mm and rear 142X12mm (front

O.L.D=100mm,Rear O.L.D=142mm),

Hub Weight:

Novatec D411 D412SB (Front:93g,Rear:232g)

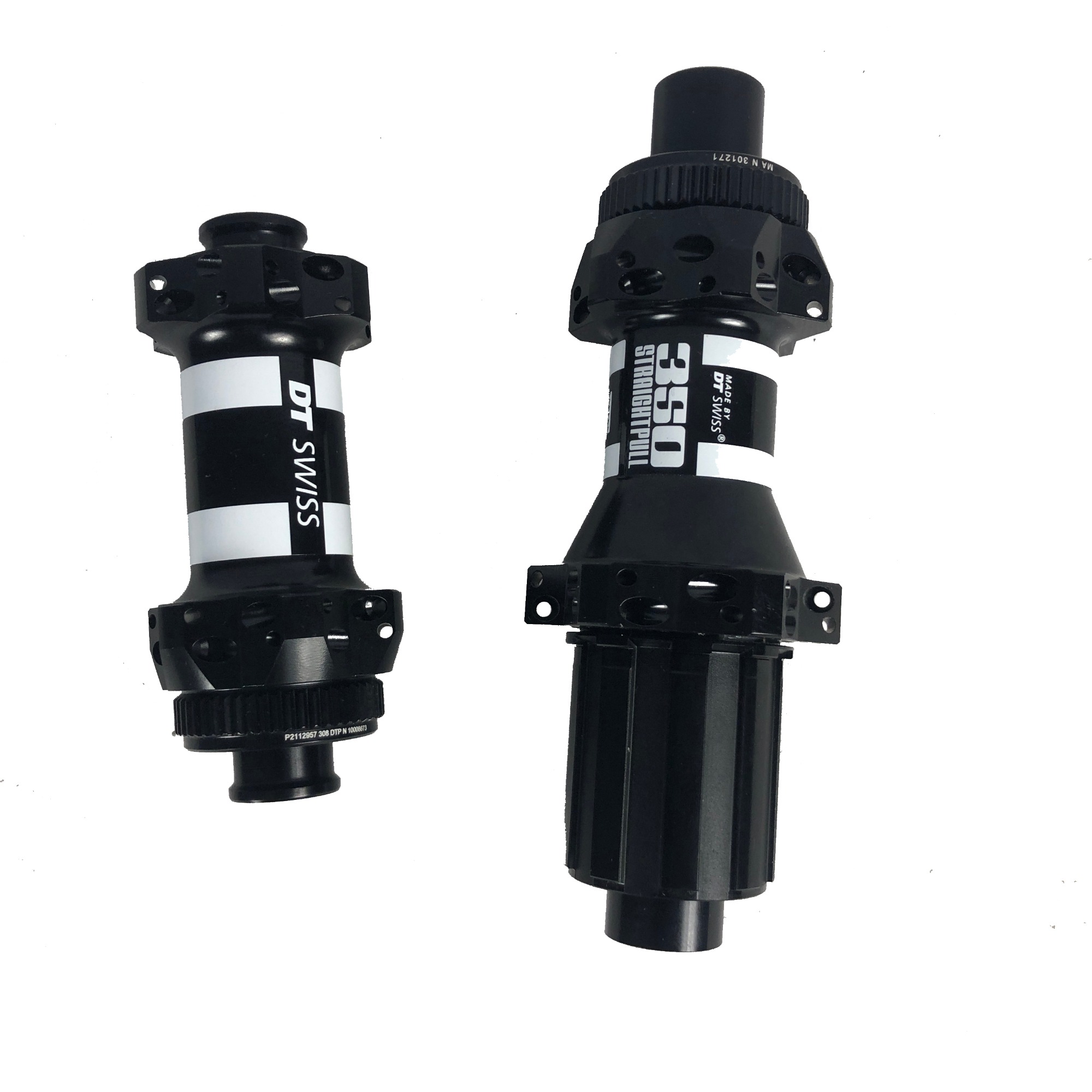

DT Swiss 350s (Front:108g,Rear:214g)

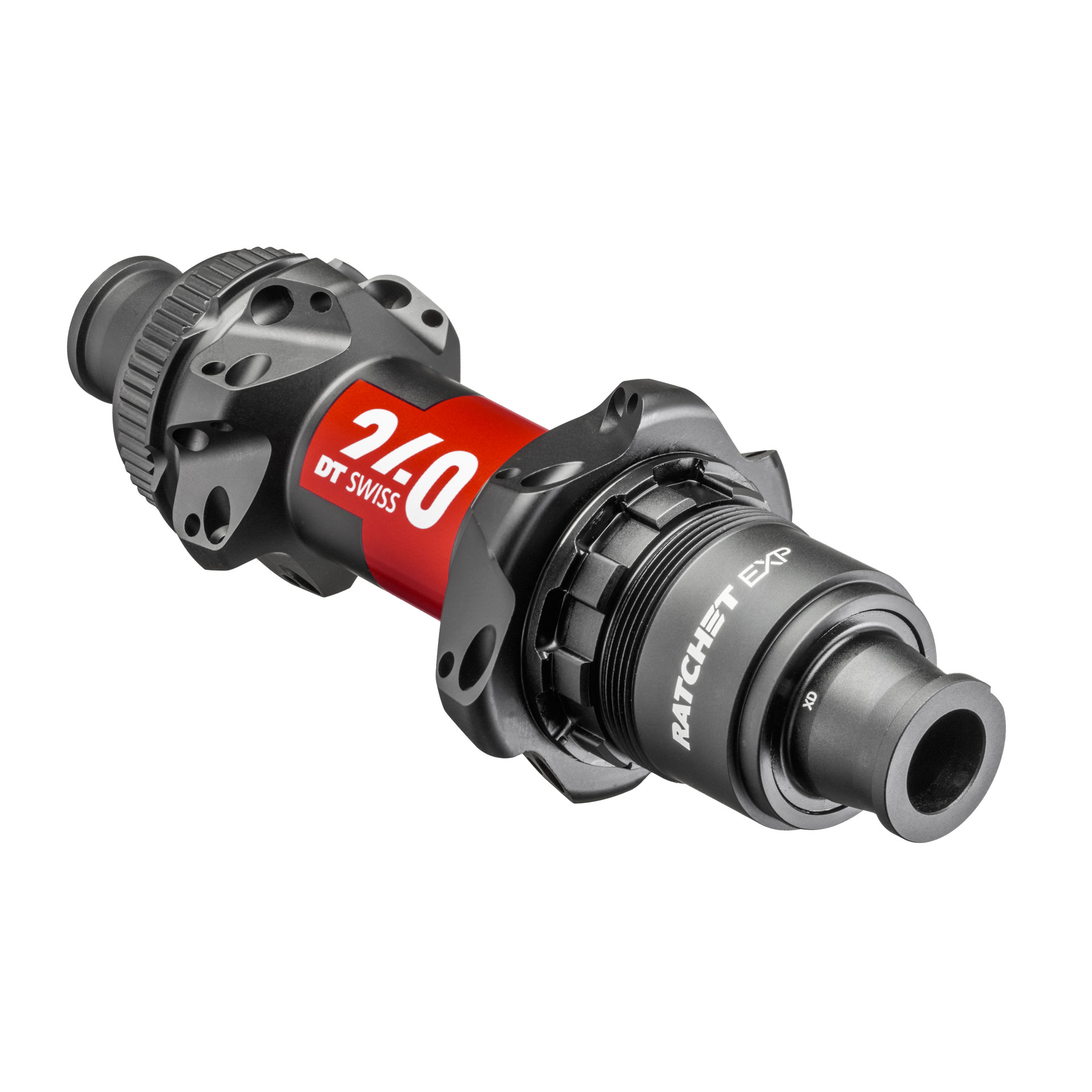

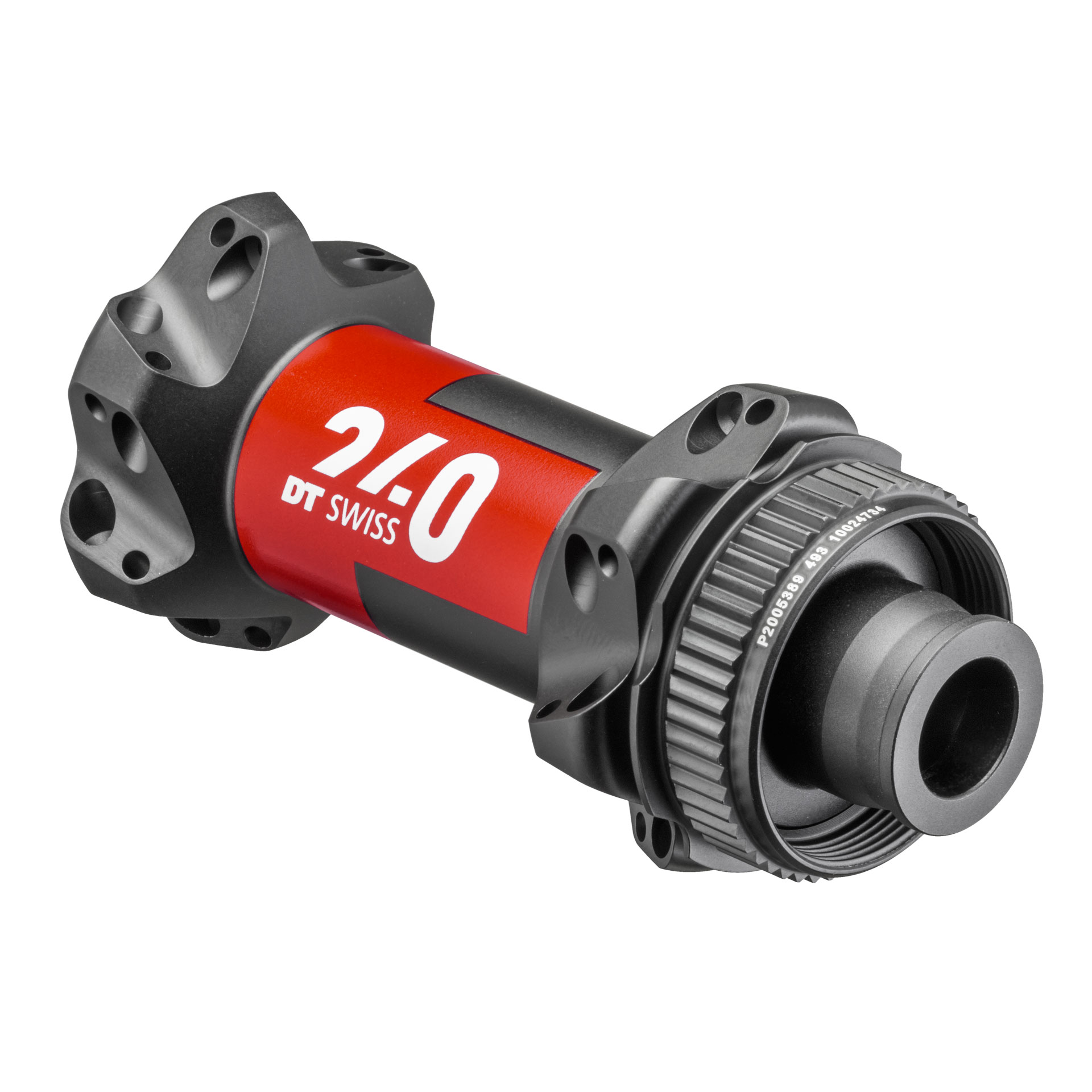

DT Swiss 240S hub (Front:108g,Rear:265g)

Road disc brake:








DT 240s:

Disc brake:


Carbon Weave:UD/3K/12K/3K twill/12K twill

Finish:Matt/Glossy

Warranty:2 years

Cassette body:

Shimano 10~11 speed,

Sram XDR 10~12S.

Spokes:

Pillar PSR 1420 4.3g/piece,

Sapim CX-Ray 4.3g/piece,

Nipples:

Black aluminum 4.3g/pcs.

Recommendation:



 Max weight limit: 100~120kg


 Max spoke tension: front: 110kgf   rear:130kgf


 Max tire pressure: 125psi.
