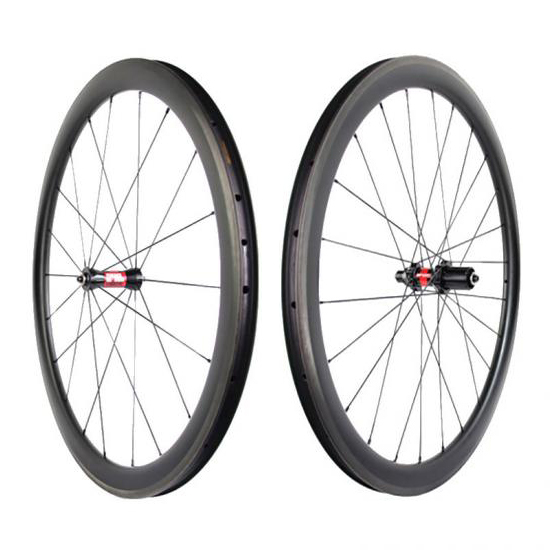

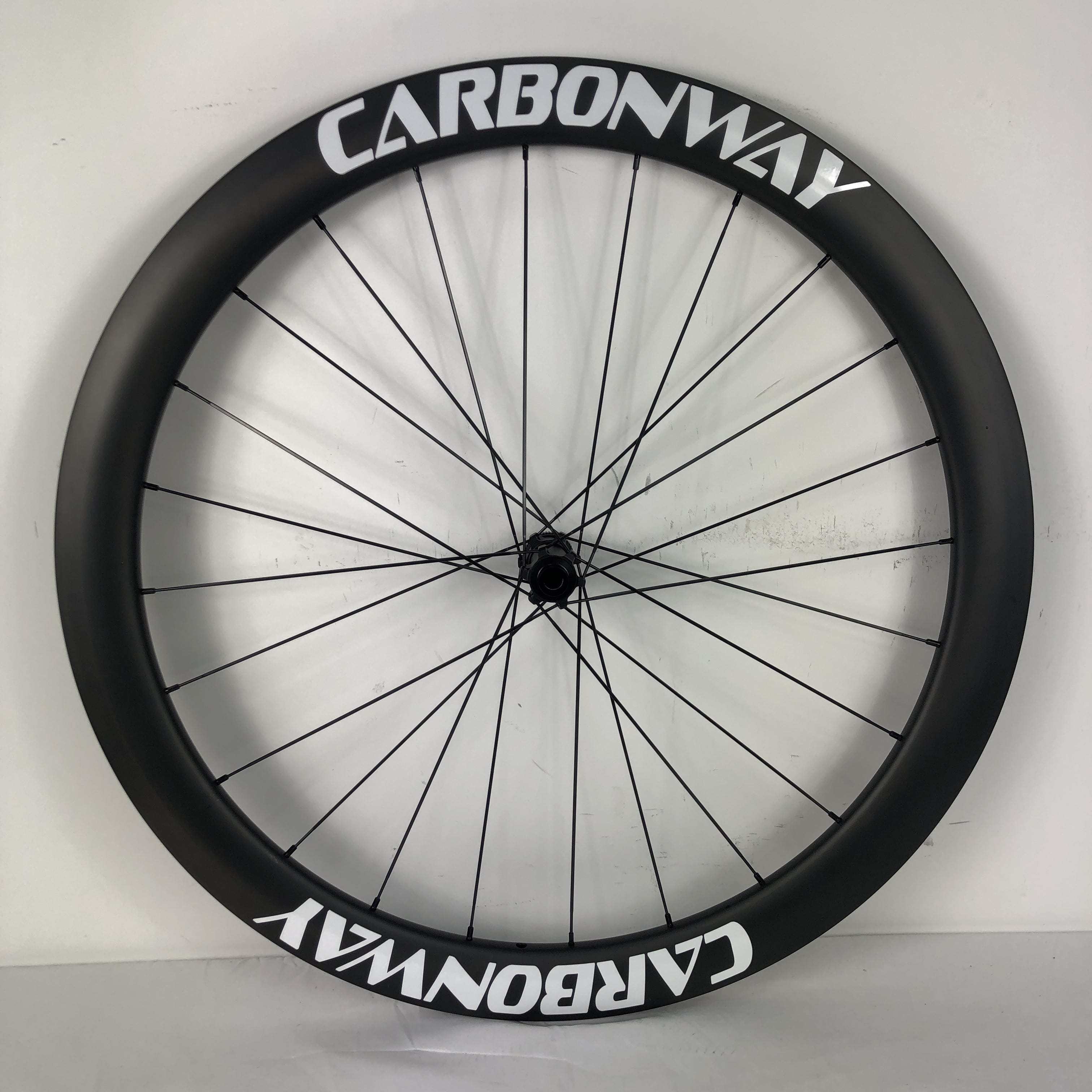

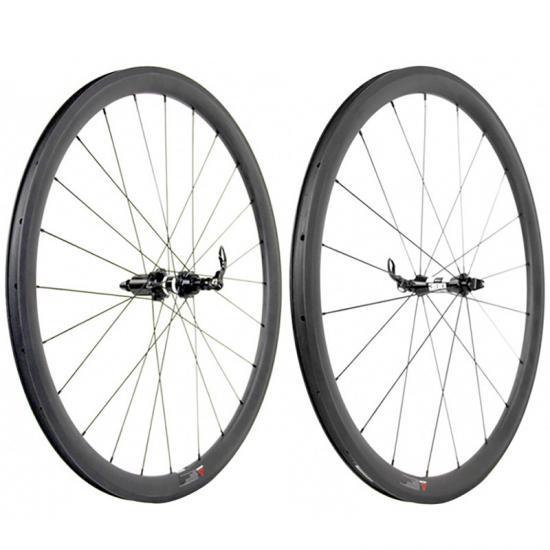

Customized road bike V brake bicycle carbon wheels with DT swiss 350s/240s/180 hubs pillar PSR 1420/Sapim CX ray spokes aluminum nipples

SKU: CW-RW-Customized
700C/650C V brake hub DT swiss 350s/240s/180 Spokes Pillar PSR 1420/Sapim CX-ray Nipple CN Quick Release/Skewer carbon wheelset.
5 (3 Reviews)
4 Sold
$778.00 $688.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Rims Size:
    25mm width 38mm depth clincher
    25mm width 38mm depth tubeless
    25mm width 38mm depth tubular
    25mm width 50mm depth clincher
    25mm width 50mm depth tubeless
    25mm width 50mm depth tubular
    25mm width 60mm depth clincher
    25mm width 60mm depth tubeless
    25mm width 60mm depth tubular
    25mm width 80mm depth clincher
    25mm width 80mm depth tubeless
    25mm width 80mm depth tubular
    26mm width 35mm depth clincher
    26mm width 45mm depth tubueless
    29mm width 30mm depth tubeless
    29mm width 35mm depth tubeless
    29mm width 40mm depth tubeless
    29mm width 45mm depth tubeless
    29mm width 50mm depth tubeless
    26mm width 45mm dimple clincher
    26mm width 45mm dimple tubeless
    26mm width 50mm dimple clincher
    26mm width 50mm dimple tubular
    26mm width 50mm dimple tubeless
    26mm width 58mm dimple clincher
    26mm width 58mm dimple tubular
    26mm width 58mm dimple tubeless
    25mm width 80mm dimple clincher
    25mm width 80mm dimple tubular
    23mm width 38mm clincher alu brake
    23mm width 50mm clincher alu brake
    23mm width 60mm clincher alu brake
    23mm width 80mm clincher alu brake
    650C 23mm wide 50mm deep tubular
    650C 23mm wide 50mm deep clincher
  • Rim Weave:
    UD
    3K
    12K
    3K twill
    12K twill
  • Rim Finish:
    Matt
    Glossy
    50% Matt
    Paintless Matt
    Paintless Glossy
  • Hub Size & Holes:
    DT 350 20/24 Holes
    DT 240 EXP 20/24 Holes
    DT180 20/24H
  • Axle size:
    100/130mm QR
  • Spoke Holes:
    20/24
  • Nipples:
    Black Aluminum 0.3g/pcs
  • Cassette body:
    Shimano 11s
    Campagnolo 11s
    Sram XDR 12s
  • Spokes:
    Pillar PSR 1420 4.3g/pcs
    Sapim CX-Ray 4.3g/pcs
Quantity
-
+
  • Customized road bike V brake bicycle carbon wheels with DT swiss 350s/240s/180 hubs pillar PSR 1420/Sapim CX ray spokes aluminum nipples
  • Customized road bike V brake bicycle carbon wheels with DT swiss 350s/240s/180 hubs pillar PSR 1420/Sapim CX ray spokes aluminum nipples
  • Customized road bike V brake bicycle carbon wheels with DT swiss 350s/240s/180 hubs pillar PSR 1420/Sapim CX ray spokes aluminum nipples
  • Customized road bike V brake bicycle carbon wheels with DT swiss 350s/240s/180 hubs pillar PSR 1420/Sapim CX ray spokes aluminum nipples
1/1
  • Customized road bike V brake bicycle carbon wheels with DT swiss 350s/240s/180 hubs pillar PSR 1420/Sapim CX ray spokes aluminum nipples
  • Customized road bike V brake bicycle carbon wheels with DT swiss 350s/240s/180 hubs pillar PSR 1420/Sapim CX ray spokes aluminum nipples
  • Description

Ps:Please let us to know which carbon weave (UD/3K/12K/3K twill/12K

twill),finish(matt/glossy) you'd like when place your order.If haven't

message we'll just arrange UD/matt of the wheelset for you!

Basic info:

Rim info:
Rim width Rim depth Rim type rim weight
25mm 38mm Tubular 380±15g
25mm 50mm Tubular 410±15g
25mm 60mm Tubular 480±15g
25mm 80mm Tubular 560±15g
25mm 38mm Clincher/Tubeless 480±15g
25mm 50mm Clincher/Tubeless 500±15g
25mm 60mm Clincher/Tubeless 540±15g
25mm 80mm Clincher/Tubeless 630±15g
26mm 35mm Tubeless 440±15g
26mm 45mm Tubeless 460±15g
29mm  30mm Tubeless 400±15g
29mm  35mm Tubeless 420±15g
29mm  40mm Tubeless 440±15g
29mm  45mm Tubeless 460±15g
29mm  50mm Tubeless 480±15g
26mm(Dimple) 45mm Tubular 400±15g
26mm(Dimple) 50mm Tubular 410±15g
26mm(Dimple) 58mm Tubular 450±15g
25mm(Dimple) 80mm Tubular 520±15g
26mm(Dimple) 45mm Clincher/Tubeless 480±15g
26mm(Dimple) 50mm Clincher/Tubeless 490±15g
26mm(Dimple) 58mm Clincher/Tubeless 520±15g
25mm(Dimple) 80mm Clincher  590±15g
23mm(alu brake) 38mm Clincher  510±15g
23mm(alu brake) 50mm Clincher  540±15g
23mm(alu brake) 60mm Clincher  590±15g
23mm(alu brake) 60mm Clincher  750±15g
23mm(650C) 50mm Tubular 360±15g
23mm(650C) 50mm Clincher 440±15g

Size:700C/650C (from option:"650C 23X50mm tubular",and "650C 23X50mm clincher"

is 650C size,other option all is 700C sizes.)

Weave: UD/3K/12K/3K twill/12K twill

Finish:Matt/Glossy

Hub&Axle:

V brake(rim brake) with quick release/Skewers (QR)

DT 350s/DT240S hub,hubs axle size is:front 108x9mm and rear 145X10mm

(Front O.L.D=100mm,Rear O.L.D=130mm);

Disc brake with Six bolt/Center lock type quick release (QR)

front 108x9mm and rear 145X10mm

(Front O.L.D=100mm,Rear O.L.D=135mm);

Or thru axle hubs size is:front 100x15mm and rear 142X12mm (front

O.L.D=100mm,Rear O.L.D=142mm),

Hub Weight:

DT Swiss 350s (Front:108g,Rear:214g)

DT Swiss 240S hub (Front:108g,Rear:265g)

DT Swill 350s:












Carbon Weave:UD/3K/12K/3K twill/12K twill

Finish:Matt/Glossy

Warranty:2 years

Cassette body:

Shimano 10~11 speed,

Campagnolo 10~11 speed,

Sram 10~11 XD body.

Spokes:

Pillar PSR 1432 6.5g/piece,

Pillar PSR 1420 4.3g/piece,

Sapim CX-Ray 4.3g/piece,

Nipples:

Pillar Aluminum 0.3g/piece,

CN Aluminum 0.3g/piece.

Recommendation:



 Max weight limit: 100~120kg


 Max spoke tension: front: 110kgf   rear:130kgf


 Max tire pressure: 125psi.

*  Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.
