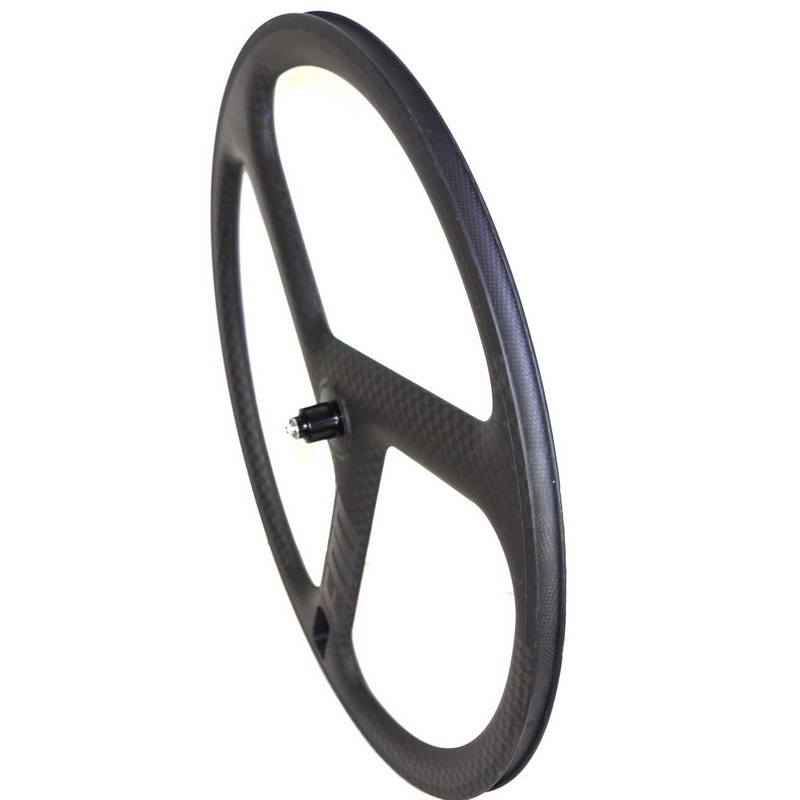

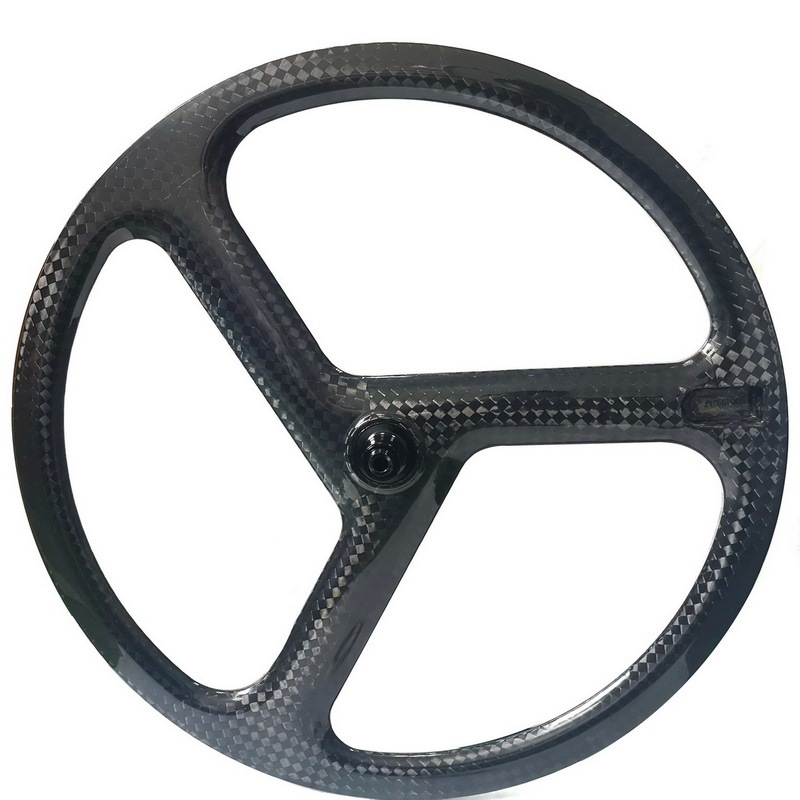

|CW23-40C| carbon tri spoke bike wheel 23mm wide 40mm depth clincher tire front rear wheel V brake/disc brake road racing/track fixed gear wheelset

700C 790g~950g external 23mm internal 16mm depth 40mm clincher tires road bike V brake/disc brake cyclocross/track fixed gear single speed 3/tri/three spoke bike wheels.
Price:
USD
$342.28
$398.00
(14% OFF)
    Please select the information you wantX
  • Weave:
  • Finish:
  • Rim type:
  • Applicable Bicycle & Location & Cassette:
Quantity:
-
+
(1000 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews
Basic info:

Size:700C

Rim Width:23mm

Rim Depth: 40mm

Material:Toray 100% full carbon T700

Spoke:tri/3 spoke

Hub:Novatec

Tire Profile:Clincher

Carbon Weave:UD/3K/12K/3K twill/12K twill

Finish:Matt/Glossy/50%Matt/Paintless Matt/Paintless Glossy

Warranty:2 years

Weight:


* Clincher:


790±25g(front-tubular) 930±25g(Rear-tubular);



850g±30g,Rear:950g±30g (Fixed gear).

Application: road bike/fixed gear bike are available

Standard:EN standard

PS:

Road bike V brake with Powerway quick release hubs axle size is:front 108x9mm and rear 140X10mm (front

O.L.D=100mm,Rear O.L.D=130mm);

Disc brake with Six bolt type Novatec quick release hubs axle size is:front 108x9mm and rear 145X10mm (front

O.L.D=100mm,Rear O.L.D=135mm);

 Fixed gear with Novatec hub= Front O.L.D=100mm,Rear O.L.D=120mm.

Recommendation:

Max weight limit: 120kg

Max tire pressure: 135psi


Feature:

  • Clinhcer/Tubular designed: This function means you can install clincher/Tubular tires.

Tech improvements:

* 700C 23mm width 40mm depth carbon Tri spoke road bike/fixed gear wheels has excellent performances,it for advanced aerodynamics manufacture.It is ideally suited for racing ride.

*  Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.



*  Filled with 3D weave, that will make the rim stable, safe and durable.



*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.



*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
