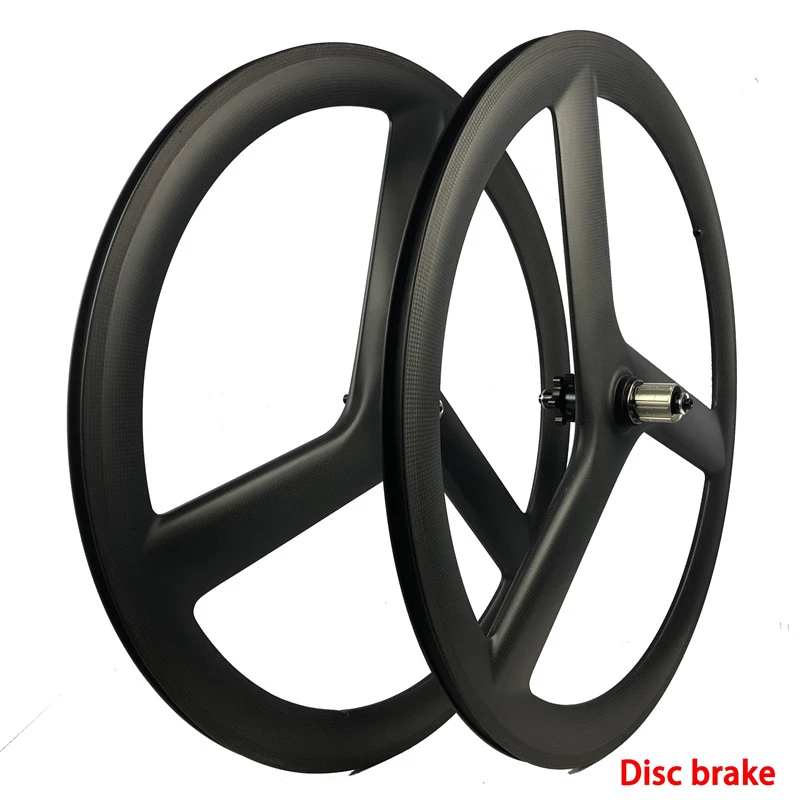

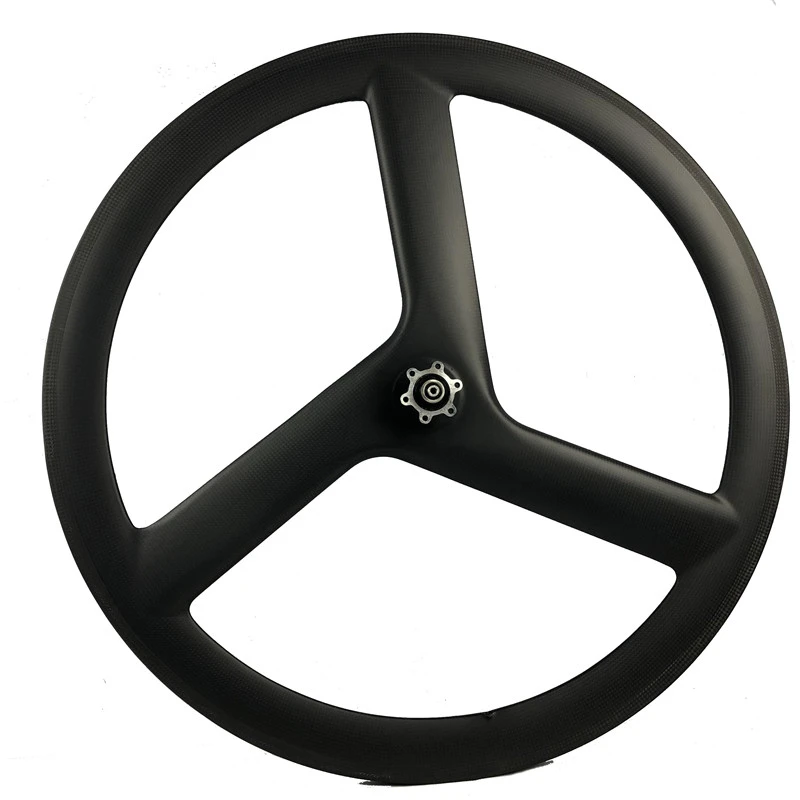

|CW23-50C/T-3S|carbon tri spoke bike wheel 23mm wide front 700C road rear tubular wheel bicycle 3 spokes fixed gear track bike clincher or disc brake

700C 870g~1180g external 23mm Clincher/Tubular tire road bike V brake/Disc brake/fixed gear 3 spoke carbon wheels.
(10% OFF)
    Please select the information you wantX
  • Weave:
  • Finish:
  • Rim type:
  • Applicable Bicycle & Location & Cassette:
(993 available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews(2)
Basic info:


Rim Width:23mm

Rim Depth: 50mm

Material:Toray 100% full carbon T700

Spoke:tri/3 spoke


Tire Profile:Tubular/Clincher

Carbon Weave:UD/3K/12K/3K twill/12K twill

Finish:Matt/Glossy/Paintless Matt/Paintless Glossy

Warranty:2 years


* Tubular:


870±25g(front-tubular) 950±25g(Rear-tubular);

960±25g(front-clincher) 1060±25g(Rear-clincher);

* Clincher:

Front 1000g±30,Rear:1080g±30g,(Road)Front;

1120g±30g,Rear:1180g±30g (Fixed gear).

Application: road bike/fixed gear bike are available

Standard:EN standard


Road bike V brake with Powerway quick release hubs axle size is:front 108x9mm and rear 140X10mm (front

O.L.D=100mm,Rear O.L.D=130mm);

Disc brake with Six bolt type Novatec quick release hubs axle size is:front 108x9mm and rear 145X10mm (front

O.L.D=100mm,Rear O.L.D=135mm);

 Fixed gear with Novatec hub= Front O.L.D=100mm,Rear O.L.D=120mm.


Max weight limit: 120kg

Max tire pressure: 135psi


  • Clinhcer/Tubular designed: This function means you can install clincher/Tubular tires.

Tech improvements:

* 700C 23mm width 60mm depth carbon Tri spoke road bike/fixed gear wheels has excellent performances,it for advanced aerodynamics manufacture.It is ideally suited for racing ride.

*  Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.


*  Filled with 3D weave, that will make the rim stable, safe and durable.


*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.


*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
