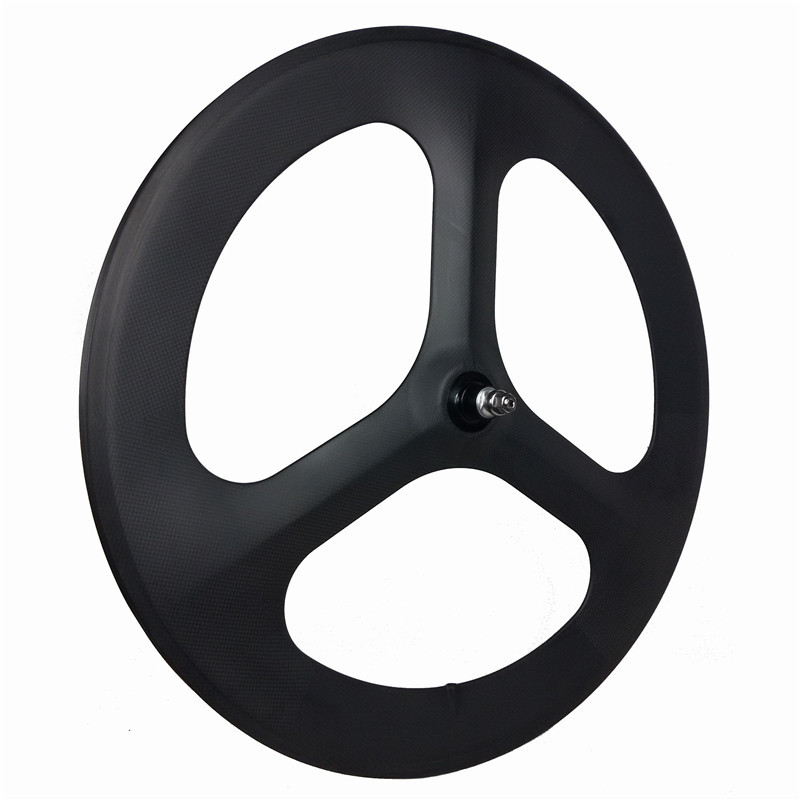

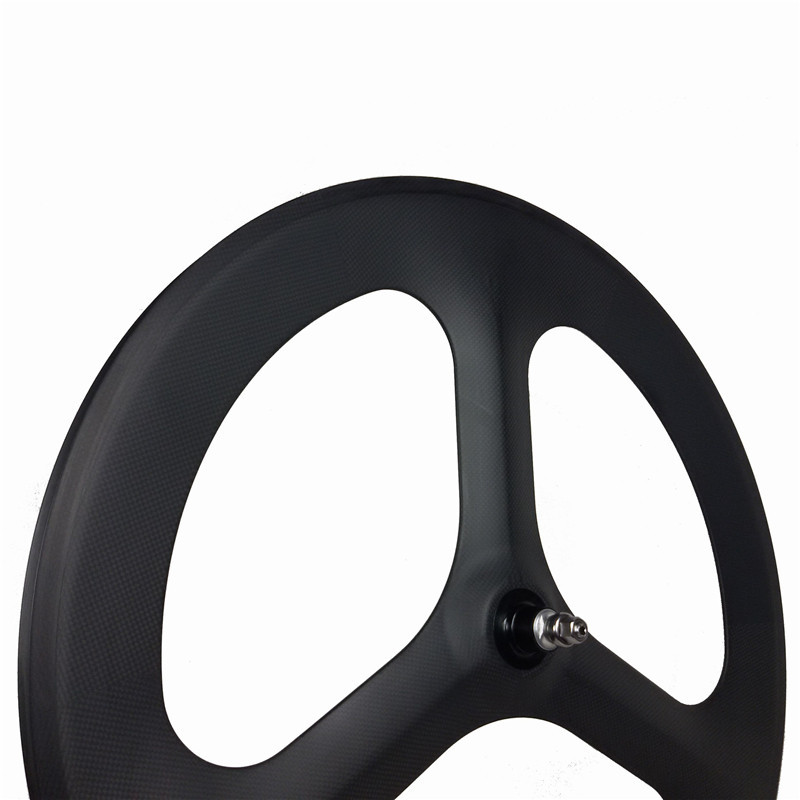

|CW23-56C/T-3S|carbon tri spoke bike wheel 23mm wide 56mm depth front 700C road rear tubular wheel bicycle tri spokes three fixed gear track bike

700C 830g~1050g external 23mm internal 17mm depth 56mm tubular/clincher road bike V brake/disc brake cyclocross/track fixed gear single speed starfish shape designed 3/three/tri spoke bike wheels.
(14% OFF)
    Please select the information you wantX
  • Weave:
  • Finish:
  • Rim type:
  • Applicable Bicycle & Location & Cassette:
(1000 available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews
Basic info:


Rim Width:23mm

Rim Depth: 56mm

Material:Toray 100% full carbon T700

Spoke:tri/3 spoke


Tire Profile:Clincher/Tubular

Carbon Weave:UD/3K/12K/3K twill/12K twill

Finish:Matt/Glossy/Paintless Matt/Paintless Glossy

Warranty:2 years


* Tubular:


830±25g(front-tubular) 940±25g(Rear-tubular);

880±25g(front-clincher) 960±25g(Rear-clincher);

* Clincher:

Front 950g±30,Rear:1030g±30g,(Road)

Front 980g±30g,Rear:1050g±30g (Fixed gear).

Application: road bike(V brake)/fixed gear bike are available

Standard:EN standard


Road bike V brake with Powerway quick release hubs axle size is:front 108x9mm and rear 140X10mm (front

O.L.D=100mm,Rear O.L.D=130mm);

 Fixed gear with Novatec hub= Front O.L.D=100mm,Rear O.L.D=120mm.


Max weight limit: 120kg

Max tire pressure: 135psi


  • Clinhcer/Tubular designed: This function means you can install clincher/Tubular tires.

Tech improvements:

* 700C 23mm width 56mm depth carbon Tri spoke road bike/fixed gear wheels has excellent performances,it for advanced aerodynamics manufacture.It is ideally suited for racing ride.

*  Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.


*  Filled with 3D weave, that will make the rim stable, safe and durable.


*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.


*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
