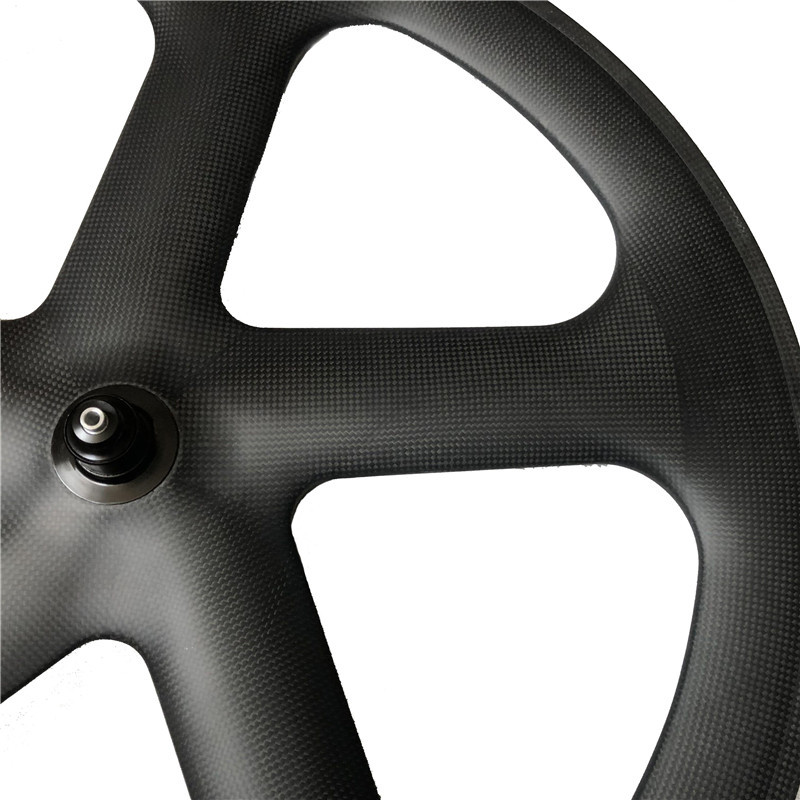

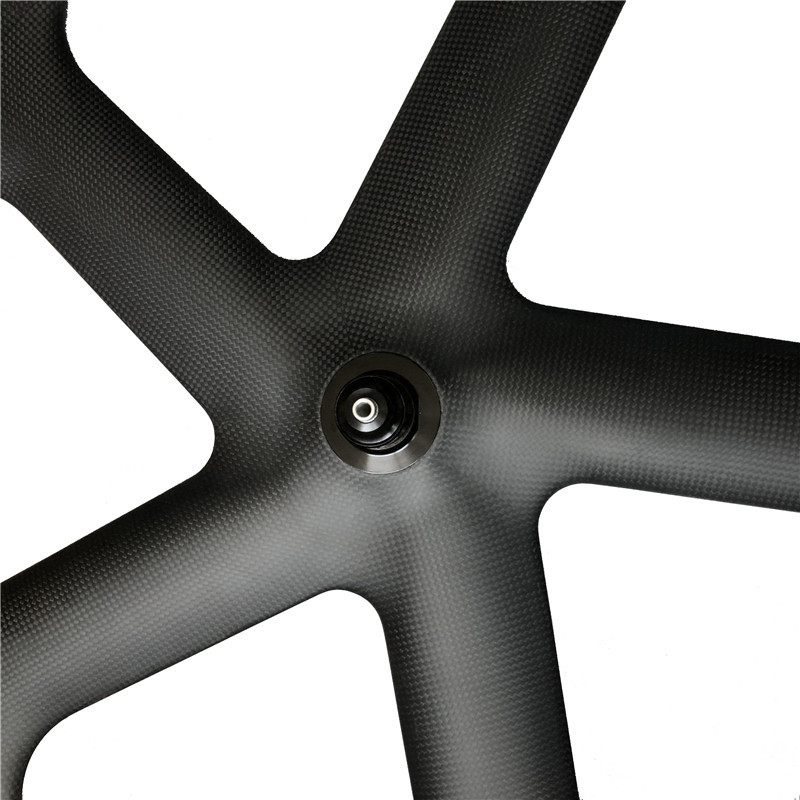

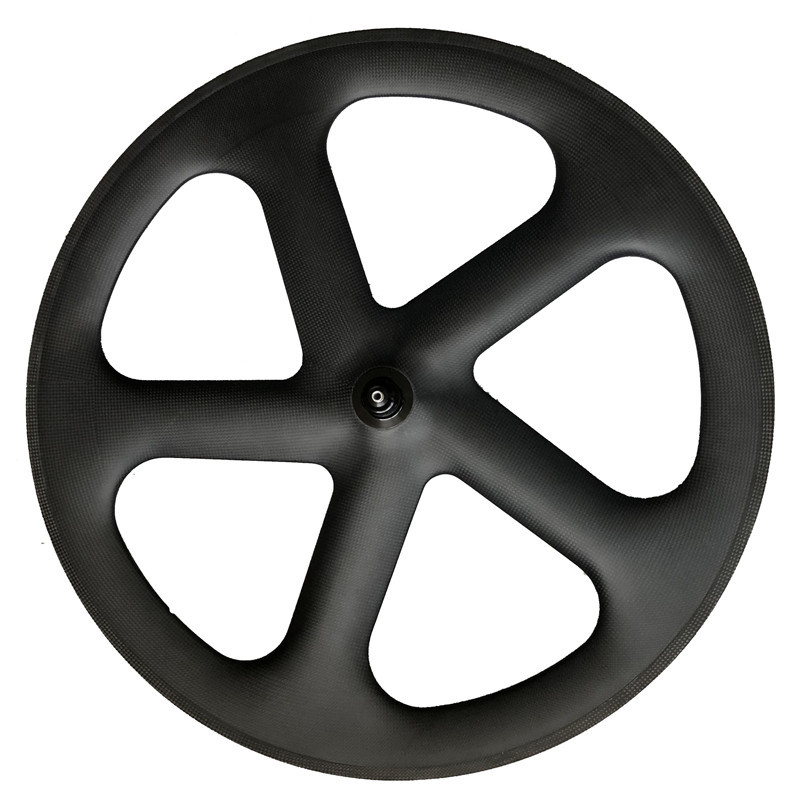

Name: |CW24-56CT/T-5S|Carbon bike wheels five spoke one piece model 24mm width 56mm depth clincher/tubular tire 700C triathlon/road v brake/disc brake
Brand: Cyclingwheel
SKU: CW24-56CT/T-5S
Price: 478.00 USD
Availability: InStock
Rating: 0 (0 reviews)

Your position: Home / Spoke&Disc / 5 spoke

facebook
twitter
pinterest
vk
linkedin google digg reddit stumbleupon delicious

PDF Format

Price:

$478.00

~~$526.00~~

Please select the information you wantX

Weave:
Finish:
Rim type:
Applicable Bicycle & Location & Cassette:
Ships From:

Quantity:

Shipping Cost:

Description
Reviews

Basic info:

Size:700C

Rim Width:24mm

Rim Depth: 56mm

Material:Toray 100% full carbon T700&T800

Spoke:Five/5 spoke

Hub:Novatec

Tire Profile:Tubular/Clincher

Carbon Weave:UD/3K/12K/3K twill/12K twill

Finish:Matt/Glossy

Warranty:2 years

Weight:

Tubular:

830±25g(front-road) 940±25g(Rear-road)

900±25g(front-fixed gear) 960±25g(Rear-fixed gear)

Clincher:

940g±30(Front road),1050g±30g(rear road)

1010g±30g(Front fixed gear),1070g±30g (Rear Fixed gear)

Logo painting:None,OEM logos or custom logos both available

Application: road bike/fixed gear bike are available

Standard:EN standard

PS:

Road bike V brake with Powerway quick release hubs axle size is:front 108x9mm and rear 140X10mm (front

O.L.D=100mm,Rear O.L.D=130mm);

Fixed gear with Novatec hub= Front O.L.D=100mm,Rear O.L.D=120mm.

PS:QR= quick release Powerway hubs size:front 108x9mm and rear 145X10mm (front O.L.D=100mm,Rear O.L.D=135mm)

Fixed gear hub= Front O.L.D=100mm,Rear O.L.D=120mm.

Recommendation:

Max weight limit: 120kg

Max tire pressure: 135psi

Feature:

Clinhcer tubeless/Tubular designed: This function means you can install clincher tubeless/Tubular tires.

Tech improvements:

* 700C 24mm width 56mm depth carbon five/5 spoke road bike/fixed gear wheels has excellent performances,it for advanced aerodynamics manufacture.It is ideally suited for racing ride.

* Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.

* Filled with 3D weave, that will make the rim stable, safe and durable.

* Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.

* 250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
