Basic info:
- Item No.: CW24-80CT
-
- Material: Toray T700+T1000 Carbon Fiber
-
- Rim Type: Hookless clincher tubeless compatible
-
- Warranty: 3 Years
-
- Standard: EN Standard
-
- Brake system:Disc brake

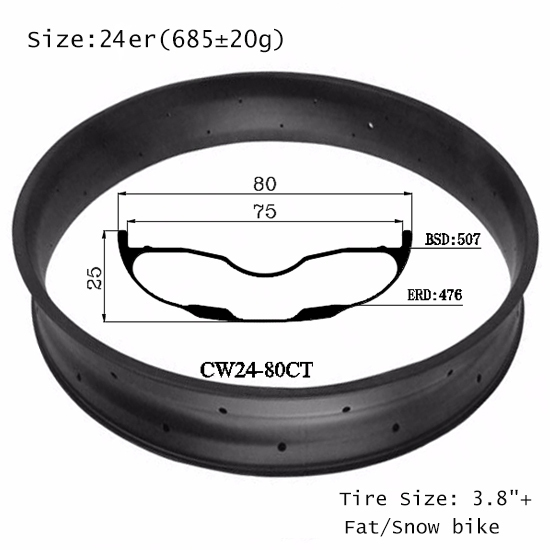

Dimension:
-
Size: 24er
BSD: 507mm (ISO Standard)
-
ERD: 476mm (don't inclued nipples hed)
External Width: 80mm
-
Spoke Hole Dia.: 4.5mm / 2.5mm
Depth:25mm
Internal Width:75mm(clincher tubeless compatible)
Valve Hole Dia.: 6.5mm
Hole count: 28/32/36
Assembly Hole Dia.: 8.5mm
Weight: 685±20g
-
Recommendation data:
Tire Size: 3.8"
-
- Max weight limit: 120kg
-
-
Max spoke tension: 150kgf
Max tire pressure: 25psi
Application:
Appearance:
Weave: UD/3K/12K/3K twill/12K twill
Finish: Matte / Glossy
Feature:
Tech improvements:
* 24er 80mm width 25mm depth carbon fat rims has excellent performances with the snow ground ride,it for advanced aerodynamics manufacture.It is ideally suited for racing xc ride.
* Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.
* Filled with 3D weave, that will make the rim stable, safe and durable.
* Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.
* 250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
