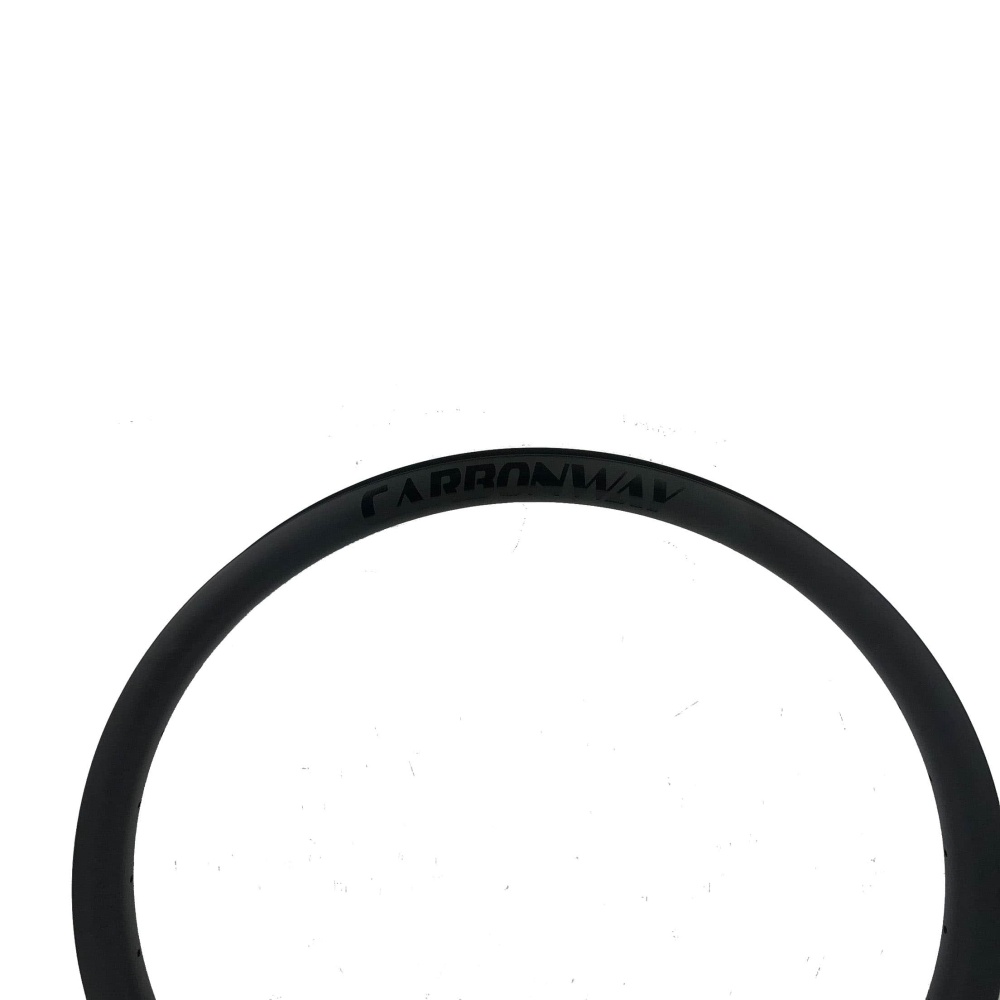

|CW26-3525CT| 26'' mtb rims bike stores mtb carbon wheel customized your brand logos OEM/ODM Pro factory no taxes shipping to UK

26 inch 330~420g Mountain bike carbon rims 35mm width 25mm depth hookless clincher tubeless design available for XC racing.
Price:
USD
$149.00
$169.00
    Please select the information you wantX
  • Weave:
    UD
    3K
    12K
    3K twill
    12K twill
  • Holes:
    24
    28
    32
    36
  • Finish:
    matt
    glossy
    50% matt
    Paintless Matt
    Paintless Glossy
  • Version:
    Standard XC 390g
    AM 420g
    Super light 330g XC
  • Spokes holes type&Diameter:
    Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)
    Without outer holes(No need rim tapes Inner holes 4.5mm)
    Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
Quantity:
-
+
(1000 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews

Basic info:

  • Item No.: CW26-3025CT
  •
  • Material: Toray T700/T800+T700 Carbon Fiber
  •
  • Rim Type: Hookless Clincher tubeless compatible
  •
  • Warranty: 3 Years

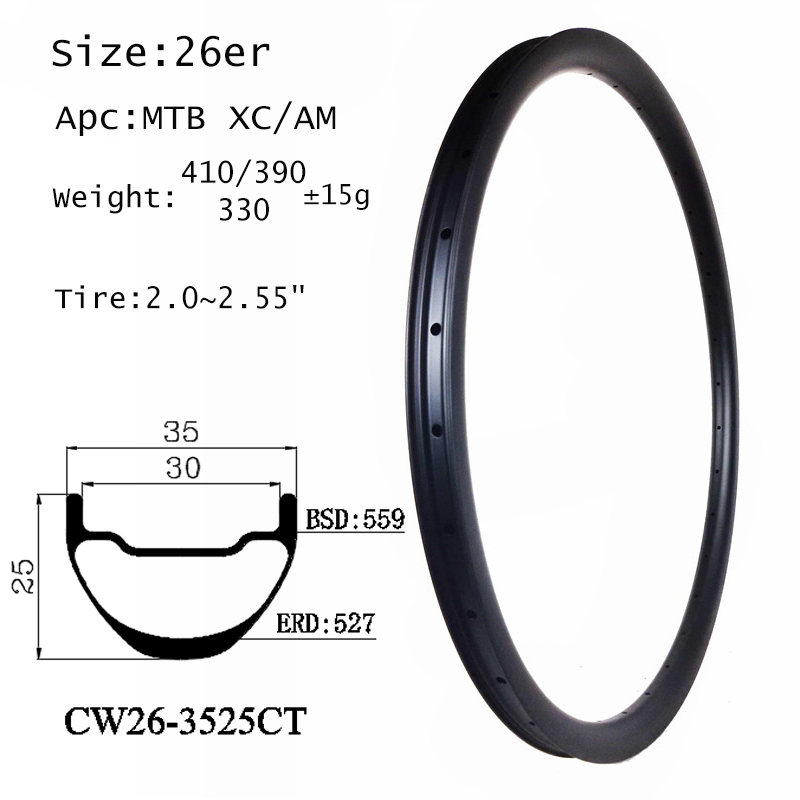

Dimension:

  • Size: 26er

    BSD: 559mm



  • ERD: 525mm

    External Width: 30mm



  • Spoke Hole Dia.: 4.5mm / 2.5mm

    Depth: 25mm



  • Internal Width: 25mm

    Valve Hole Dia.: 6.5mm


    Hole count: 24, 28, 32, 36

    Assembly Hole Dia.: 8.5mm



  • Weight: 390+/- 15g pcs (Standard XC),420+/- 15g (AM), 330+/- 15g pcs (Ultralight XC)

    Recommendation  data:

  • Tire Size: 2.0" ~2.55"

    Max Spoke Tension: 120kgf



  •  Weight Limit: 120kg

    Max Tire Pressure: 65psi

    Appearance:

    Weave: UD/3K/12K/3K twill/12K twill


    Finish: Matte / Glossy /50%Matt /Paintless Matt /Paintless Glossy

Application:

XC race (cross country),AM ride (all mountain)

Feature:

  • Clinhcer tubeless Compatible designed: This function means you can install clincher or tubeless two kinds of tyres are all perfectly.

Tech improvements:

* The ultralight version is new tech designed,(50% T800 and fixed T700 another) With Toray T800 carbon fiber it has more strongth and smaller density,but still keep T700 carbon weave with good tenacity characters.So the rims with more stronger,lighter,and durable.And strand version,just normal T700 carbon fiber,so it can do any carbon weave.
Ps: But ultralight version just can be do UD carbon weave,so if you need to ultralight/super light vesion,plz just choose UD carbon weave.

*  Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.

* Single layer technical made,is the latest generation process made of the carbon rims,whether from inner and outside layers are all use one piece carbon fiber,so the rim will have good strength,and light weight.



*  35mm width 25mm depth it's our light types and was designed according to the latest trend. By getting ride of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.



*  Hookless: By getting rid of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.



*  Filled with 3D weave, that will make the rim stable, safe and durable.



*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.



*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
