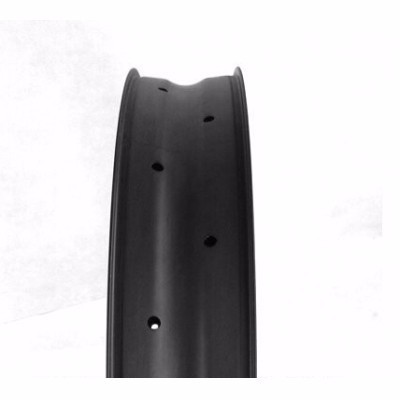

|CW26-65CT| 26er full carbon fatbike sand ground rims 65mm width 25mm depth light XC snow ground wheel with stiffness and strong appearance

26er 600g external 65mm internal 60mm depth 25mm hookless clincher tubeless compatible tire 3.0" ~ 4.8" ERD 533mm fat bike carbon rims.
Price:
USD
$219.30
$255.00
(14% OFF)
    Please select the information you wantX
  • Weave:
    UD
    3K
    12K
    3K twill
    12K twill
  • Holes:
    28
    32
    36
  • Finish:
    matt
    glossy
    50% matt
    Paintless Matt
    Paintless Glossy
  • Spokes holes type&Diameter:
    Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)
    Without outer holes(No need rim tapes Inner holes 4.5mm)
    Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
Quantity:
-
+
(1000 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews

Basic info:

  • Item No.: CW26-65CT
  •
  • Material: Toray T700+T1000 Carbon Fiber
  •
  • Rim Type: Hookless clincher tubeless compatible
  •
  • Warranty: 3 Years
  •
  • Standard: EN Standard
  •
  • Brake system:Disc brake

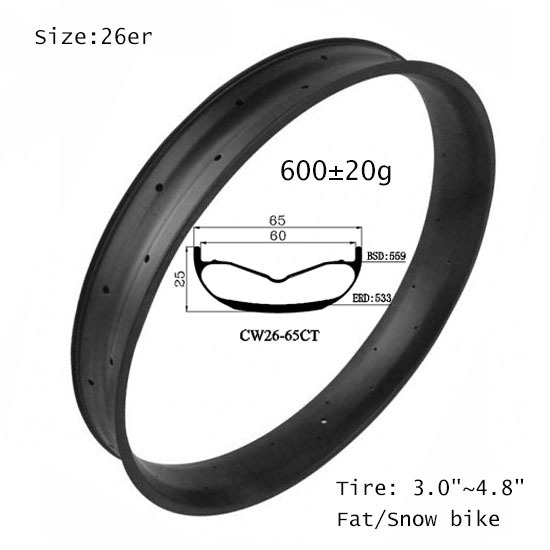

Dimension:

  • Size: 26er

    BSD: 559mm (ISO Standard)



  • ERD: 533mm (don't inclued nipples hed)

    External Width: 65mm



  • Spoke Hole Dia.: 4.5mm / 2.3mm

    Depth:25mm


    Internal Width:60mm(clincher tubeless compatible)

    Valve Hole Dia.: 6.5mm

    Hole count: 28/32/36

    Assembly Hole Dia.: 7.5mm


    Weight: 600±20g

  • Recommendation  data:

    Tire Size: 3.0~4.8"
  •
  • Max weight limit: 120kg
  •
  •  Max spoke tension: 150kgf


     Max tire pressure: 25psi

Application:

  • Fatbike/Snow bike XC

Appearance:

Weave: UD/3K/12K/3K twill/12K twill

Finish: Matte / Glossy / 50%Matt / Paintless Matt / Paintless Glossy

Feature:

  • Clinhcer tubeless Compatible designed: This function means you can install clincher or tubeless two kinds of tyres are all perfectly.

Tech improvements:

* 26er 65mm width 25mm depth carbon fat rims has excellent performances with the snow ground ride,it for advanced aerodynamics manufacture.It is ideally suited for racing xc ride.

*  Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.



*  Filled with 3D weave, that will make the rim stable, safe and durable.



*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.



*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
