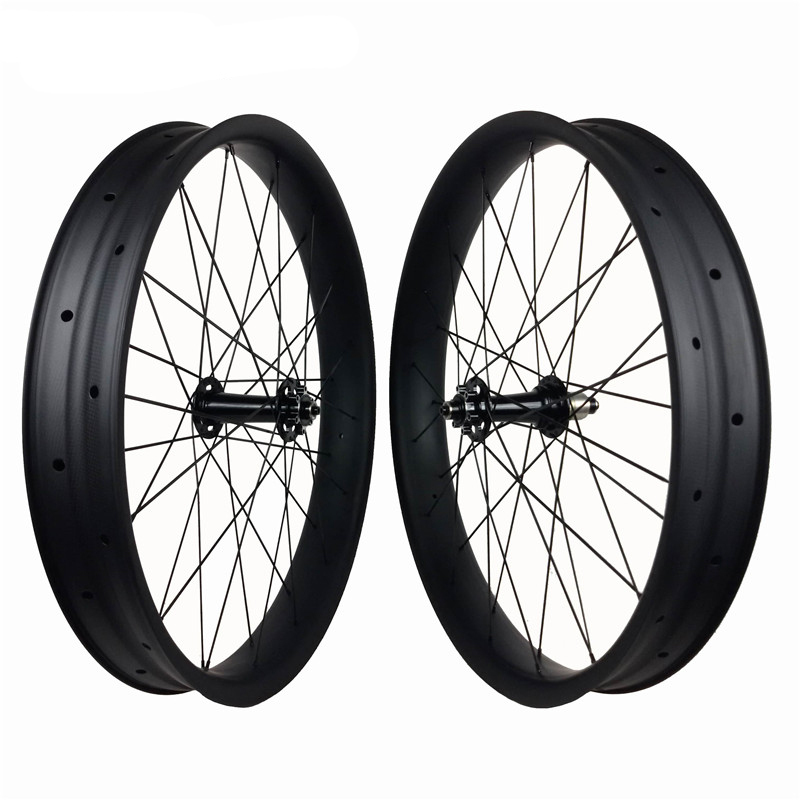

|CW26-80CT| 26er carbon fatbike wheels 80mm width 25mm depth clincher tubeless compatible sand bicycle wheelset M74 hub QR/TA 1423/1420 Spokes light

26er 2440g external 80mm internal 75mm depth 25mm hookless clincher tubeless tire 3.8"+ Hub powerway/Novatec quick release/thru axle spokes 1423/1420/ sapim cx ray Nipple alu.
(14% OFF)
    Please select the information you wantX
  • Carbon Weave:
    3K twill
    12K twill
  • Finish:
    50% matt
    Paintless Matt
    Paintless Glossy
  • Hub&Color:
    Novatec D201 black
    Powerway M74 Black
    Powerway M74 Red
  • Front Axle:
    TA 135X15mm
  • Cassette body:
    Shimano 10/11s
    Sram XD 10/11s
  • Rear Axle:
    TA 170X12mm
    TA 190X12mm
    TA 197X12mm
  • Spokes:
    Pillar 1423
    Pillar PSR 1420 4.3g/pcs
    Sapim CX-Ray 4.3g/pcs
  • Spoke Holes:
  • Nipples/Color:
    Aluminum Black
    Aluminum Red
  • Brake System:
    6 Bolt
(999 available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews(1)
PS: From option: QR=Quick Release,and TA=Thru Axle.



Model No. :


Material:Toray T700 Full Carbon

Weave:3K/UD/12K/12K twill/3K twill

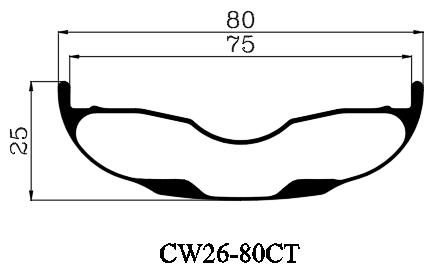

Rim Width&Depth:80mm/25mm

ERD:559mm (ISO standard)


Type:Hookless clincher tubeless compatible


Hub/Cassette body:


Novatec D201 Powerway M74 hubs(quick release/Thru axle)

Quick release:135/150*9, 170/190/197*10mm(F/R)

Thru axle:135/150*15, 170/190/197*12mm(F/R)


Body:Shimano 10、11s or SRAM XD 10 11s

Origin:(Made in TaiWan)


Pillar PSR1423/1420 (Made in TaiWan),Sapim CX-ray (Made in Belgium)

(Pillar PSR 1423 6.5g/pcs,1420 4.3g/pcs,CX-ray 4.3g/pcs)

Spoke holes:Front 32, Rear 32

Nipple&Colors:Aluminum (Black/Red/Silver)

Wheelset Weight:2440±80g

Application:Sand/Snow/Single Track

Standard:En Standard

  • Recommendation:

    Tire Size: 3.8"+
  • Max weight limit: 120kg
  •  Max spoke tension: 150kgf

     Max tire pressure: 25psi


  • Clinhcer tubeless Compatible designed: This function means you can install clincher or tubeless two kinds of tyres are all perfectly.

Tech improvements:

* 26er 80mm width 25mm depth carbon fat wheels has excellent performances with the snow ground ride,it for advanced aerodynamics manufacture.It is ideally suited for racing xc ride.

*  Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.


*  Filled with 3D weave, that will make the rim stable, safe and durable.


*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.


*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
