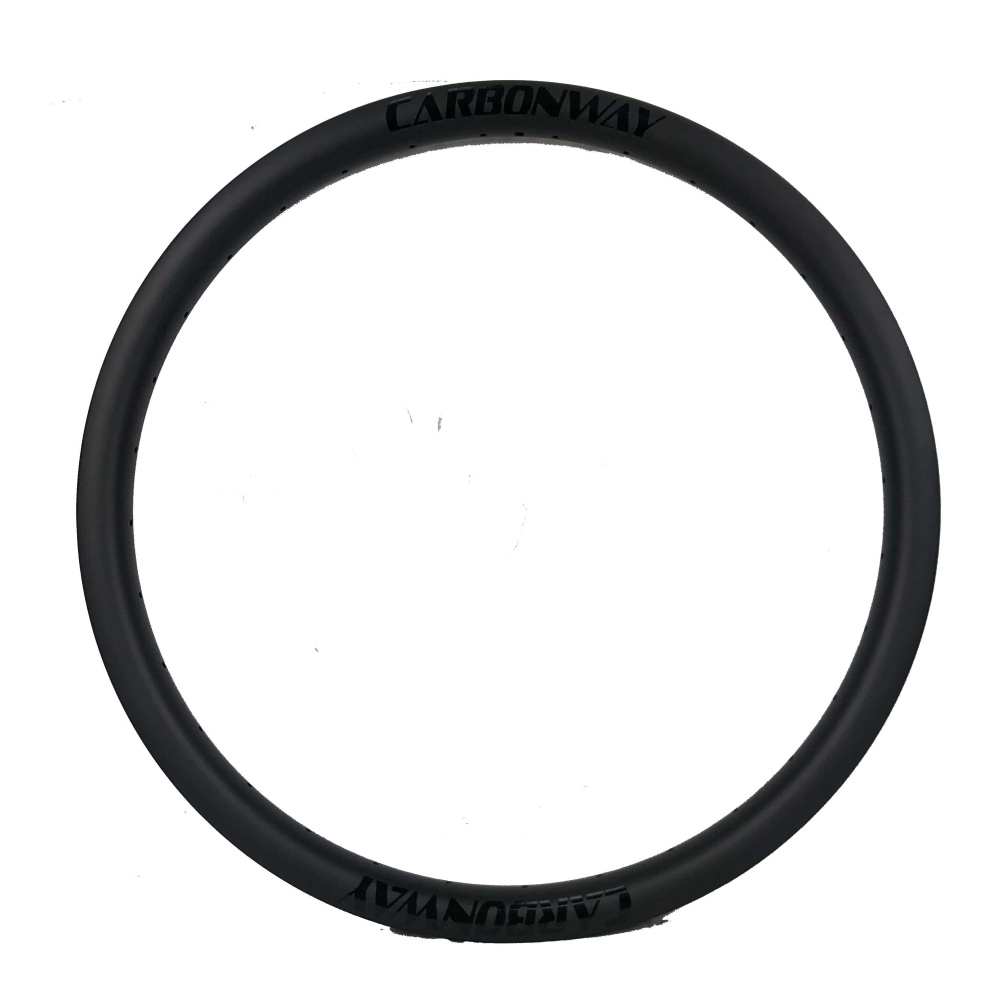

|CW2635CT| ultralight 390g carbon bicycle rims 35mm depth 26mm wide disc brake V brake carbon wheel fit for road triathlon bike

700C 390~440g external 26mm internal 17mm depth 35mm clincher tubeless compatible tire ERD 569mm V brake/Disc brake light weight road carbon rims.
    Please select the information you wantX
  • Weave:
    12K twill
  • Version:
    Standard 440g
    Ultralight 390g
  • Finish:
    50% matt
  • Brake system:
    V brake(high TG brake suface)
    Disc brake (no brake line)
  • Holes:
  • Spokes holes type&Diameter:
    Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)
    Without outer holes(No need rim tapes Inner holes 4.5mm)
    Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
(996 available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews(2)

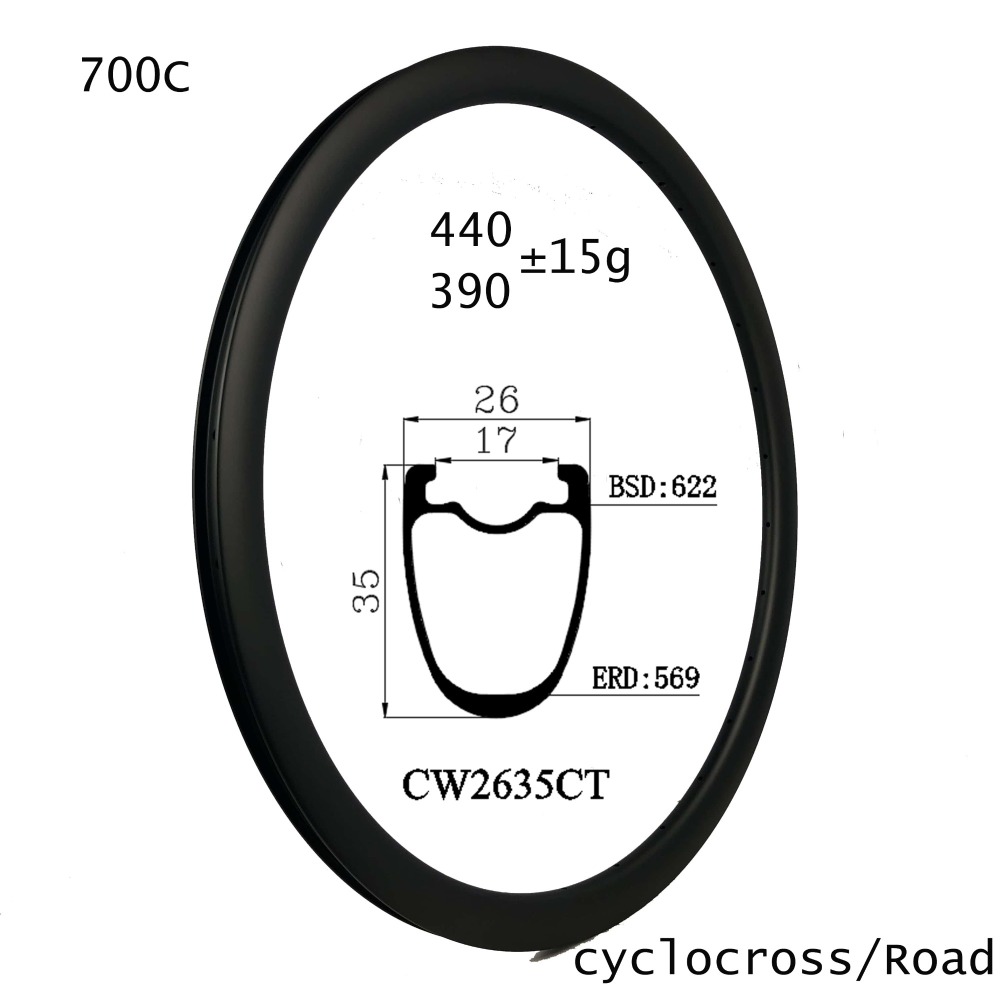

Basic info:

  • Item No.: CW2635CT
  • Material: Toray T700/T800+T700 Carbon Fiber
  • Rim Type: Tubular/Clincher/Clincher tubeless compatible
  • Warranty: 3 Years
  • Standard: EN Standard


  • Size: 700C

    BSD: 622mm (ISO Standard)


  • ERD: 569mm (don't inclued nipples hed)

    External Width: 26mm


  • Spoke Hole Dia.: 4.5mm / 2.3mm


    Internal Width: 17mm(clincher tubeless compatible)

    Valve Hole Dia.: 6.5mm
    Hole count: 16,18,20,21,24, 28, 32, 36

    Assembly Hole Dia.: 7.5mm

    Weight:440/390±15g Pcs

  • Recommendation  data:

  •  Max Spoke Tension: 130kgf

  •  Weight Limit: 90kg

    Max Tire Pressure: 130psi


  • Road / Cyclocross / Triathlon / Time Trial (TT)
  • Appearance:

    Weave: UD/3K/12K/3K twill/12K twill

    Finish: Matte / Glossy


  • Tubular/clincher/clincher tubeless compatible all size tyres designed: Those three kinds of tyres included fit for any tyres.

Tech improvements:

* The ultralight version is new tech designed,(50% T800 and fixed T700 another) With Toray T800 carbon fiber it has more strongth and smaller density,but still keep T700 carbon weave with good tenacity characters.So the rims with more stronger,lighter,and durable.And strand version,just normal T700 carbon fiber,so it can do any carbon weave.
Ps: But ultralight version just can be do UD carbon weave,so if you need to ultralight/super light vesion,plz just choose UD carbon weave.

* The U shape rims are our new design, they are with 26mm tire width, have a wider spacing between the bike rim than traditional V-shaped rims, thanks to a slight widening of the rim, they are much stiffer. With a slightly angled brake track, they have better braking. And they are lightweight, fast, when hit a few windy sections, it could not fell a thing in the cross winds.


*  35mm depth 26mm width rim has excellent performances in climbing and acceleration with the advanced aerodynamics, it is ideally suited for racing and triathlon. Its stiff construction offer the ability to maintain higher speed and good cornering grip.


*  High TG 240 degrees and high heat-resistant basalt braking surface improve heat dissipation, effectively reduce the impact in heat caused by braking to provide you with reliability and stopping power.


*  Filled with 3D weave, that will make the rim stable, safe and durable.


*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.


*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
