Name: |CW2645CT| 700C ultralight 410g carbon bicycle rims 45mm depth 26mm width disc brake V brake two types bike wheel Russian team love
Brand: Cyclingwheel
SKU: CW2645CT
Price: 125.56 USD
Availability: InStock
Rating: 5 (3 reviews)

Your position: Home / Road / 26mm ultralight

facebook
twitter
pinterest
vk
linkedin google digg reddit stumbleupon delicious

PDF Format

Price:

$125.56

~~$146.00~~

(14% OFF)

Please select the information you wantX

Weave:

UD

3K

12K twill

12K
Finish:

Matt

Glossy

50% matt

Paintless Matt

Paintless Glossy
Version:

Standard 460g

Superlight 410g
Holes:

16

20

21

24

28

32

36

21G3
Brake system:

V brake(high TG brake suface)

Disc brake (no brake line)
Spokes holes type&Diameter:

Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)

Without outer holes(No need rim tapes Inner holes 4.5mm)

Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
Ships From:

China

Quantity:

Shipping Cost:

Description
Reviews(3)

Basic info:

Item No.: CW2645CT
Material: Toray T700/T800+T700 Carbon Fiber
Rim Type: Clincher tubeless compatible
Warranty: 3 Years
Standard: EN Standard

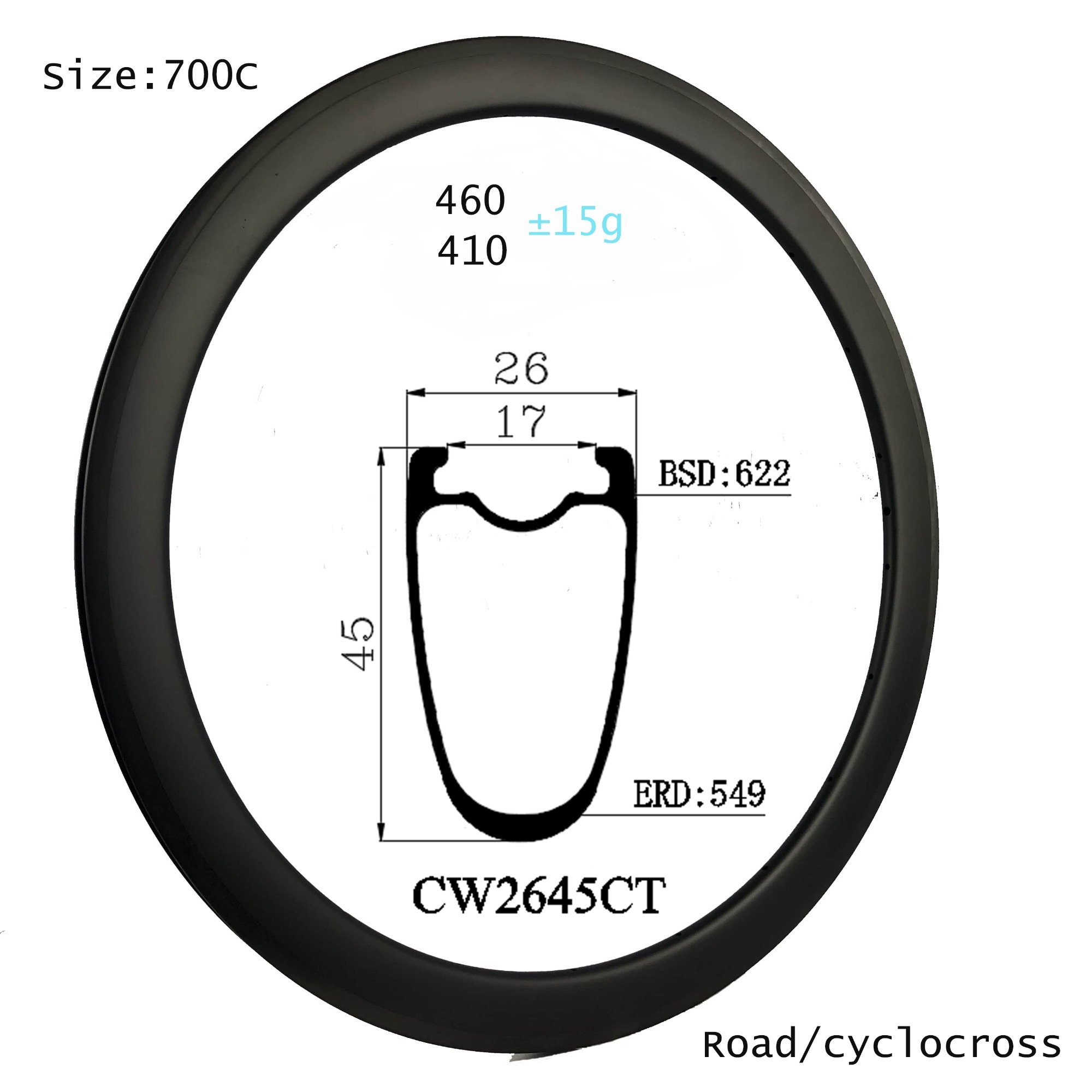

Dimension:

Size: 700C

BSD: 622mm (ISO Standard)
ERD: 549mm (don't inclued nipples hed)

External Width: 26mm
Spoke Hole Dia.: 4.5mm / 2.3mm

Depth:45mm

Internal width.:17mm

Valve Hole Dia.: 6.5mm

Hole count: 16,18,20,21,24, 28, 32, 36

Assembly Hole Dia.: 7.5mm

Weight:460+/- 15g (Standard version),410+/- 15g (Ultralight)
Recommendation data:
Max Spoke Tension: 130kgf
Weight Limit: 90kg

Max Tire Pressure: 130psi

Appearance:

Weave: UD/3K/12K/3K twill/12K twill

Finish: Matte / Glossy / Paintless Matt / Paintless Glossy

Application:

Road / Cyclocross / Triathlon / Time Trial (TT)

Feature:

Tubular/clincher/clincher tubeless compatible all size tyres designed: Those three kinds of tyres included fit for any tyres.

Tech improvements:

* The ultralight version is new tech designed,(50% T800 and fixed T700 another) With Toray T800 carbon fiber it has more strongth and smaller density,but still keep T700 carbon weave with good tenacity characters.So the rims with more stronger,lighter,and durable.And strand version,just normal T700 carbon fiber,so it can do any carbon weave.

Ps: But ultralight version just can be do UD carbon weave,so if you need to ultralight/super light vesion,plz just choose UD carbon weave.

* Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.

* The U shape rims are our new design, they are with 26mm tire width, have a wider spacing between the bike rim than traditional V-shaped rims, thanks to a slight widening of the rim, they are much stiffer. With a slightly angled brake track, they have better braking. And they are lightweight, fast, when hit a few windy sections, it could not fell a thing in the cross winds.

* 45mm depth 26mm width rim has excellent performances in climbing and acceleration with the advanced aerodynamics, it is ideally suited for racing and triathlon. Its stiff construction offer the ability to maintain higher speed and good cornering grip.

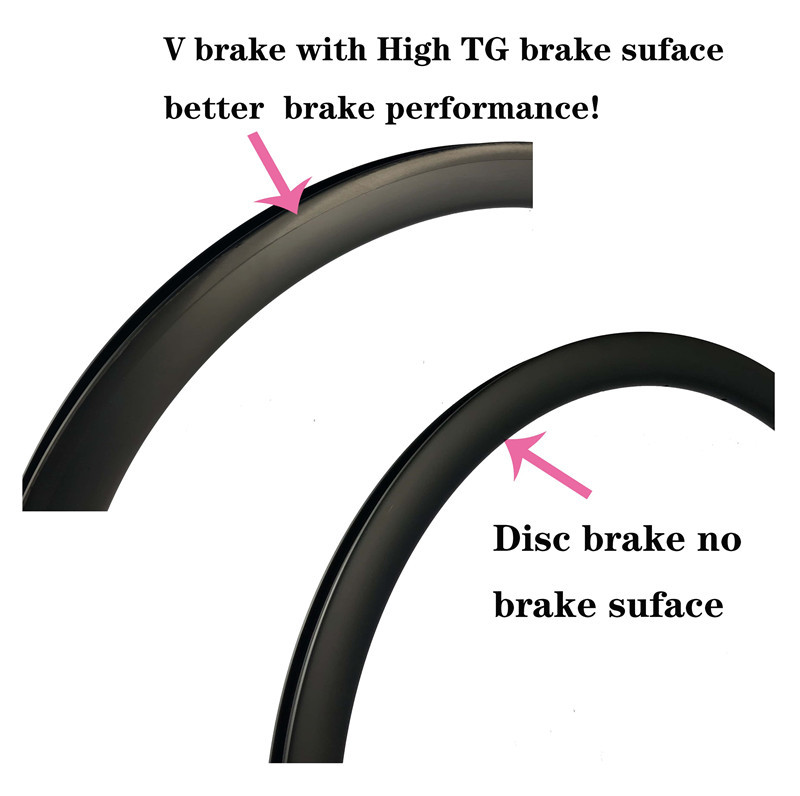

* High TG 240 degrees and high heat-resistant basalt braking surface improve heat dissipation, effectively reduce the impact in heat caused by braking to provide you with reliability and stopping power.

* Filled with 3D weave, that will make the rim stable, safe and durable.

* Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.
