Basic info:
- Item No.: CW26D50T/C/CT
-
- Material: Toray T800+T700 Carbon Fiber
-
- Rim Type: Tubular/Clincher/Clincher tubeless compatible
-
- Warranty: 3 Years
-
- Brake system: V brake
-
- Standard: EN Standard
Dimension:
-
Size: 700C
BSD: 622mm (ISO Standard)
-
ERD: 539mm (don't inclued nipples hed)
External Width: 26mm
-
Spoke Hole Dia.: 4.5mm / 2.3mm
Depth:50mm
Internal Width: 18mm(clincher tubeless compatible)
Valve Hole Dia.: 6.5mm
Hole count: 16,18,20,21,24, 28, 32, 36
Assembly Hole Dia.: 7.5mm
Weight:410+/- 15g (Tubular) ,480+/- 15g (Clincher) 485+/- 15g (Tubeless)
-
Recommendation data:
-
Max Spoke Tension: 130kgf
-
Weight Limit: 90kg
Max Tire Pressure: 130psi
Appearance:
Weave: UD
Finish: Original
Application:
- Road / Cyclocross / Triathlon / Time Trial (TT)
Feature:
Tech improvements:
The U shape rims are our new design, they are with 26mm tire width, have a wider spacing between the bike rim than traditional V-shaped rims, thanks to a slight widening of the rim, they are much stiffer. With a slightly angled brake track, they have better braking. And they are lightweight, fast, when hit a few windy sections, it could not fell a thing in the cross winds.
* 50mm depth 26mm width rim with dimpled original appearance has excellent performances in climbing and acceleration with the advanced aerodynamics, it is ideally suited for racing and triathlon. Its stiff construction offer the ability to maintain higher speed and good cornering grip.
* High TG 220 degrees and high heat-resistant basalt braking surface improve heat dissipation, effectively reduce the impact in heat caused by braking to provide you with reliability and stopping power.
* Filled with 3D weave, that will make the rim stable, safe and durable.
* Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.
* 250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.

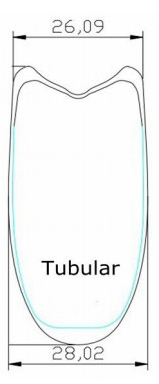

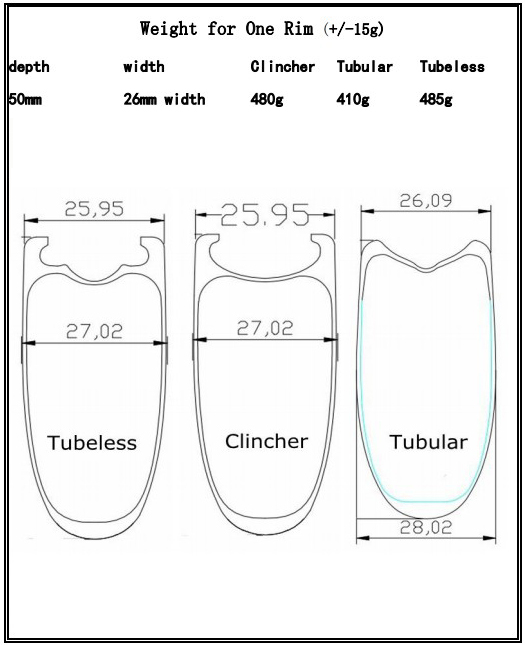

Rim section:

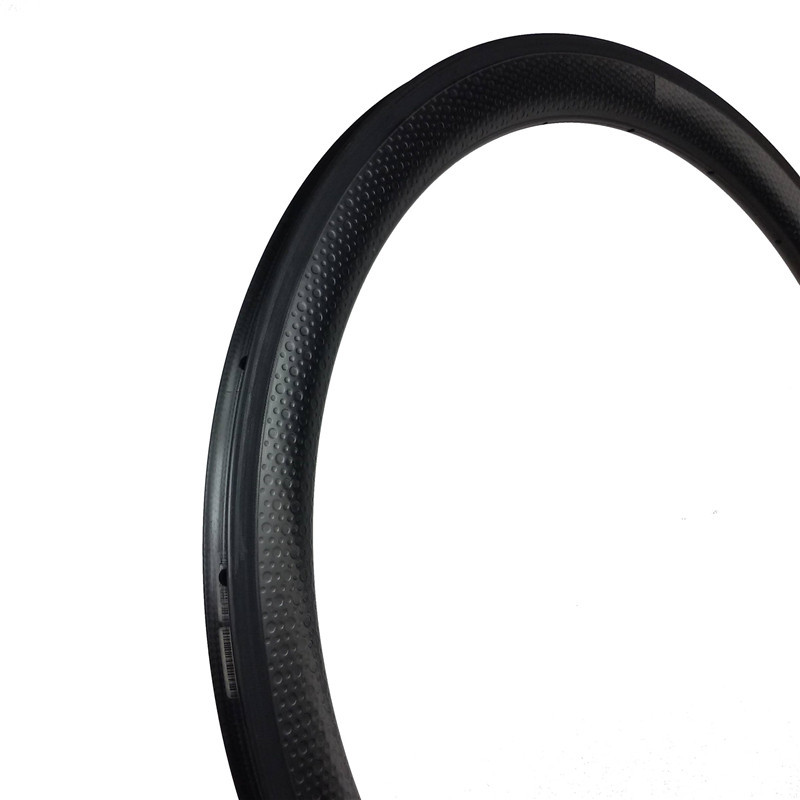

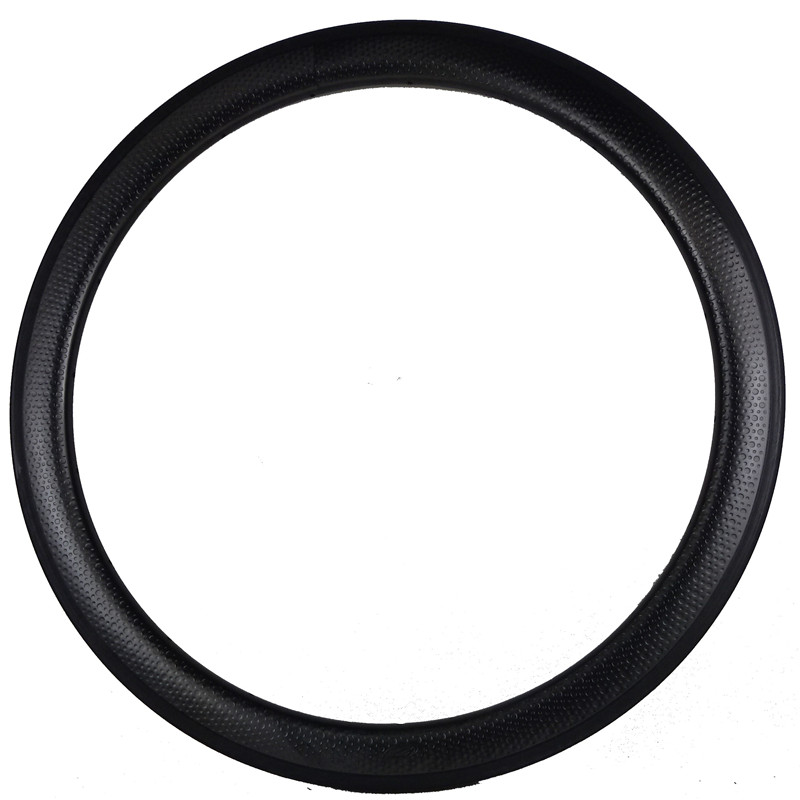

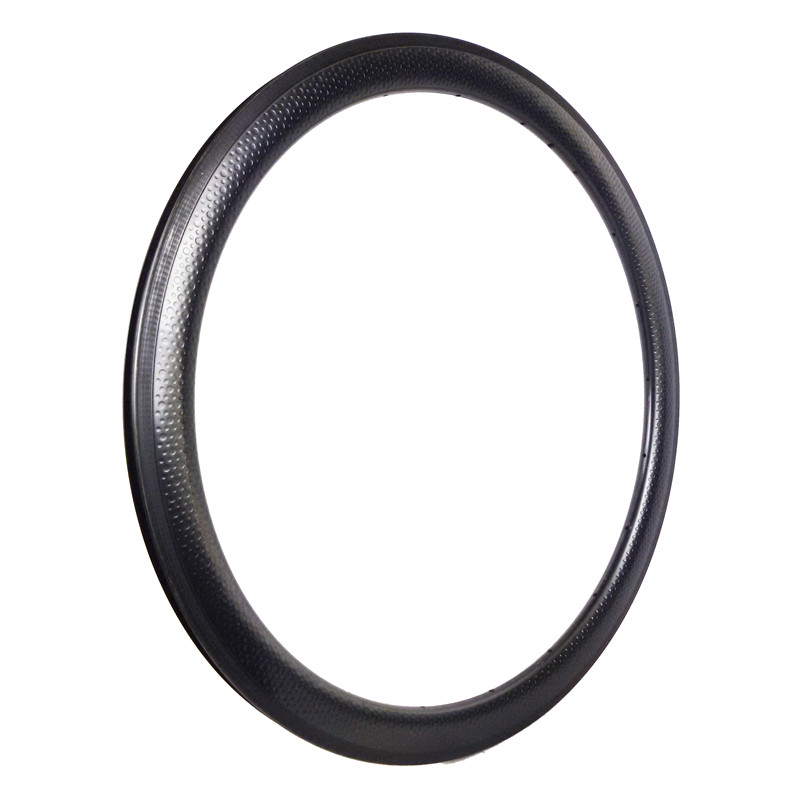

Photos:
