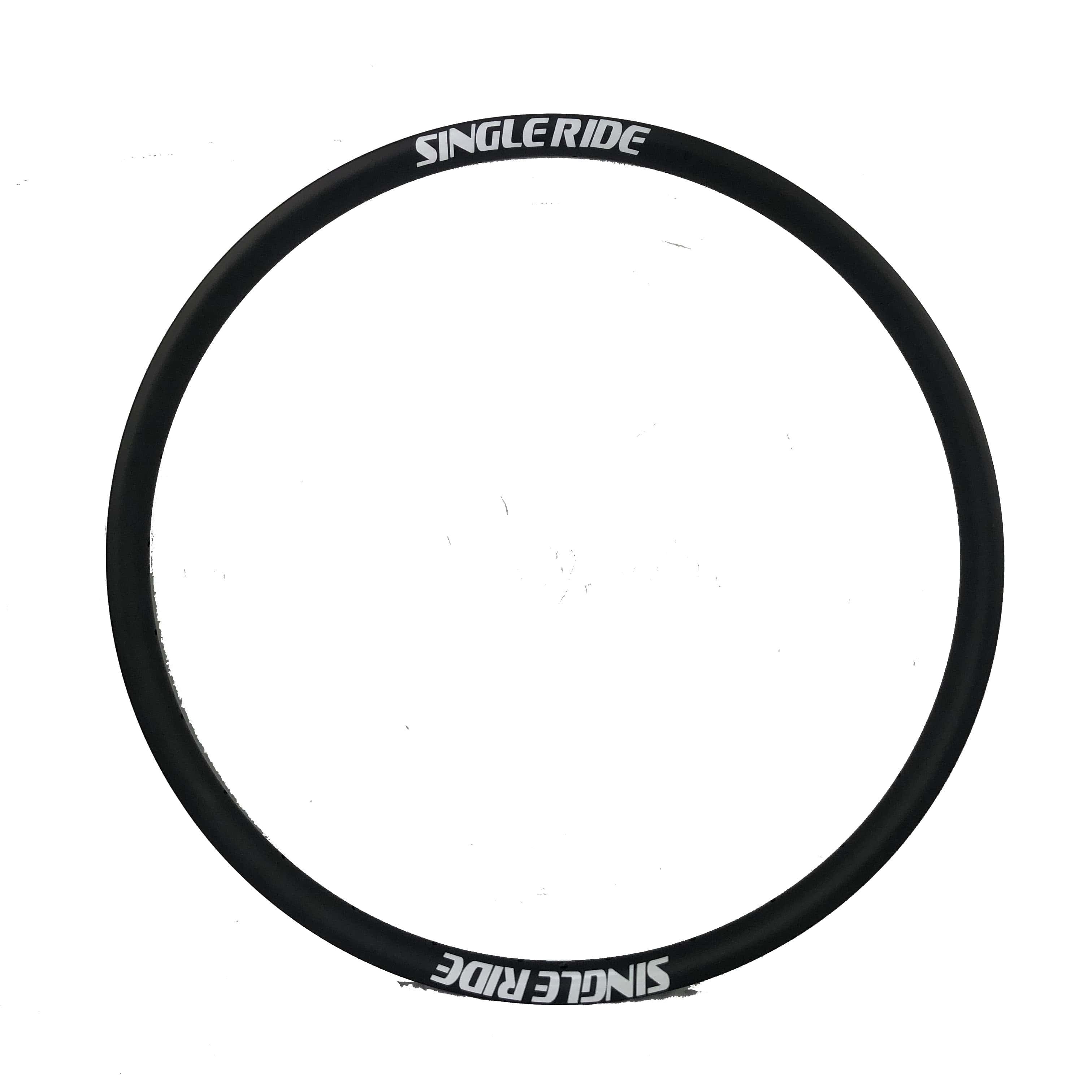

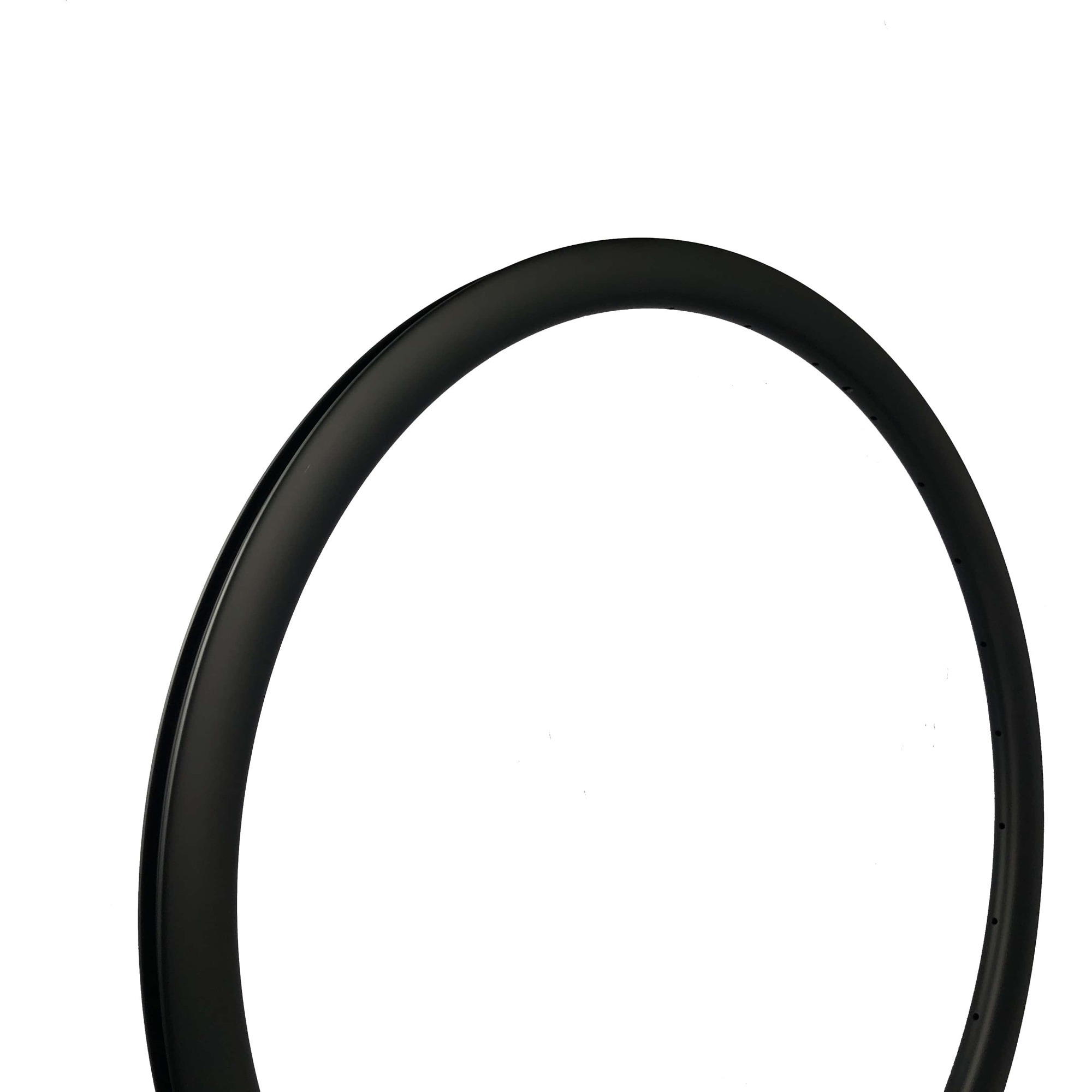

|CW27-3530CT| Singleride carbon wheel 27.5er bike rims 35mm width 30mm depth clincher tubeless compatible XC AM ride cycles

Basic info:

• Item No.: CW29-3530CT
•
• Material: Toray T1000+T700 Carbon Fiber
•
• Rim Type: Hookless Clincher tubeless compatible
•
• Warranty: 3 Years
•

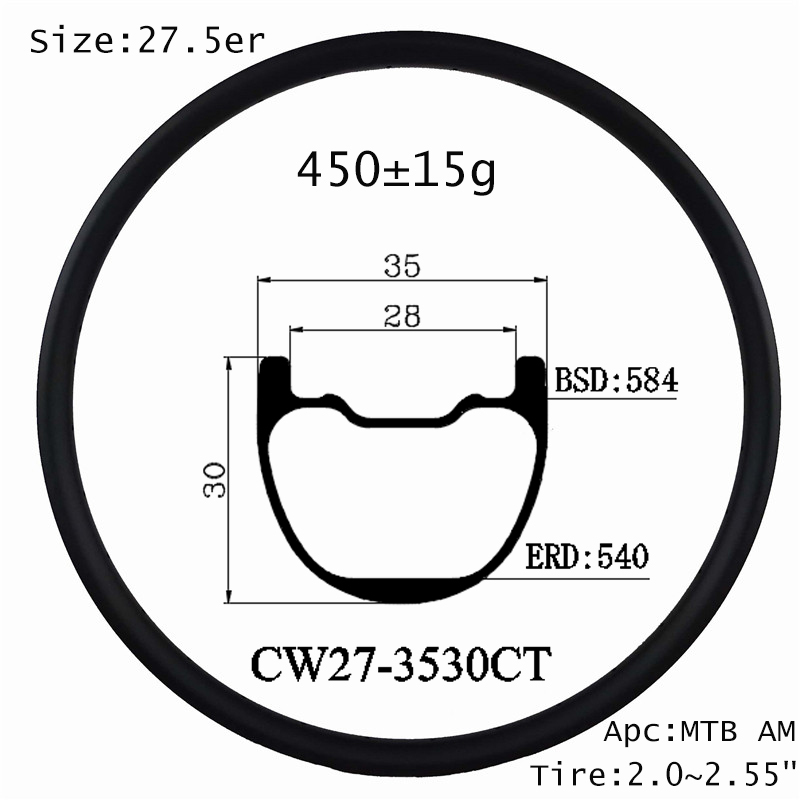

Dimension:

• Size: 27.5er

  BSD: 584mm


• ERD: 540mm

  External Width: 35mm


• Spoke Hole Dia.: 4.5mm / 2.3mm

  Depth: 30mm


• Internal Width: 28mm

  Valve Hole Dia.: 6.5mm

  Hole count: 24, 28, 32, 36

  Assembly Hole Dia.: 7.5mm


• Weight: 440+/- 25g (XC) pcs,460g+/-25g (AM)


  Recommendation  data:

• Tire Size: 2.0" ~ 2.55"

  Max Spoke Tension: 130kgf


•  Weight Limit: 110kg

  Max Tire Pressure: 70psi

  Appearance:

  Weave: UD/3K/12K/3K twill/12K twill

  Finish: Matte / Glossy / Paintless Matt / Paintless Glossy


Application:

XC (cross country)/ AM (all mountain)

Feature:

• Clinhcer tubeless Compatible designed: This function means you can install clincher or tubeless two kinds of tyres are all perfectly.

Tech improvements:

* 27.5er 35mm width 30mm depth carbon rims is single layer technical made,is the latest generation process made of the carbon rims,whether from inner and outside layers are all use one piece carbon fiber,so the rim will have good strength,and light weight.This wide XC/Marathon riding very comfortable.


       *  Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.

*  The 35mm width it's advantages technology design and new trend. By getting ride of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.

*  Hookless: By getting rid of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.

*  Filled with 3D weave, that will make the rim stable, safe and durable.

*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.

*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
