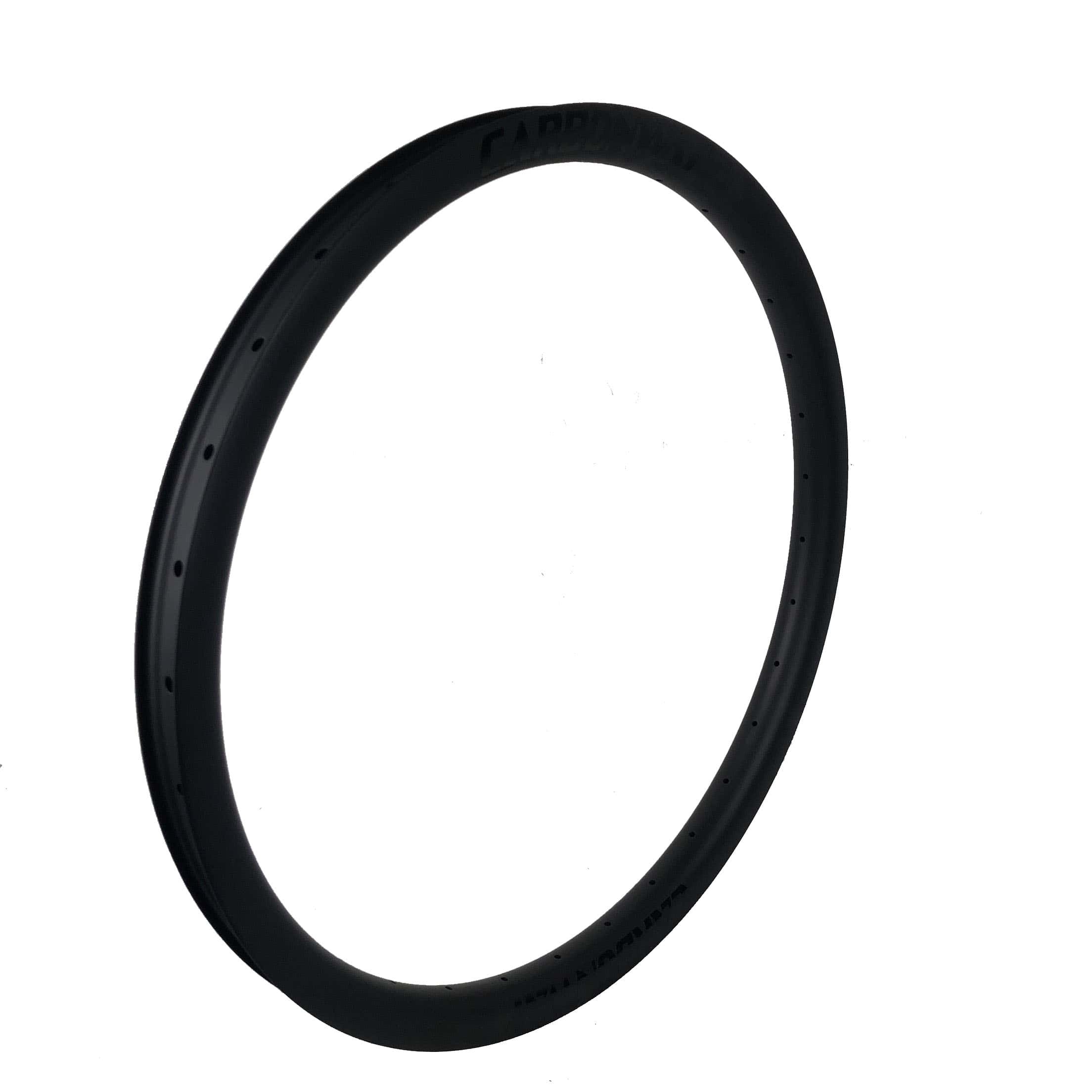

|CW27-4032CT| 27.5er Stronger design MTB carbon rims downhill bst 40mm width 32mm depth DH training wheels Poland ride lover

Basic info:

• Item No.: CW27-4032CT
•
• Material: Toray T800+T700 Carbon Fiber
•
• Rim Type: Hookless Clincher tubeless compatible
•
• Warranty: 3 Years
•

Dimension:

• Size: 27.5er

  BSD: 584mm (ISO Standard)


• ERD: 537mm (don't inclued nipples hed)

  External Width: 42mm


• Spoke Hole Dia.: 4.5mm / 2.5mm

  Depth:32mm

  Internal Width: 31mm

  Valve Hole Dia.: 6.5mm

  Hole count: 24, 28, 32, 36

  Assembly Hole Dia.: 7.5mm

  Weight:570+/- 15g pcs

• Recommendation  data:

• Tire Size: 2.3" ~ 3.0"

  Max Spoke Tension: 130kgf


•  Weight Limit: 120kg

  Max Tire Pressure: 70psi

Application:

DH / downhill version

Appearance:

Weave: UD/3K/12K/3K twill/12K twill

Finish: Matte / Glossy

Feature:

• Tubular tyres designed: This function means need to used special glues to assemble the tyres and will let the wheels solid and burly.

Tech improvements:

* Single layer technical made,is the latest generation process made of the carbon rims,whether from inner and outside layers are all use one piece carbon fiber,so the rim will have good strength,and light weight.

*  27.5er carbon rims 42mm width it's our special designed with stronger downhill racing. Designed according to the latest trend. By getting ride of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.

*  Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.

*  Hookless: By getting rid of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.

*  Filled with 3D weave, that will make the rim stable, safe and durable.

*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.

*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
