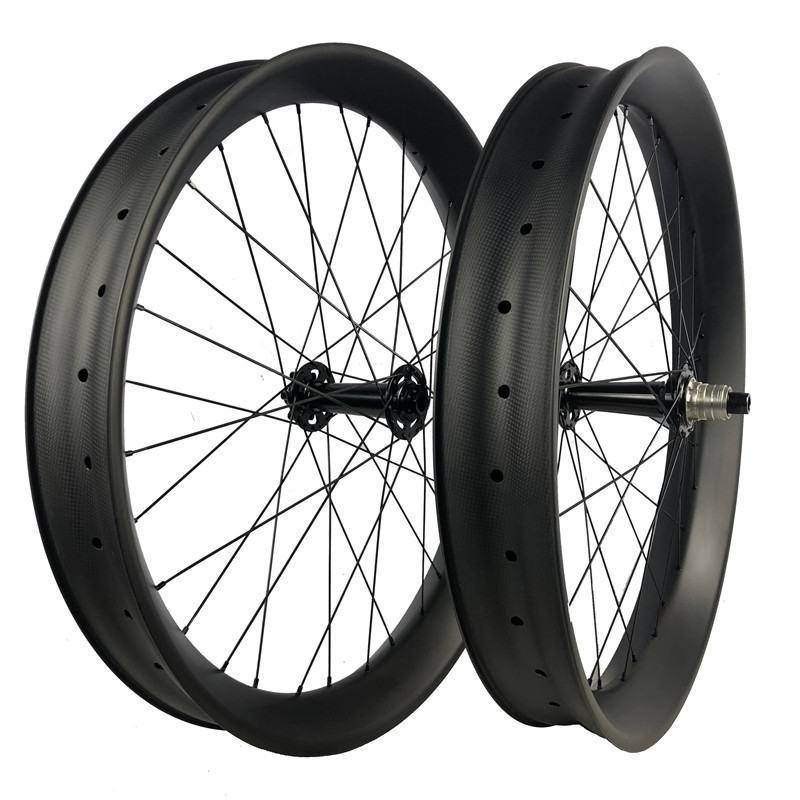

Name: |CW27-85CT| 27.5 inch carbon fatbike wheels 85mm width 40mm depth clincher tubeless with Taiwan Powerway hub pillar 1420/sapim spokes
Brand: Cyclingwheel
SKU: CW27-85CT-FW
Price: 677.68 USD
Availability: InStock
Rating: 5 (4 reviews)

Your position: Home / Fatbike / Fat wheels

facebook
twitter
pinterest
vk
linkedin google digg reddit stumbleupon delicious

PDF Format

Price:

$677.68

~~$788.00~~

(14% OFF)

Please select the information you wantX

Carbon Weave:

UD

3K

12K

3K twill

12K twill
Finish:

Matt

Glossy

50% matt

Paintless Matt

Paintless Glossy
Hub&Color:

Novatec D201 black

Powerway M74 Black

Powerway M74 Red
Front Axle:

TA 135X15mm

TA150X15mm
Cassette body:

Shimano 10/11s

Sram XD 10/11s
Rear Axle:

TA 170X12mm

TA 190X12mm

TA 197X12mm
Spokes:

Pillar 1423

Pillar 1420 +$98

Sapim CX-Ray +$139
Spoke Holes:

32/32
Nipples/Color:

Aluminum Black

Aluminum Red
Brake System:

6 Bolt
Ships From:

China

Quantity:

Shipping Cost:

Description
Reviews(4)

PS: From option: QR=Quick Release,and TA=Thru Axle.

Basic:

Rims:

Model No. :CW27-85CT

Size:27.5er

Material:Toray T700 Full Carbon

Weave:3K/UD/12K/12K twill/3K twill

Finish:Matt/Glossy

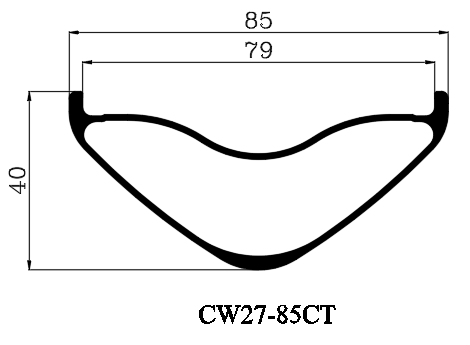

Rim Width&Depth:85mm/40mm

ERD:584mm (ISO standard)

BSD:522mm

Type:Hookless clincher tubeless compatible

Weight:670±25g

Hub/Cassette body:

Powerway M74 Thru axle hubs（quick release,Thru axle)

Quick release:135/150*9, 170/190/197*10mm(F/R)

Thru axle:135/150*15, 170/190/197*12mm(F/R)

Body:Shimano 10、11s or SRAM XD 10 11s

Origin:(Made in TaiWan)

Spoke&Nipple:

Pillar PSR1423/1420 (Made in TaiWan),Sapim CX-ray (Made in Belgium)

(Pillar PSR 1423 6.5g/pcs,1420 4.3g/pcs,CX-ray 4.3g/pcs)

Spoke holes:Front 32, Rear 32

Nipple&Colors:Aluminum (Black/Red/Silver)

Wheelset Weight:2400±80g

Application:Sand/Snow/Single Track

Standard:En Standard

Recommendation:
Tire Size: 3.8"+
Max weight limit: 120kg
Max spoke tension: 150kgf

Max tire pressure: 25psi

Feature:

Clinhcer tubeless Compatible designed: This function means you can install clincher or tubeless two kinds of tyres are all perfectly.

Tech improvements:

* 27.5er 85mm width 40mm depth carbon fat wheels has excellent performances with the snow ground ride,it for advanced aerodynamics manufacture.It is ideally suited for racing xc ride.

* Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.

* Filled with 3D weave, that will make the rim stable, safe and durable.

* Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.

* 250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
