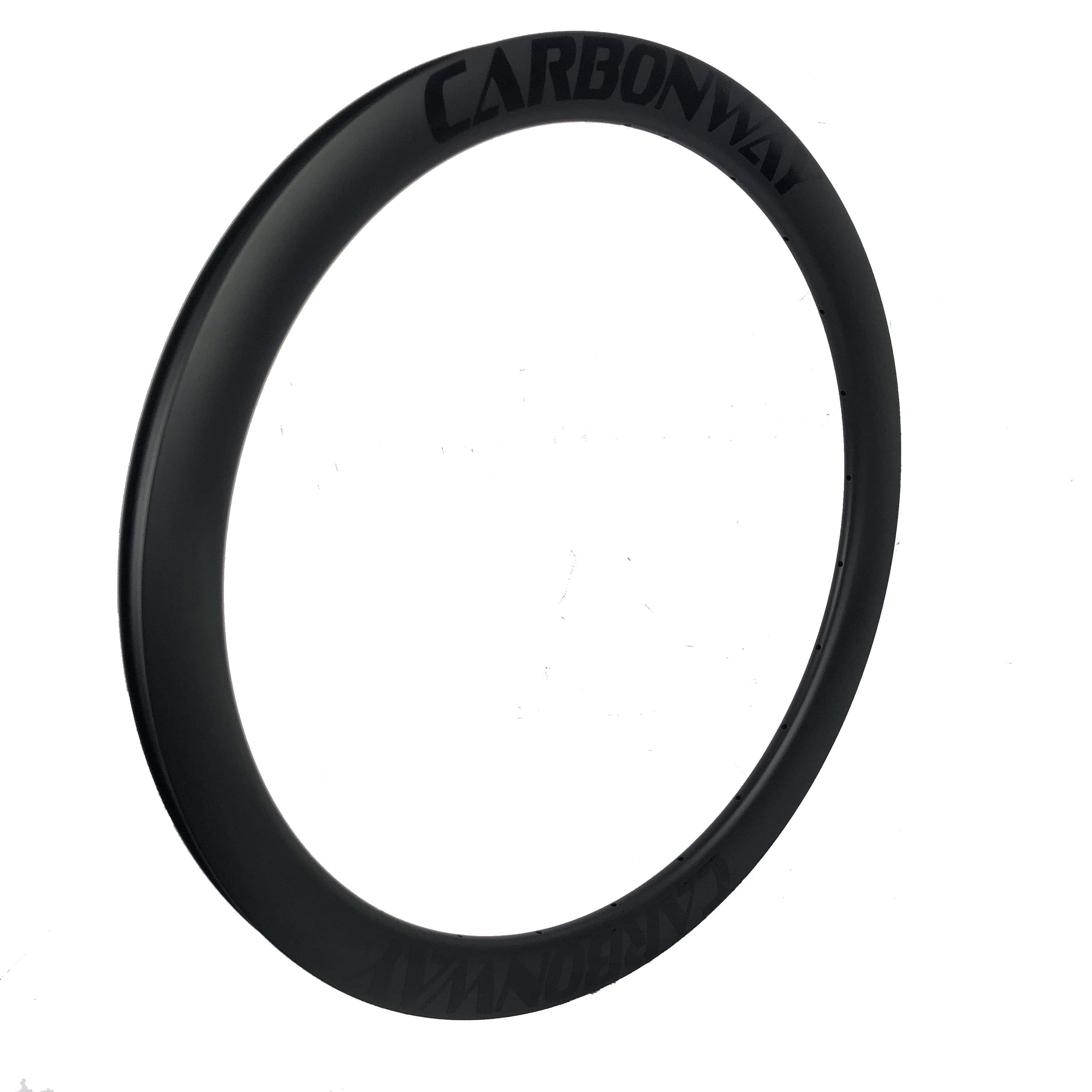

|CW27.6-40HT| 29er/700C 40mm depth 27.6mm width hookless clincher tubeless carbon rims Gravel bike cyclocross Chinese manufacture wheels cn

700C/29er 410~460g external 27.6mm internal 22mm depth 45mm hookless clincher tubeless tires ERD 569mm gravel disc brake bike rims
Price:
USD
$153.00
$169.00
    Please select the information you wantX
  • Weave:
    UD
    3K
    12K
    12K twill
  • Finish:
    Matt
    Glossy
    50% matt
    Paintless Matt
    Paintless Glossy
  • Holes:
    16
    18
    21
    24
    28
    32
    36
    21(G3)
  • Version:
    Standard 460g
    Ultralight 410g
  • Spokes holes type&Diameter:
    Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)
    Without outer holes(No need rim tapes Inner holes 4.5mm)
    Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
Quantity:
-
+
(996 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews(2)

Basic info:

  • Item No.: CW27.6-40HT
  •
  • Material: Toray T700/T800+T700 Carbon Fiber
  •
  • Rim Type: Hookless clincher tubeless compatible
  •
  • Warranty: 3 Years
  •
  • Brake system: disc brake
  •
  • Standard: EN Standard

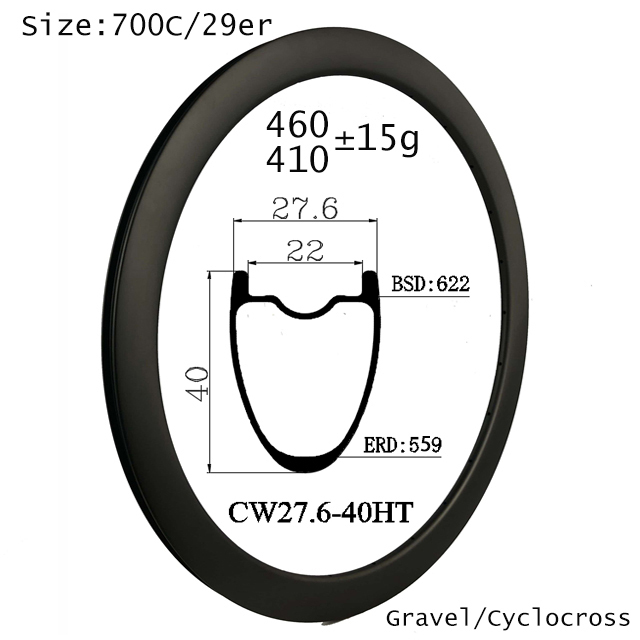

Dimension:

  • Size: 700C

    BSD: 622mm (ISO Standard)



  • ERD: 569mm (don't inclued nipples hed)

    External Width: 27.6mm



  • Spoke Hole Dia.: 4.5mm / 2.3mm

    Depth:40mm


    Internal Width: 22mm(clincher tubeless compatible)

    Valve Hole Dia.: 6.5mm

    Hole count: 16,18,20,21,24, 28, 32, 36 21(G3)

    Assembly Hole Dia.: 7.5mm


     Weight:410+/- 15g (Clincher), 460+/- 15g (Tubeless)

  • Recommendation  data:

  •  Max Spoke Tension: 130kgf


  •  Weight Limit: 90kg

    Max Tire Pressure: 130psi

Application:

  • Gravel / Cyclocross / Triathlon / Time Trial (TT)

Appearance:

Weave: UD / 3K / 12K / 12K twill

Finish: Matt / Glossy / Painting Matt / Painting Glossy




Feature:

  • Hookless clincher tubeless compatible designed: This function means that the rims is easy to install the tyres and remove the tyres.

Tech improvements:

* The ultralight version is new tech designed,(50% T800 and fixed T700 another) With Toray T800 carbon fiber it has more strongth and smaller density,but still keep T700 carbon weave with good tenacity characters.So the rims with more stronger,lighter,and durable.And strand version,just normal T700 carbon fiber,so it can do any carbon weave.
Ps: But ultralight version just can be do UD carbon weave,so if you need to ultralight/super light vesion,plz just choose UD carbon weave.

* The U shape rims are our new design, they are with 27.6mm width, have a wider spacing between the bike rim than traditional V-shaped rims, thanks to a slight widening of the rim, they are much stiffer. With a slightly angled brake track, they have better braking. And they are lightweight, fast, when hit a few windy sections, it could not fell a thing in the cross winds.



*  40mm depth 27.6 mm width rim with dimpled original appearance has excellent performances in climbing and acceleration with the advanced aerodynamics, it is ideally suited for racing and triathlon. Its stiff construction offer the ability to maintain higher speed and good cornering grip.



*  Filled with 3D weave, that will make the rim stable, safe and durable.



*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.



*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
