Name: |CW27A3325CT| 27.5er clincher tubeless compatible hookless asymmetric 33mm mountain bike carbon rims advanced tech made from CN
Brand: Cyclingwheel
SKU: CW27A3325CT
Price: 135.88 USD
Availability: InStock

Your position: Home / Mountain / Asymmetry 27.5 inch |27mm|28mm|33mm|36mm|38mm|

facebook
twitter
pinterest
vk
linkedin google digg reddit stumbleupon delicious

PDF Format

Price:

$135.88

~~$158.00~~

(14% OFF)

Please select the information you wantX

Weave:

UD

3K

12K

3K twill

12K twill
Finish:

Matt

Glossy

50% matt

Paintless Matt

Paintless Glossy
Version:

Standard XC 410g

Ultralight XC 350g
Holes:

24

28

32

36
Spokes holes type&Diameter:

Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)

Without outer holes(No need rim tapes Inner holes 4.5mm)

Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
Ships From:

China

Quantity:

Shipping Cost:

Description
Reviews

Basic info:

Item No.: CW27A3325CT
Material: Toray T1000+T700 Carbon Fiber
Rim Type: Hookless Clincher tubeless compatible
Warranty: 3 Years

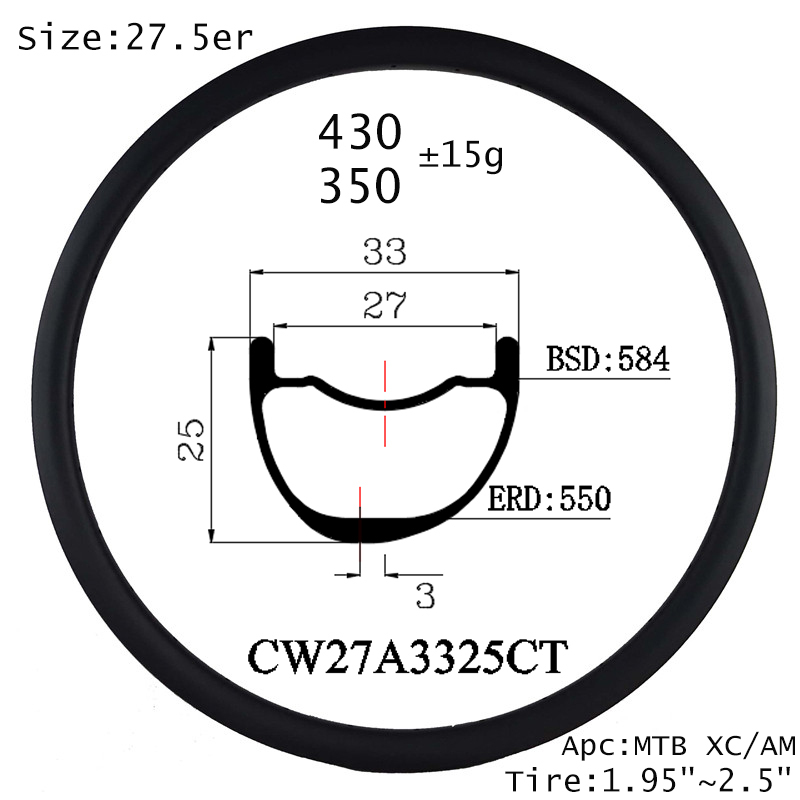

Dimension:

Size: 27.5er

BSD: 584mm
ERD: 550mm

External Width: 33mm
Spoke Hole Dia.: 4.5mm / 2.5mm

Depth: 25mm
Internal Width: 27mm

Valve Hole Dia.: 6.5mm

Hole count: 24, 28, 32, 36

Assembly Hole Dia.: 8.5mm
Weight: 430+/- 15g pcs (Standard XC),350+/- 15g pcs (Ultralight XC)

Recommendation data:
Tire Size: 1.95" ~2.5"

Max Spoke Tension: 110kgf
Weight Limit: 110kg

Max Tire Pressure: 65psi

Appearance:

Weave: UD/3K/12K/3K twill/12K twill

Finish: Matte / Glossy / Paintless Matt / Paintless Glossy

Application:

XC/AM race/ (cross country/all mountain),

Feature:

Clinhcer tubeless Compatible designed: This function means you can install clincher or tubeless two kinds of tyres are all perfectly.

Tech improvements:

* Single layer technical made,is the latest generation process made of the carbon rims,whether from inner and outside layers are all use one piece carbon fiber,so the rim will have good strength,and light weight.

* Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.

* 27.5er 33mm width 25mm depth asymmetry mountain carbon rim it's our light types and was designed according to the latest trend. By getting ride of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.

* Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.

* Hookless: By getting rid of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.

* Filled with 3D weave, that will make the rim stable, safe and durable.

* Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.

* 250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
