|CW29-2923CT| New arrival asymmetry carbon MTB XC rims 29mm width 23mm depth 29er for training/single track ride

29er 290g~365g asymmetry external 29mm internal 23mm depth 23mm hookless clincher tubeless tire 1.5" ~ 2.2" ERD 592mm XC carbon rims.
Price:
USD
$146.00
$165.00
    Please select the information you wantX
  • Weave:
    UD
    3K
    12K
    3K twill
    12K twill
  • Holes:
    24
    28
    32
    36
  • Finish:
    matt
    glossy
    50% matt
    Paintless Matt
    Paintless Glossy
  • Version:
    Standard 365g
    Ultralight 290g
  • Spokes holes type&Diameter:
    Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)
    Without outer holes(No need rim tapes Inner holes 4.5mm)
    Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
Quantity:
-
+
(998 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews(1)

Basic info:

  • Item No.: CW29-2923CT
  •
  • Material: Toray T700/T800+T700 Carbon Fiber
  •
  • Rim Type: Hookless Clincher tubeless compatible
  •
  • Warranty: 3 Years
  •

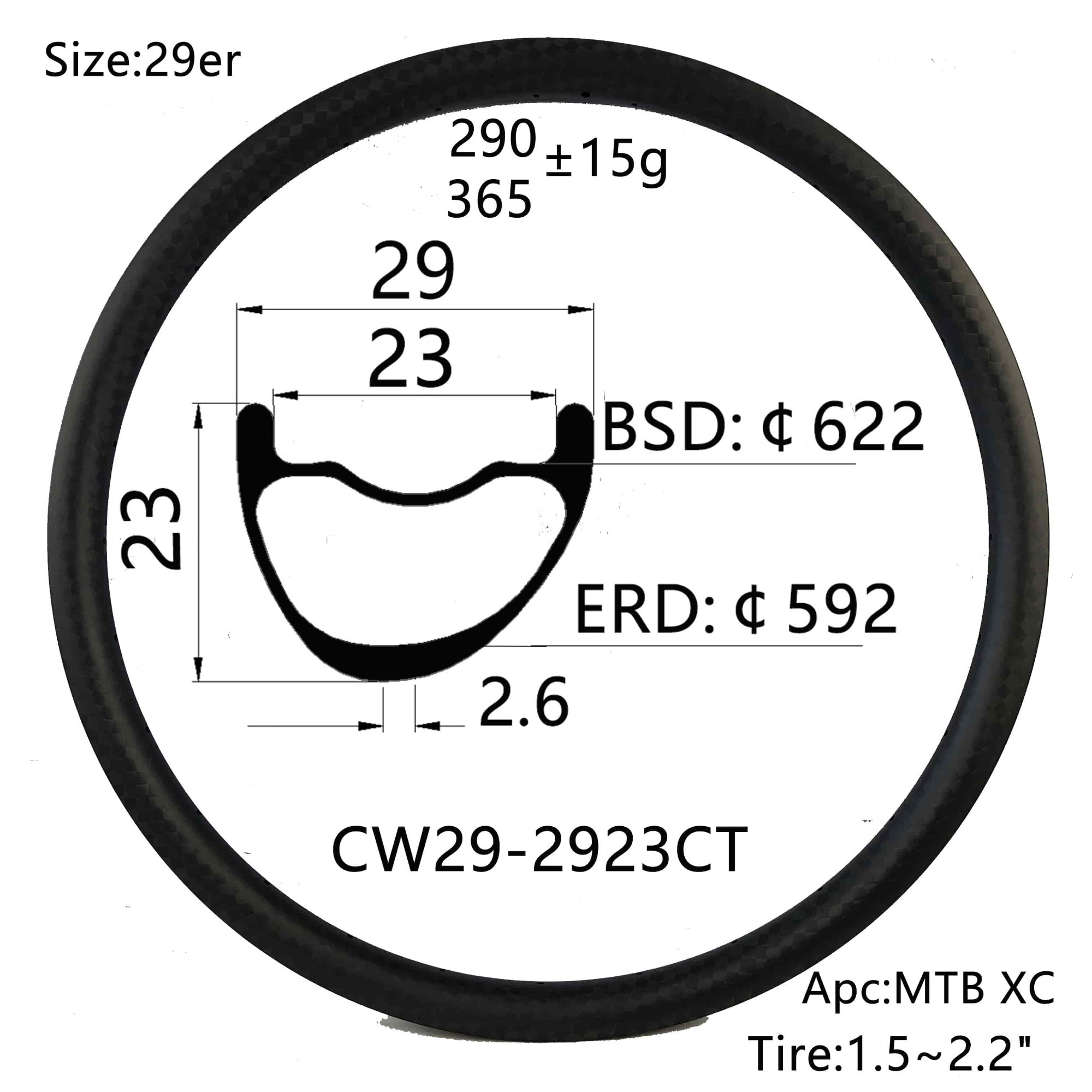

Dimension:

  • Size: 29er

    BSD: 622mm



  • ERD: 592mm

    External Width: 29mm



  • Spoke Hole Dia.: 4.5mm / 2.5mm

    Depth: 23mm



  • Internal Width: 23mm

    Valve Hole Dia.: 6.5mm


    Hole count: 24, 28, 32, 36

    Assembly Hole Dia.: 8.0mm



  • Weight: 290+/- 15g pcs (ultra light),365+/-15g (Standard)


    Recommendation  data:

  • Tire Size: 1.5" ~ 2.2"

    Max Spoke Tension: 130kgf



  •  Weight Limit: 110kg

     Max Tire Pressure: 70psi

    Appearance:

    Weave: UD/3K/12K/3K twill/12K twill

    Finish: Matte / Glossy /50% Matt /Paintless Matt /Paintless Glossy


Application:

XC / Marathon

Feature:

  • Clinhcer tubeless Compatible designed: This function means you can install clincher or tubeless two kinds of tyres are all perfectly.

Tech improvements:

* The ultralight version is new tech designed,(50% T800 and fixed T700 another) With Toray T800 carbon fiber it has more strongth and smaller density,but still keep T700 carbon weave with good tenacity characters.So the rims with more stronger,lighter,and durable.And strand version,just normal T700 carbon fiber,so it can do any carbon weave.

Ps: But ultralight version just can be do UD carbon weave,so if you need to ultralight/super light vesion,plz just choose UD carbon weave.

* 29er 29mm width carbon rims is single layer technical made,is the latest generation process made of the carbon rims,whether from inner and outside layers are all use one piece carbon fiber,so the rim will have good strength,and light weight.This wide XC/Marathon riding very comfortable.


*  Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.



*  The 29mm width it's our light types and was designed according to the latest trend. By getting ride of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.



*  Hookless: By getting rid of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.



*  Filled with 3D weave, that will make the rim stable, safe and durable.



*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.



*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
