Name: |CW29-4030CT| hot sale carbon aero wheel cover 29 inch MTB rims 40X30mm mountain cycles part hookless clincher and tubeless compatible XC/AM/DH velo
Brand: Cyclingwheel
SKU: CW29-4030CT
Price: 166.00 USD
Availability: InStock

Your position: Home / Mountain / 29er |24|27|30|31|35|36|40|50|52mm width

facebook
twitter
pinterest
vk
linkedin google digg reddit stumbleupon delicious

PDF Format

Price:

$166.00

~~$175.00~~

Please select the information you wantX

Weave:

UD

3K

12K

3K twill

12K twill
Holes:

24

28

32

36
Finish:

matt

glossy

50% matt

Paintless Matt

Paintless Glossy
Version:

Standard XC 440g

AM 460g

DH 520g
Spokes holes type&Diameter:

Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)

Without outer holes(No need rim tapes Inner holes 4.5mm)

Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
Ships From:

China

Quantity:

Shipping Cost:

Description
Reviews

Basic info:

Item No.: CW29-4030CT
Material: Toray T700/T800+T700 Carbon Fiber
Rim Type: Hookless Clincher tubeless compatible
Warranty: 3 Years

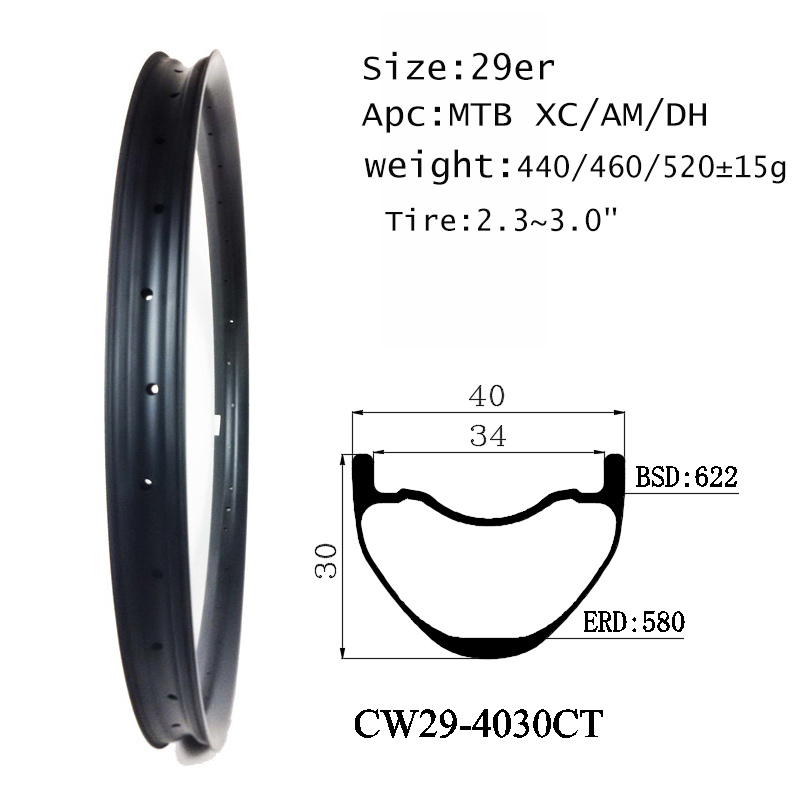

Dimension:

Size: 29er

BSD: 622mm
ERD: 580mm

External Width: 40mm
Spoke Hole Dia.: 4.5mm / 2.5mm

Depth: 30mm
Internal Width: 34mm

Valve Hole Dia.: 6.5mm

Hole count: 24, 28, 32, 36

Assembly Hole Dia.: 8.5mm
Weight: 450+/- 15g (XC) pcs,470g+/-15g (AM),520g+/-15g (DH)

Recommendation data:
Tire Size: 2.3" ~ 3.0"

Max Spoke Tension: 130kgf
Weight Limit: 120kg

Max Tire Pressure: 70psi

Appearance:

Weave: UD/3K/12K/3K twill/12K twill

Finish: Matte / Glossy

Application:

XC (cross country)/ AM (all mountain) /DH (downhill)

Feature:

Clinhcer tubeless Compatible designed: This function means you can install clincher or tubeless two kinds of tyres are all perfectly.

Tech improvements:

* The ultralight version is new tech designed,(50% T800 and fixed T700 another) With Toray T800 carbon fiber it has more strongth and smaller density,but still keep T700 carbon weave with good tenacity characters.So the rims with more stronger,lighter,and durable.And strand version,just normal T700 carbon fiber,so it can do any carbon weave.
Ps: But ultralight version just can be do UD carbon weave,so if you need to ultralight/super light vesion,plz just choose UD carbon weave.

* Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.

* 29'' 40mm width 30 depth carbon mtb rims is latest technical manufacture,and generation process made of the carbon rims,whether from inner and outside layers are all use one piece carbon fiber,so the rim will have good strength,and light weight.This wide suitable for XC/AM/DH all mountain bike cycle.

* The 40mm width it's advantages technology design and new trend. By getting ride of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.

* Hookless: By getting rid of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.

* Filled with 3D weave, that will make the rim stable, safe and durable.

* Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.

* 250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
