|CW29A3123.5| Carbon rims asymmetry design 29inch width 31mm 23.5mm depth cycle wave 28 holes wheel off set MTB mountain cycle

29inch 290g external 31mm internal 26mm depth 23.5mm hookless clincher tubeless tire 1.6" ~ 2.5" ERD 591mm MTB wheel 28 holes carbon cycle parts.
Price:
USD
$167.70
$195.00
(14% OFF)
    Please select the information you wantX
  • Weave:
    UD
    3K
    12K
    3K twill
    12K twill
    3K twill
    Marble
  • Finish:
    Matt
    Glossy
    50% matt
    Paintless Matt
    Paintless Glossy
  • Holes:
    28
  • Spokes holes type&Diameter:
    Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)
    Without outer holes(No need rim tapes Inner holes 4.5mm)
    Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
Quantity:
-
+
(996 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews

Basic info:

  • Item No.: CW29A3123.5
  •
  • Material: Toray T800+T700 Carbon Fiber
  •
  • Rim Type: Hookless Clincher tubeless compatible
  •
  • Warranty: 3 Years

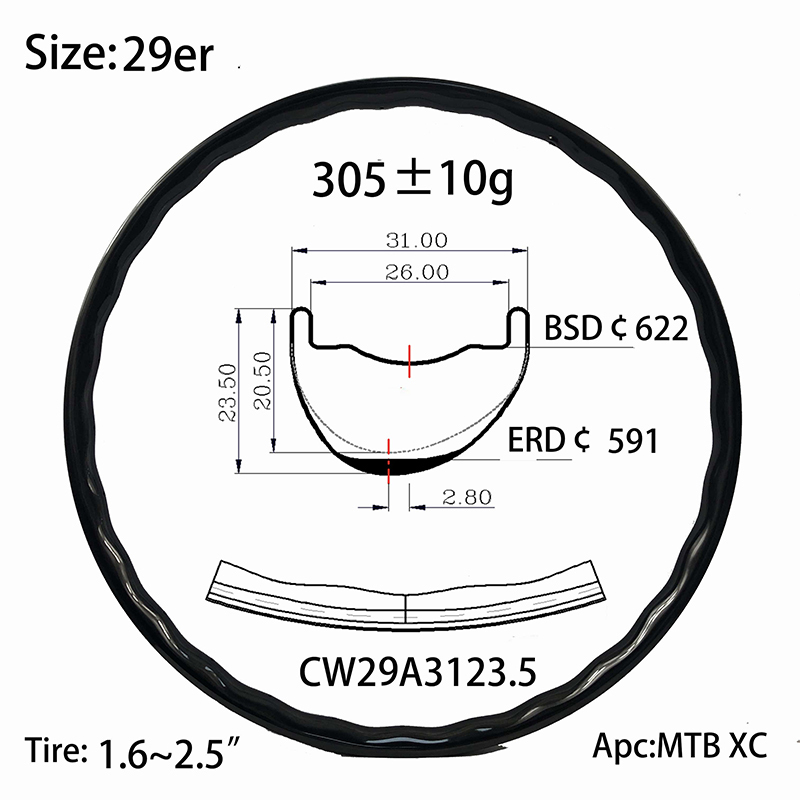

Dimension:

  • Size: 29er

    BSD: 622mm (ISO Standard)



  • ERD: 591mm (don't inclued nipples hed)

    External Width: 31mm



  • Spoke Hole Dia.: 4.5mm / 2.3mm

    Depth:23.5mm


    Internal Width: 26mm

    Valve Hole Dia.: 6.5mm

    Hole count: 28

    Assembly Hole Dia.: 7.5mm


    Weight:305+/- 15g pcs

  • Recommendation  data:

  • Tire Size: 1.6" ~ 2.5"

    Max Spoke Tension: 130kgf



  •  Weight Limit: 90kg

    Max Tire Pressure: 70psi



Application:

XC/Cross Country

Appearance:

Weave: UD/3K/12K/3K twill/12K twill

Finish: Matte / Glossy / 50%Matt / Paintless Matt / Paintless Glossy

Feature:

  • Tubular tyres designed: This function means need to used special glues to assemble the tyres and will let the wheels solid and burly.

Tech improvements:

* Single layer technical made,is the latest generation process made of the carbon rims,whether from inner and outside layers are all use one piece carbon fiber,so the rim will have good strength,and light weight.



*  29 inch carbon rims 29mm width it's our special designed with stronger downhill racing. Designed according to the latest trend. By getting ride of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.

*  Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.



*  Hookless: By getting rid of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.



*  Filled with 3D weave, that will make the rim stable, safe and durable.



*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.



*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
