Name: |CW29A3323.5| Carbon rims asymmetry design 29inch width 33mm 23.5mm depth cycle wave 28 holes wheel off set MTB mountain cycle
Brand: Cyclingwheel
SKU: CW29A3323.5
Price: 161.68 USD
Availability: InStock

Your position: Home / Mountain / 29er wave shape

facebook
twitter
pinterest
vk
linkedin google digg reddit stumbleupon delicious

PDF Format

Price:

$161.68

~~$188.00~~

(14% OFF)

Please select the information you wantX

Weave:

UD

3K

12K

3K twill

12K twill

3K twill

Marble
Finish:

Matt

Glossy

50% matt

Paintless Matt

Paintless Glossy
Holes:

28
Spokes holes type&Diameter:

Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)

Without outer holes(No need rim tapes Inner holes 4.5mm)

Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
Ships From:

China

Quantity:

Shipping Cost:

Description
Reviews

Basic info:

Item No.: CW29A3323.5
Material: Toray T800+T700 Carbon Fiber
Rim Type: Hookless Clincher tubeless compatible
Warranty: 3 Years

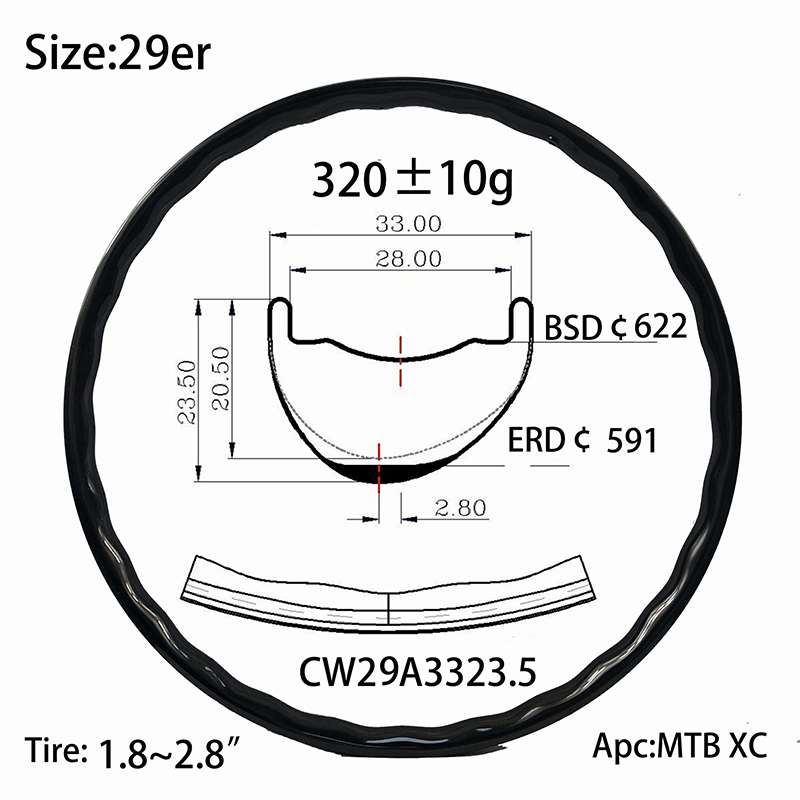

Dimension:

Size: 29er

BSD: 622mm (ISO Standard)
ERD: 591mm (don't inclued nipples hed)

External Width: 33mm
Spoke Hole Dia.: 4.5mm / 2.3mm

Depth:23.5mm

Internal Width: 28mm

Valve Hole Dia.: 6.5mm

Hole count: 28

Assembly Hole Dia.: 7.5mm

Weight:305+/- 15g pcs
Recommendation data:
Tire Size: 1.8" ~ 2.8"

Max Spoke Tension: 130kgf
Weight Limit: 90kg

Max Tire Pressure: 70psi

Application:

XC/Cross Country

Appearance:

Weave: UD/3K/12K/3K twill/12K twill

Finish: Matte / Glossy / 50%Matt / Paintless Matt / Paintless Glossy

Feature:

Tubular tyres designed: This function means need to used special glues to assemble the tyres and will let the wheels solid and burly.

Tech improvements:

* Single layer technical made,is the latest generation process made of the carbon rims,whether from inner and outside layers are all use one piece carbon fiber,so the rim will have good strength,and light weight.

* 29 inch carbon rims 29mm width it's our special designed with stronger downhill racing. Designed according to the latest trend. By getting ride of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.

* Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.

* Hookless: By getting rid of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.

* Filled with 3D weave, that will make the rim stable, safe and durable.

* Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.

* 250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
