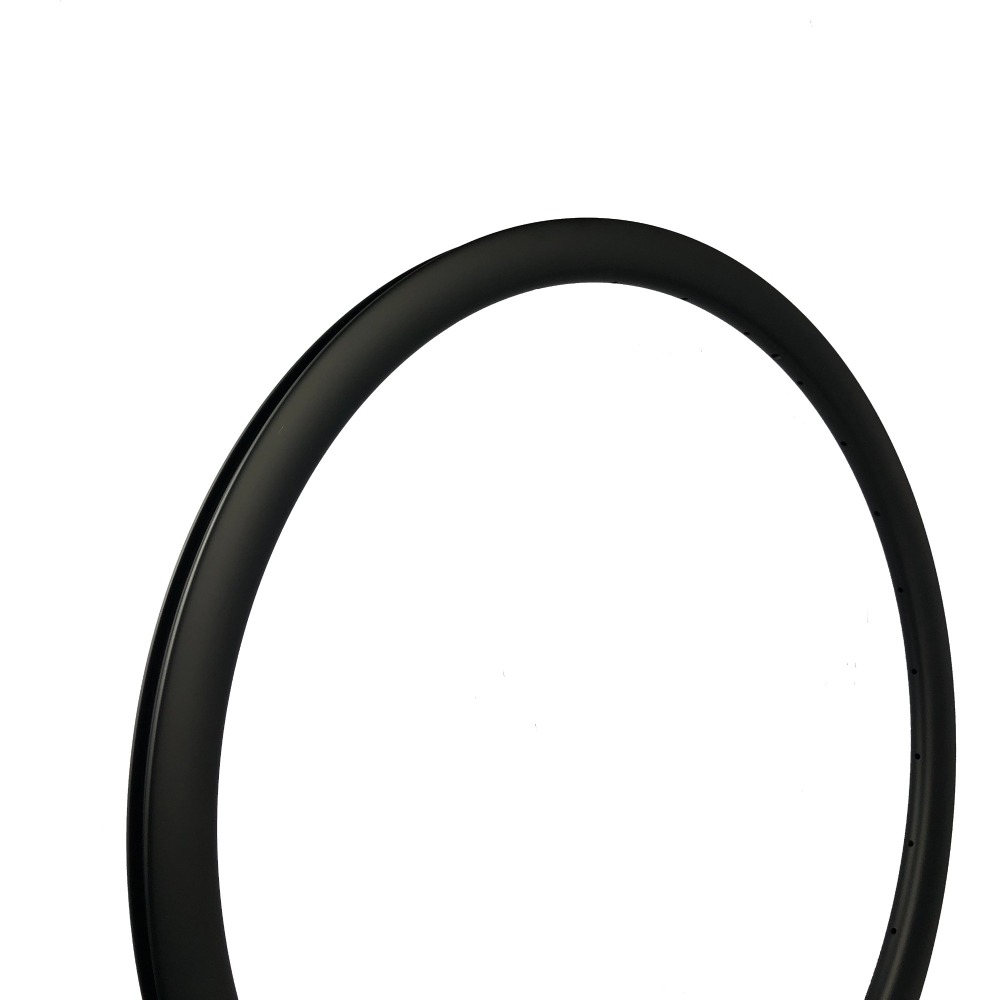

|CW29A35CT| 700C/29er bike carbon rims asymmetry 2.5mm 29mm width 35mm depth gravel cyclocross disc brake/V brake road both available hot production

700C/29er 375g~420g external 29mm internal 22mm depth 35mm clincher tubeless compatible tires ERD 568.6mm gravel disc brake/V brake road bike carbon rims standard/ultralight version asymmetry shape.
Price:
USD
$166.00
$183.00
    Please select the information you wantX
  • Weave:
    UD
    3K
    12K
    3K twill
    12K twill
  • Finish:
    matt
    glossy
    50% matt
    Paintless Matt
    Paintless Glossy
  • Holes:
    16
    18
    21
    24
    28
    32
    36
    21(G3)
  • Version:
    Ultralight 375g
    Standard 420g
  • Brake system:
    V brake(high TG brake suface)
    Disc brake (no brake line)
  • Spokes holes type&Diameter:
    Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)
    Without outer holes(No need rim tapes Inner holes 4.5mm)
    Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
Quantity:
-
+
(993 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews(1)

Basic info:

  • Item No.: CW29A35CT
  •
  • Material: Toray T700/T800+T700 Carbon Fiber
  •
  • Rim Type: Clincher tubeless compatible
  •
  • Warranty: 3 Years
  •
  • Standard: EN Standard
  •
  • Brake system:Disc brake/V brake

Dimension:

  • Size: 700C / 29er

    BSD: 622mm (ISO Standard)



  • ERD: 568.6mm (don't inclued nipples hed)

    External Width: 29mm



  • Spoke Hole Dia.: 4.5mm / 2.5mm

    Depth:35mm


    Internal Width: 22mm(clincher tubeless compatible)

    Valve Hole Dia.: 6.5mm

    Hole count: 16,18,20,21,24, 28, 32, 36 ,21 G3 lacing

    Assembly Hole Dia.: 8.0mm


    Weight:420/375+/- 20g (Standard/Ultralight)

  • Recommendation  data:

  •  Max Spoke Tension: 130kgf


  •  Weight Limit: 90kg

    Max Tire Pressure: 130psi



    Application:

  • Road / Track (fixed gear) / Cyclocross / Triathlon / Time Trial (TT)
  • Appearance:

    Weave: UD/3K/12K/3K twill/12K twill

    Finish: Matte / Glossy / 50%Matt / Paintless Matt / Paintless Glossy

Feature:

  • Clinhcer tubeless Compatible designed: This function means you can install clincher or tubeless two kinds of tyres are all perfectly.

Tech improvements:

* The ultralight version is new tech designed,(50% T800 and fixed T700 another) With Toray T800 carbon fiber it has more strongth and smaller density,but still keep T700 carbon weave with good tenacity characters.So the rims with more stronger,lighter,and durable.And strand version,just normal T700 carbon fiber,so it can do any carbon weave.
Ps: But ultralight version just can be do UD carbon weave,so if you need to ultralight/super light vesion,plz just choose UD carbon weave.

* The U shape Asymmetry rims are our new design, they are with 29mm tire width, have a wider spacing between the bike rim than traditional V-shaped rims, thanks to a slight widening of the rim, they are much stiffer. With a slightly angled brake track, they have better braking. And they are lightweight, fast, when hit a few windy sections, it could not fell a thing in the cross winds.



*  35mm depth 29mm width rim has excellent performances in climbing and acceleration with the advanced aerodynamics, it is ideally suited for racing and triathlon. Its stiff construction offer the ability to maintain higher speed and good cornering grip.



*  High TG 240 degrees and high heat-resistant basalt braking surface improve heat dissipation, effectively reduce the impact in heat caused by braking to provide you with reliability and stopping power.



*  Filled with 3D weave, that will make the rim stable, safe and durable.



*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.



*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
