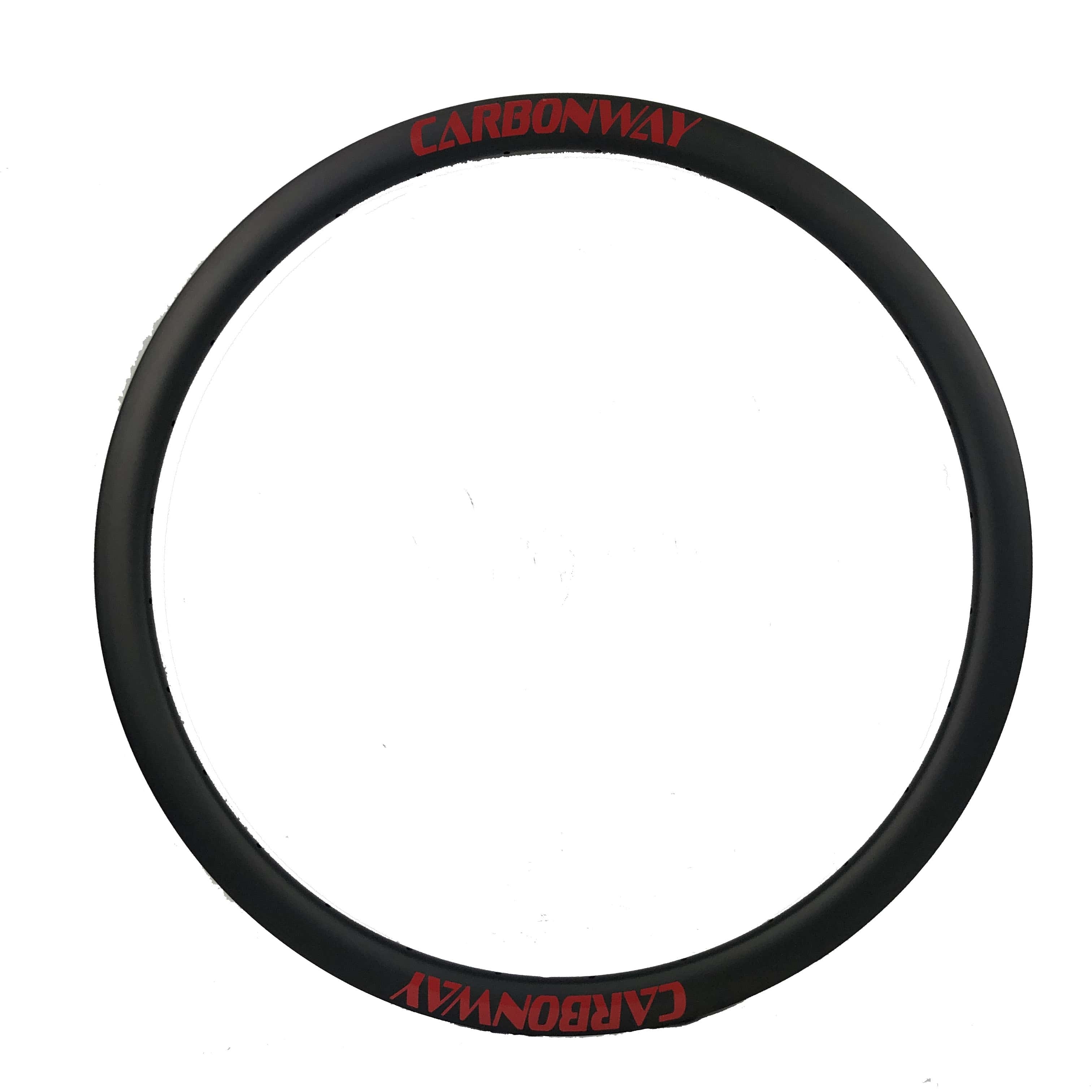

Name: |CW29A3628CT| No tax way shipping to European country France light bicycle carbon rims asymmetry 29er 36mm wide 28mm depth mountain wheel clincher tub
Brand: Cyclingwheel
SKU: CW29A3628CT
Price: 141.90 USD
Availability: InStock
Rating: 5 (1 reviews)

Your position: Home / Mountain / Asymmetry 29 inch |27|29|28|30|33|36|38mm|

facebook
twitter
pinterest
vk
linkedin google digg reddit stumbleupon delicious

PDF Format

Price:

$141.90

~~$165.00~~

(14% OFF)

Please select the information you wantX

Weave:

UD

3K

12K

3K twill

12K twill
Holes:

24

28

32

36
Finish:

matt

glossy

50% matt

Paintless Matt

Paintless Glossy
Version:

Ultralight 390g

Standard 450g
Spokes holes type&Diameter:

Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)

Without outer holes(No need rim tapes Inner holes 4.5mm)

Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
Ships From:

China

Quantity:

Shipping Cost:

Description
Reviews(1)

Basic info:

Item No.: CW29A3628CT
Material: Toray T1000+T700 Carbon Fiber
Rim Type: Hookless Clincher tubeless compatible
Warranty: 3 Years

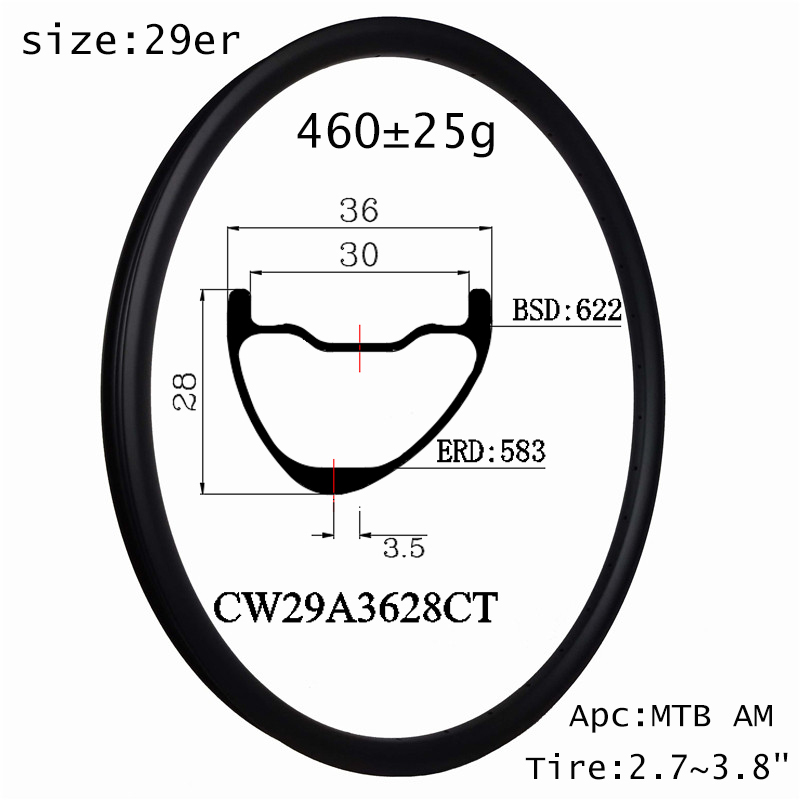

Dimension:

Size: 29er

BSD: 622mm
ERD: 583mm

External Width: 36mm
Spoke Hole Dia.: 4.5mm / 2.3mm

Depth: 28mm
Internal Width: 30mm

Valve Hole Dia.: 6.5mm

Hole count: 24, 28, 32, 36

Assembly Hole Dia.: 7.5mm
Weight: 450±15g pcs (Standard XC), 390±15g pcs (Ultralight)

Recommendation data:
Tire Size: 1.95" ~2.5"

Max Spoke Tension: 110kgf
Weight Limit: 110kg

Max Tire Pressure: 65psi

Appearance:

Weave: UD/3K/12K/3K twill/12K twill

Finish: Matte / Glossy / Paintless Matt / Paintless Glossy

Application:

XC race (cross country),

Feature:

Clinhcer tubeless Compatible designed: This function means you can install clincher or tubeless two kinds of tyres are all perfectly.

Tech improvements:

* Single layer technical made,is the latest generation process made of the carbon rims,whether from inner and outside layers are all use one piece carbon fiber,so the rim will have good strength,and light weight.

* 29 inch carbon rims 36mm width 28mm depth it's our light types and was designed according to the latest trend. By getting ride of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.

* Hookless: By getting rid of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.

* Filled with 3D weave, that will make the rim stable, safe and durable.

* Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.

* 250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
