Name: |CW3134T/C/CT| New development all road carbon bike rims tubular/clincher/tubeless compatible cycle wheels hot sell to Australan riders love
Brand: Cyclingwheel
SKU: CW3134T/C/CT
Price: 143.10 USD
Availability: InStock

Your position: Home / Gravel / 31mm width

facebook
twitter
pinterest
vk
linkedin google digg reddit stumbleupon delicious

PDF Format

Price:

$143.10

~~$159.00~~

(10% OFF)

Please select the information you wantX

Weave:

UD

3K

12K

3K twill

12K twill

3K twill
Tyres&Weight:

Tubular 310g

Tubular 360g

Clincher tubeless 390g

Clincher tubeless 440g

Hookless Clincher 390g

Hookless clincher 440g
Finish:

Matt

Glossy

50% matt

Paintless Matt

Paintless Glossy
Holes:

20

24

28

32

36
Brake system:

V brake(high TG brake suface)

Disc brake (no brake line)
Spokes holes type&Diameter:

Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)

Without outer holes(No need rim tapes Inner holes 4.5mm)

Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
Ships From:

China

Quantity:

Shipping Cost:

Description
Reviews

Basic info:

Item No.: CW3134T/C/CT
Material: Toray T700/T800+T700 Carbon Fiber
Rim Type:Tubular/Clincher tubeless compatible/Hookless clincher tubeless compatible
Warranty: 3 Years
Standard: EN Standard
Brake system:Disc brake/V brake

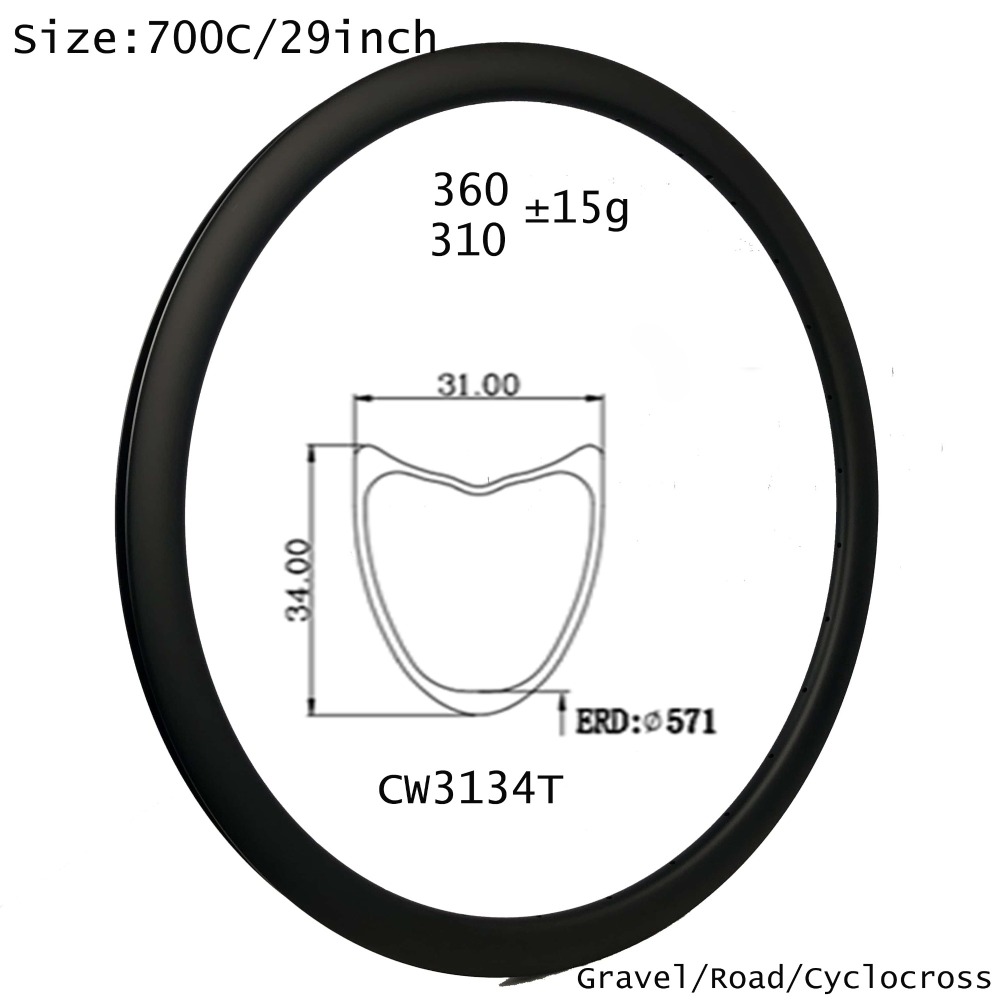

Dimension:

Size: 700C / 29er

BSD: 622mm (ISO Standard)
ERD: 571mm (don't inclued nipples hed)

External Width: 31mm
Spoke Hole Dia.: 4.5mm / 2.3mm

Depth:34mm

Internal Width: 24mm(clincher tubeless compatible)

Valve Hole Dia.: 6.5mm

Hole count: 16,18,20,21,24, 28, 32, 36 ,21 G3 lacing

Assembly Hole Dia.: 7.5mm

Weight: Tubular:360/310±20g (Standard version/Ultralight)

Clincher tubeless:440/390±20g (Standard version/Ultralight)

Hookless clincher tubeless:440/390±20g (Standard version/Ultralight)
Recommendation data:
Max Spoke Tension: 130kgf
Weight Limit: 90kg

Max Tire Pressure: 130psi

Application:

Road / Track (fixed gear) / Cyclocross / Triathlon / Time Trial (TT)

Appearance:

Weave: UD/3K/12K/3K twill/12K twill

Finish: Matte / Glossy / 50%Matt / Paintless Matt / Paintless Glossy

Feature:

Clinhcer tubeless Compatible designed: This function means you can install clincher or tubeless two kinds of tyres are all perfectly.

Tech improvements:

* The ultralight version is new tech designed,(50% T800 and fixed T700 another) With Toray T800 carbon fiber it has more strongth and smaller density,but still keep T700 carbon weave with good tenacity characters.So the rims with more stronger,lighter,and durable.And strand version,just normal T700 carbon fiber,so it can do any carbon weave.
Ps: But ultralight version just can be do UD carbon weave,so if you need to ultralight/super light vesion,plz just choose UD carbon weave.

* The U shape rims are our new design, they are with 31mm tire width, have a wider spacing between the bike rim than traditional V-shaped rims, thanks to a slight widening of the rim, they are much stiffer. With a slightly angled brake track, they have better braking. And they are lightweight, fast, when hit a few windy sections, it could not fell a thing in the cross winds.

* 34mm depth 31mm width rim has excellent performances in climbing and acceleration with the advanced aerodynamics, it is ideally suited for racing and triathlon. Its stiff construction offer the ability to maintain higher speed and good cornering grip.

* High TG 240 degrees and high heat-resistant basalt braking surface improve heat dissipation, effectively reduce the impact in heat caused by braking to provide you with reliability and stopping power.

* Filled with 3D weave, that will make the rim stable, safe and durable.

* Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.

* 250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
