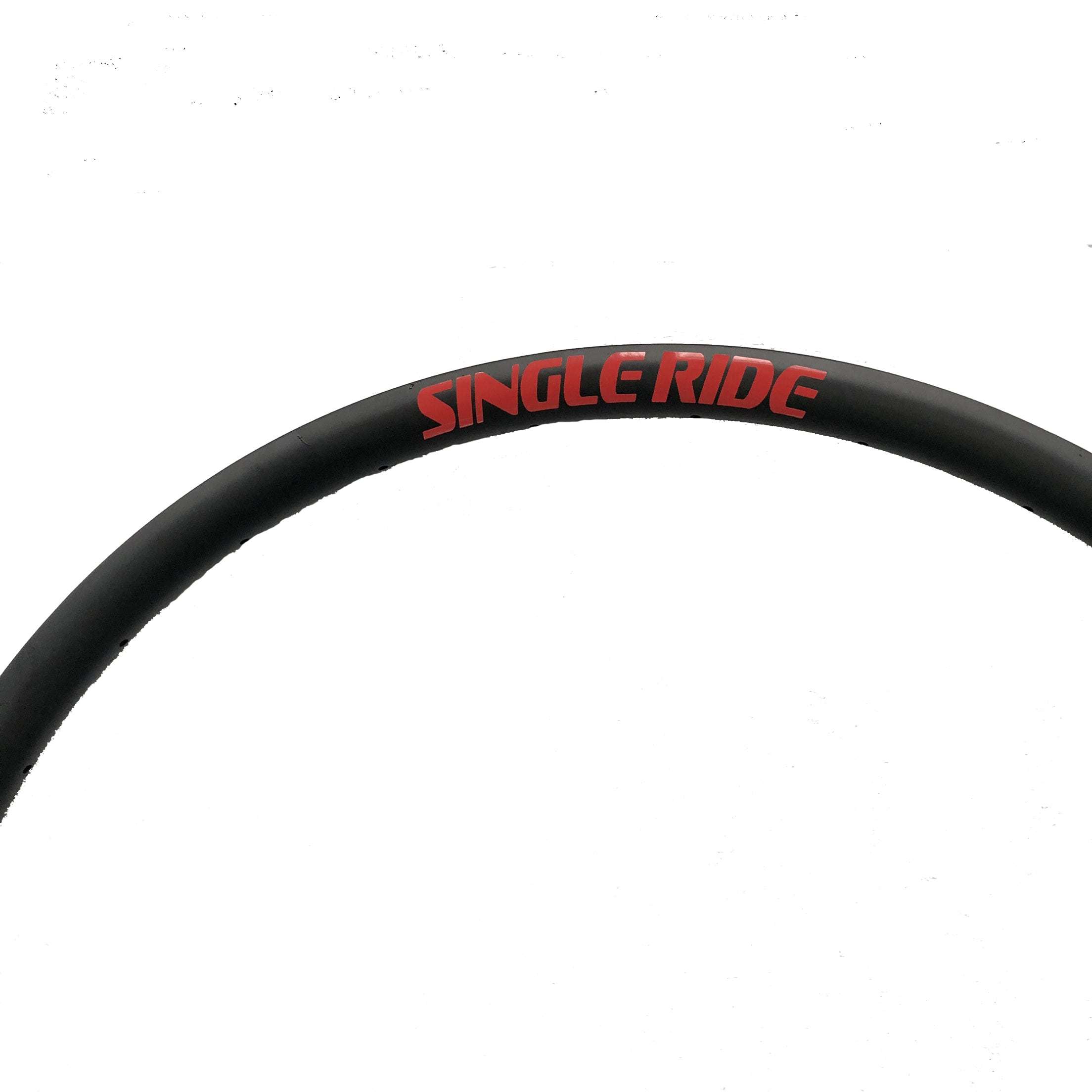

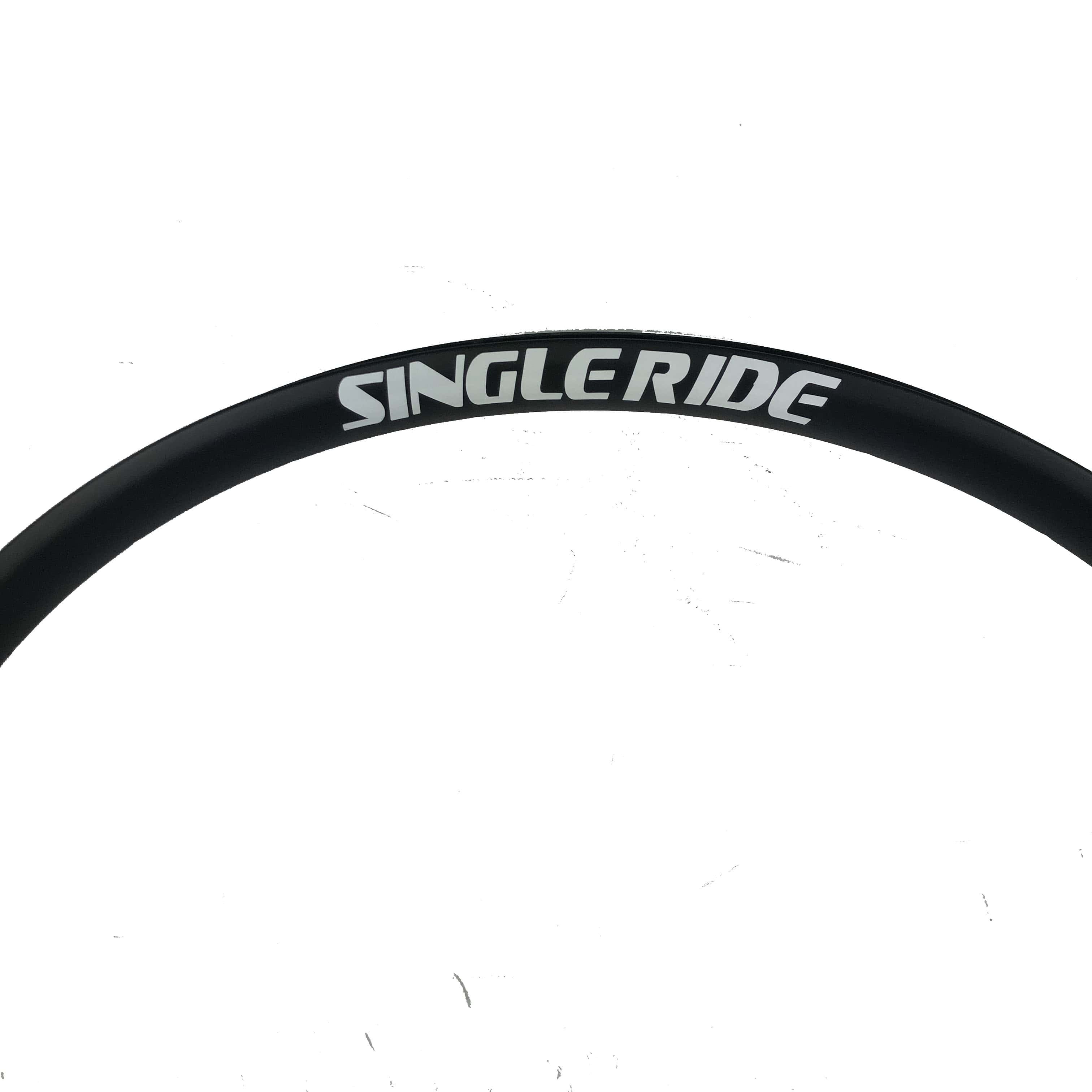

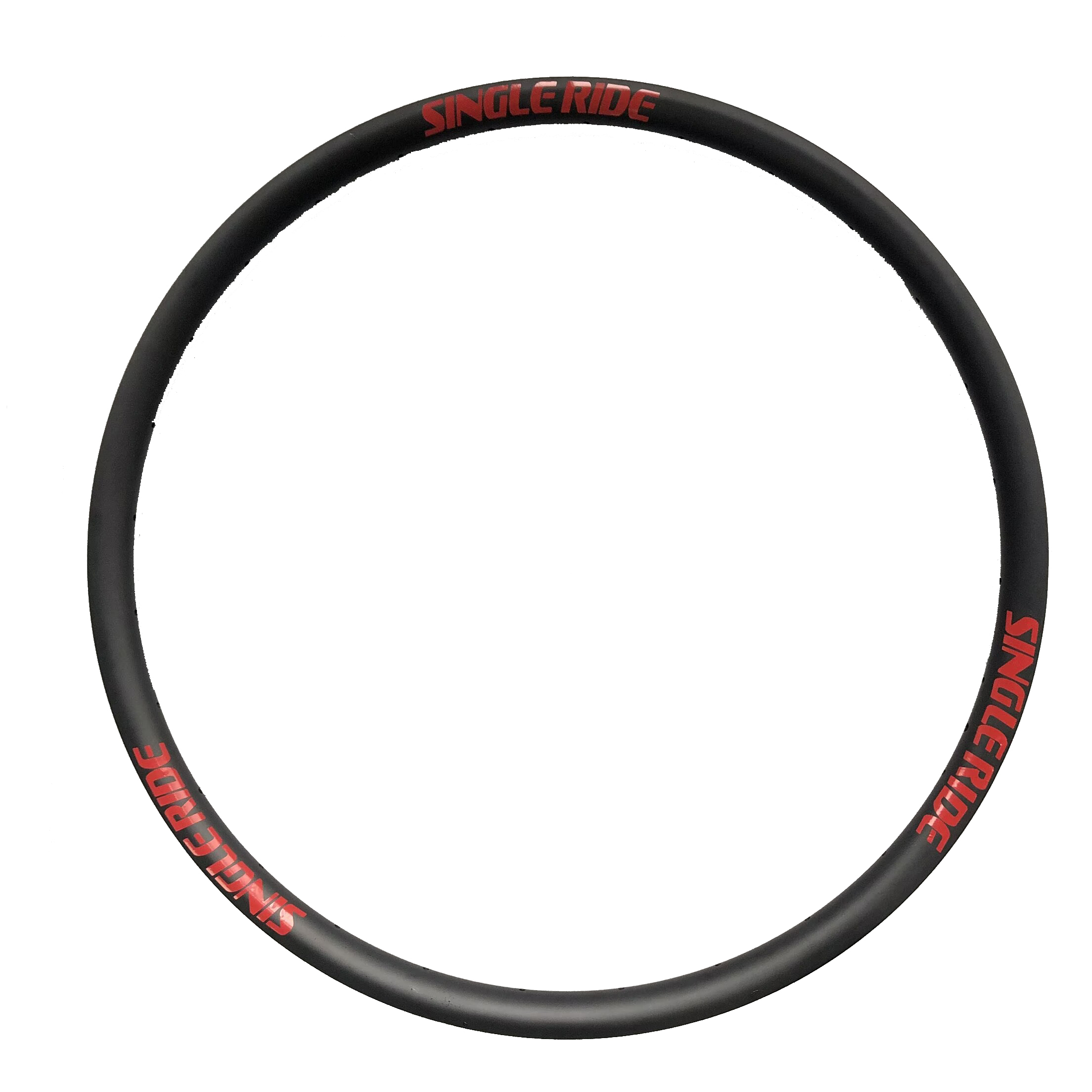

|CW32-3628CT| 32inch bike carbon rim 36mm width 28mm depth hooked hookless tires 480g light weight cycling wheel

Basic info:

• Item No.: CW32-3628CT-AM
•
• Material: Toray T700/T800+T700 Carbon Fiber
•
• Rim Type: Hookless Clincher tubeless compatible
•
• Warranty: 3 Years

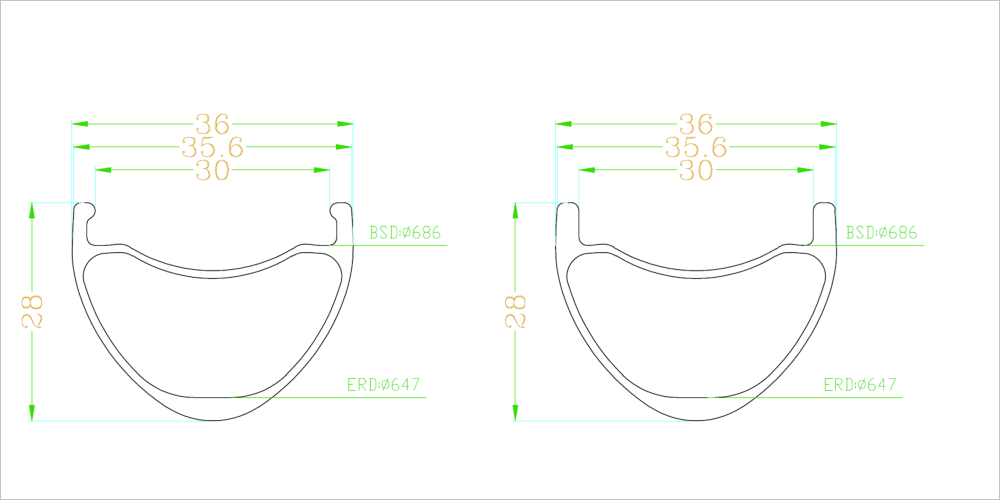

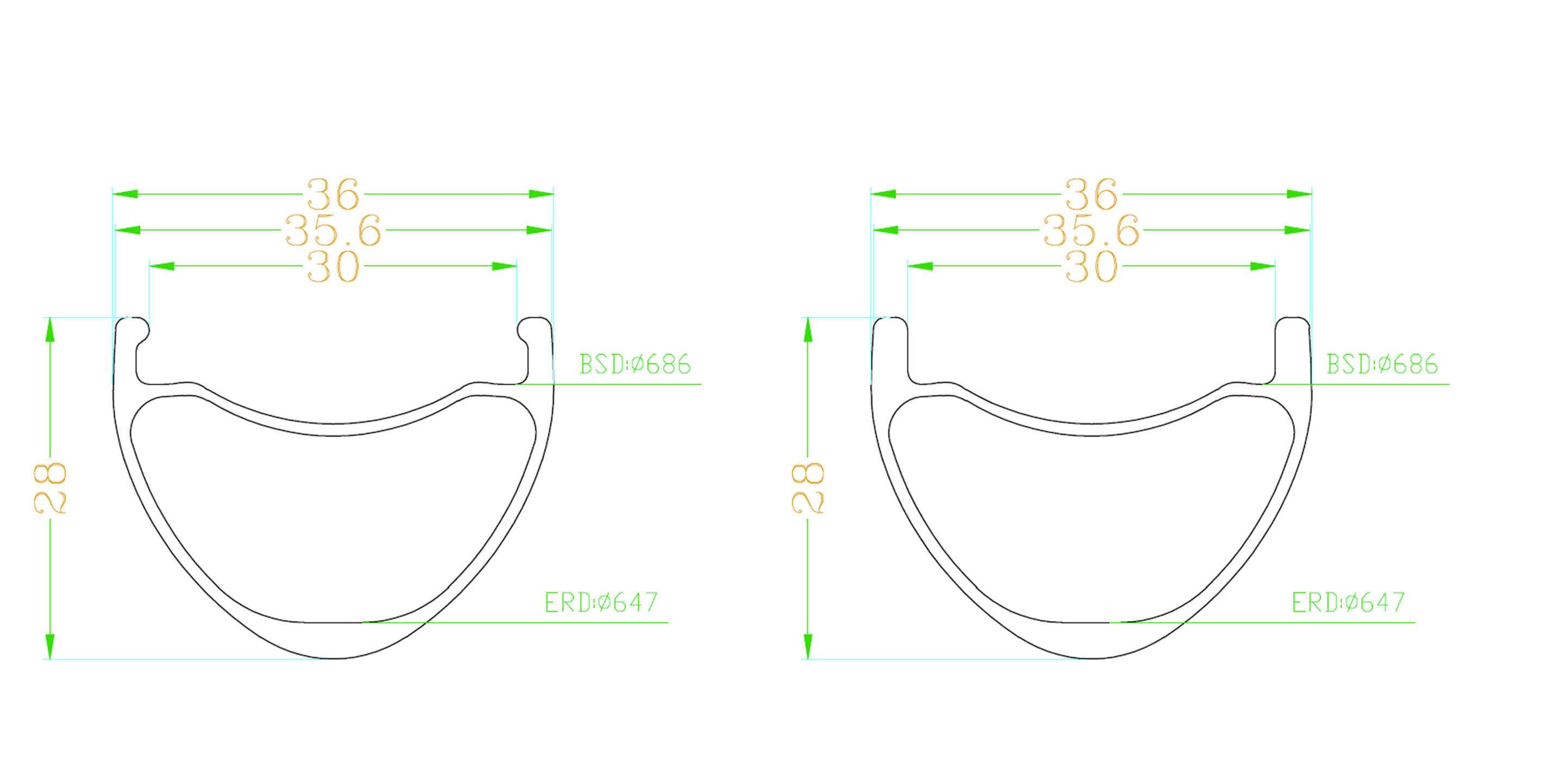

Dimension:

• Size: 32er

  BSD: 686mm (ISO Standard)


• ERD: 647mm (don't inclued nipples hed)

  External Width: 36mm


• Spoke Hole Dia.: 4.5mm / 2.3mm

  Depth:28mm

  Internal Width: 30mm

  Valve Hole Dia.: 6.5mm

  Hole count: 24, 28, 32, 36

  Assembly Hole Dia.: 7.5mm

  Weight:480 +/- 15g pcs (ultralight/standard version)

• Recommendation  data:

• Tire Size: 2.3" ~ 3.0"

  Max Spoke Tension: 130kgf


•  Weight Limit: 120kg

  Max Tire Pressure: 70psi



Application:

AM/All Mountain

Appearance:

Weave: UD/3K/12K/3K twill/12K twill

Finish: Matte / Glossy / 50%Matt / Paintless Matt/ Paintless Glossy

Feature:

• Tubular tyres designed: This function means need to used special glues to assemble the tyres and will let the wheels solid and burly.

Tech improvements:

* The ultralight version is new tech designed,(50% T800 and fixed T700 another) With Toray T800 carbon fiber it has more strongth and smaller density,but still keep T700 carbon weave with good tenacity characters.So the rims with more stronger,lighter,and durable.And strand version,just normal T700 carbon fiber,so it can do any carbon weave.

Ps: But ultralight version just can be do UD carbon weave,so if you need to ultralight/super light vesion,plz just choose UD carbon weave.

*  Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.

* Single layer technical made,is the latest generation process made of the carbon rims,whether from inner and outside layers are all use one piece carbon fiber,so the rim will have good strength,and light weight.

*  29 inch carbon rims 38mm width it's our special designed with stronger all mountain racing. Designed according to the latest trend. By getting ride of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.

*  Hookless: By getting rid of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.

*  Filled with 3D weave, that will make the rim stable, safe and durable.

*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.

*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
