Name: |CW355-40CT| Carbon fiber 355/18er 25mm width 40mm depth BMX cincher tubeless compatible rim V brake/Disc brake both acception
Brand: Cyclingwheel
SKU: CW355-40CT
Price: 145.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Your position: Home / BMX / BMX rims

facebook
twitter
pinterest
vk
linkedin google digg reddit stumbleupon delicious

PDF Format

Price:

$145.00

~~$159.00~~

Please select the information you wantX

Weave:

UD

3K

12K

3K twill

12K twill

3K twill
Finish:

matt

glossy

50% matt

Paintless Matt

Paintless Glossy
Holes:

16

18

21

24

28

32

36

21(G3)
Brake system:

V brake(high TG brake suface)

Disc brake (no brake line)
Spokes holes type&Diameter:

Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)

Without outer holes(No need rim tapes Inner holes 4.5mm)

Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
Ships From:

China

Quantity:

Shipping Cost:

Description
Reviews(1)

Basic info:

Item No.: CW355-40CT
Material: Toray T800+T700 Carbon Fiber
Rim Type: Clincher tubeless compatible
Warranty: 3 Years
Standard: EN Standard
Brake system:Disc brake/V brake

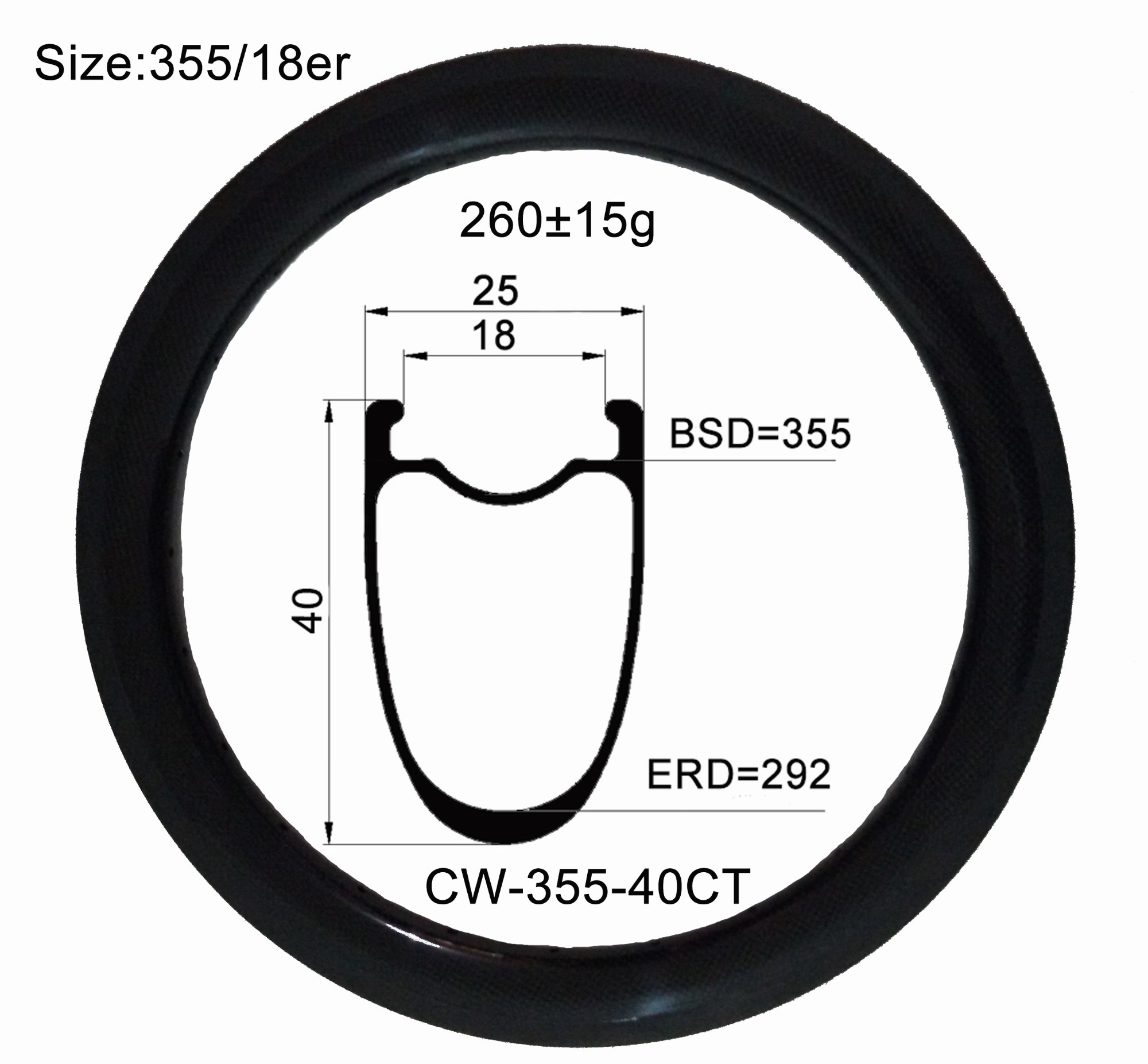

Dimension:

Size: 355/18er

BSD:355mm (ISO Standard)
ERD:292mm (don't inclued nipples hed)

External Width: 25mm
Spoke Hole Dia.: 4.5mm / 2.3mm

Depth:40mm

Internal Width: 18mm(clincher)

Valve Hole Dia.: 6.5mm

Hole count: 16,18,20,21,24, 28, 32, 36 ,21 G3 lacing

Assembly Hole Dia.: 7.5mm

Weight:260+/- 15g pcs
Recommendation data:
Max Spoke Tension: 110kgf
Weight Limit: 100kg

Max Tire Pressure: 60psi

Application:

Road / Track (fixed gear) / Cyclocross / Triathlon / Time Trial (TT)

Appearance:

Weave: UD/3K/12K/3K twill/12K twill

Finish: Matte / Glossy/ 50%Matt/ Paintless Matt/Paintless Glossy

Tech improvements:

355/18er 25mm width clincher tubeless compatible 40mm depth carbon rims are our new design thanks to a slight widening of the rim, they are much stiffer. With a slightly angled brake track, they have better braking. And they are lightweight, fast, when hit a few windy sections, it could not fell a thing in the cross winds.

* Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.

* High TG 240 degrees and high heat-resistant basalt braking surface improve heat dissipation, effectively reduce the impact in heat caused by braking to provide you with reliability and stopping power.

* Filled with 3D weave, that will make the rim stable, safe and durable.

* Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.

* 250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.

* Can be offered V brake/Disc brake system.
