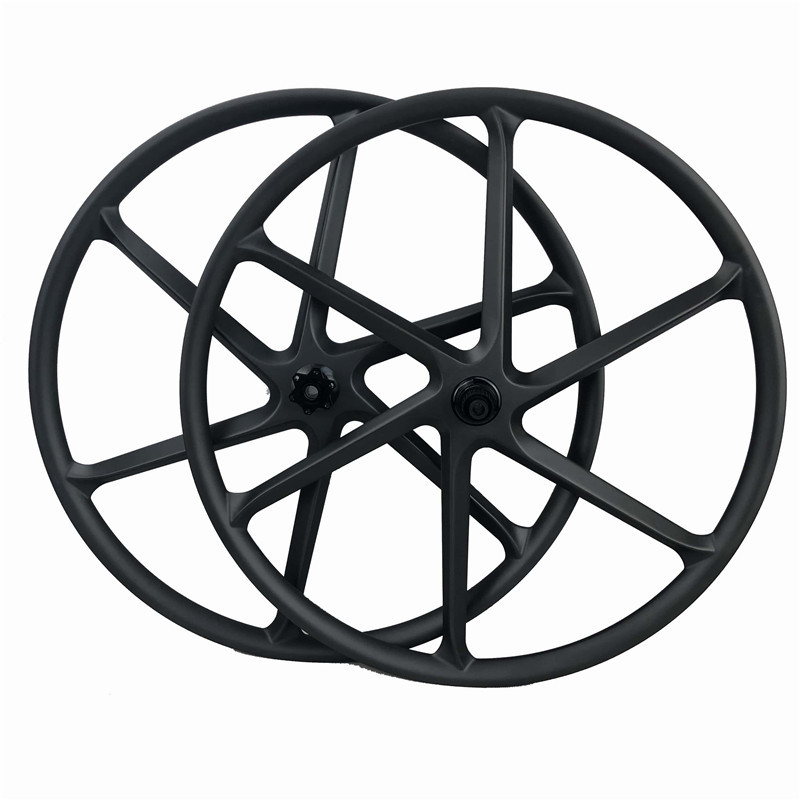

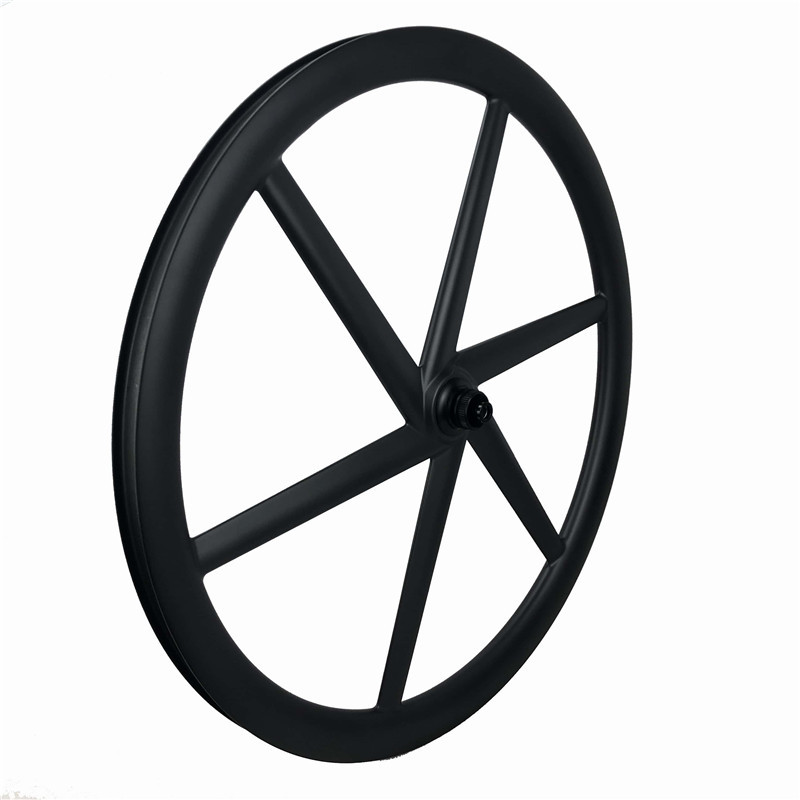

|CW36-25CT-27.5|27.5er Carbon 6/Six Spoke wheels Wide 36mm depth 25mm XC AM E-Bike available MTB Wheelset Novatec/DT swiss 240s hubs

27.5er 830g~970g external 36mm internal 25mm depth clincher tubeless tires MTB disc brake 6/six spoke mountain bike/E-bike compatibility wheels with DT swiss 240s/Novatec D411 hubs.
(14% OFF)
    Please select the information you wantX
  • Weave:
    3K twill
    12K twill
  • Bike type:
    MTB XC
    MTB AM
  • Finish:
    50% matt
    Paintless Matt
    Paintless Glossy
  • Rim type:
    Clincher tubeless compatible
  • Location:
    1 Pair Quick Release 100/135mm
    1 Pair thru axle 100X15mm/142X12mm
    1 Pair boost 110X15mm/148X12mm
  • Hub brands:
    DT 240 EXP
    Novatec hub
  • Cassette body:
    Shimano 11s
    Sram XD 11s
    Microspline 12s
  • Brake System:
    6 Bolt
(997 available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews(2)

Basic info:


Rim Width:36mm

Rim Depth: 25mm

Material:Toray 100% full carbon T700

Spoke:Six/6 spoke

Hub:Novatec/DT swiss

Tire Profile:Clincher tubeless compatible

Carbon Weave:UD/3K/12K/3K twill/12K twill

Finish:Matt/Glossy/50%Matt/Paintless Matt/Paintless Glossy

Warranty:2 years



* AM 1pair Weight 1980g±100g


* E-bike 1 pair Weigth :2100g±100g

Logo painting:None,OEM logos or custom logos both available

Application: Mountain bike XC/AM,E-Bike

Standard:EN standard


Hub: Novatec /DT240S

Cassette body: XD/Shimano 11s/Microspline 12s

Disc brake with Six bolt type Novatec quick release hubs axle size is:front 108x9mm and rear 145X10mm (front

O.L.D=100mm,Rear O.L.D=135mm);

Disc brake with Six bolt type Novatec thru axle hubs axle size is:front 100x15mm and rear 142X15mm (front

O.L.D=100mm,Rear O.L.D=142mm); or
BOOST (F: 15X110mm R: 12X148mm)


Max weight limit: 120kg

Max tire pressure: 135psi


  • Clinhcer tubeless compatible designed: This function means you can install clincher or tubeless tires.

Tech improvements:

* 27.5er width 36mm depth carbon six/6 spoke mountain bike wheels has excellent performances,it for advanced aerodynamics manufacture.It is ideally suited for XC/AM racing ride.

*  Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.


*  Filled with 3D weave, that will make the rim stable, safe and durable.


*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.


*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
