|CW36-30CT| Carbon bike rims 420g flyweight 700C Wider light weight cycling wheel Tubelss tires 36mm width 30mm depth

Basic info:

• Item No.: CW3630CT
•
• Material: Toray T800+T700 Carbon Fiber
•
• Rim Type: Clincher tubeless compatible
•
• Warranty: 3 Years
•
• Standard: EN Standard

Dimension:

• Size: 700C

  BSD: 622mm (ISO Standard)


• ERD: 579mm (Not inclued nipples hed)

  External Width: 36mm


• Spoke Hole Dia.: 4.5mm / 2.5mm

  Depth:30mm

  Internal Width: 29mm

  Valve Hole Dia.: 6.5mm

  Hole count: 16,18,20,21,24, 28, 32, 36, 21 G3

  Assembly Hole Dia.: 7.5mm

  Weight:420+/- 10g pcs

• Recommendation  data:

•  Max Spoke Tension: 130kgf


•  Weight Limit: 90kg

  Max Tire Pressure: 130psi

Application:

• Road / Cyclocross / Triathlon / Time Trial (TT)

Appearance:

Weave: UD/3K/12K/3K twill/12K twill


Finish: Matte / Glossy/ 50% Matt/Paintless Matt/Paintless Glossy

Feature:

• Tubeless compatible all size tyres designed: This means can been mount clincher/tubeless tires.

Tech improvements:

This widest crbon rim with 36mm tire width, have a wider spacing between the bike rim than traditional V-shaped rims, thanks to a slight widening of the rim, they are much stiffer. With a slightly angled brake track, they have better braking. And they are lightweight, fast, when hit a few windy sections, it could not fell a thing in the cross winds.

*  Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.

*  30mm depth rim has excellent performances in climbing and acceleration with the advanced aerodynamics, it is ideally suited for racing and triathlon. Its stiff construction offer the ability to maintain higher speed and good cornering grip.

*  High TG 240 degrees and high heat-resistant basalt braking surface improve heat dissipation, effectively reduce the impact in heat caused by braking to provide you with reliability and stopping power.

*  Filled with 3D weave, that will make the rim stable, safe and durable.

*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.

*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.

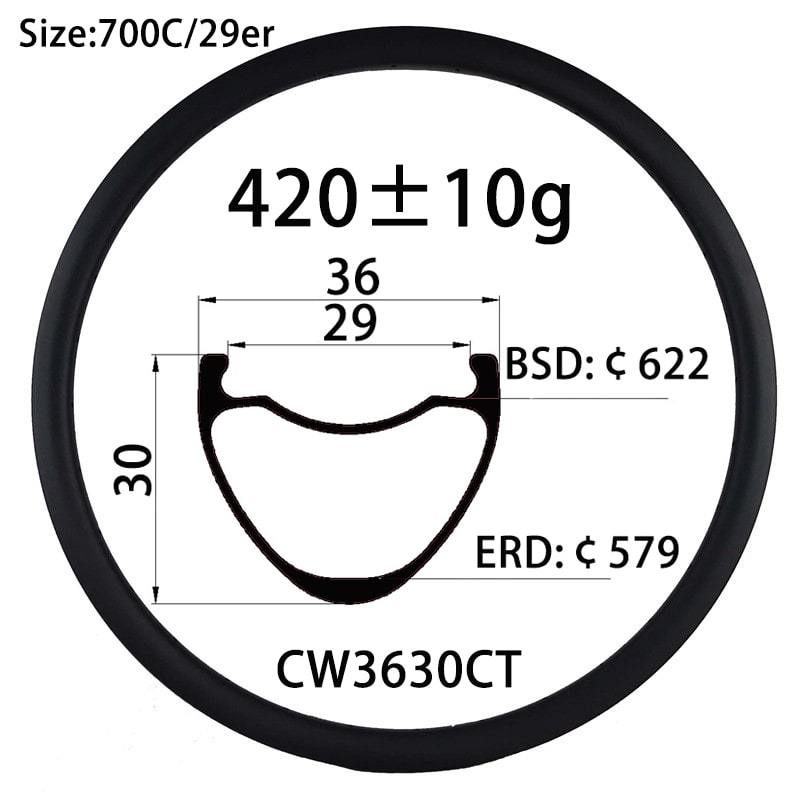

Rim section:
