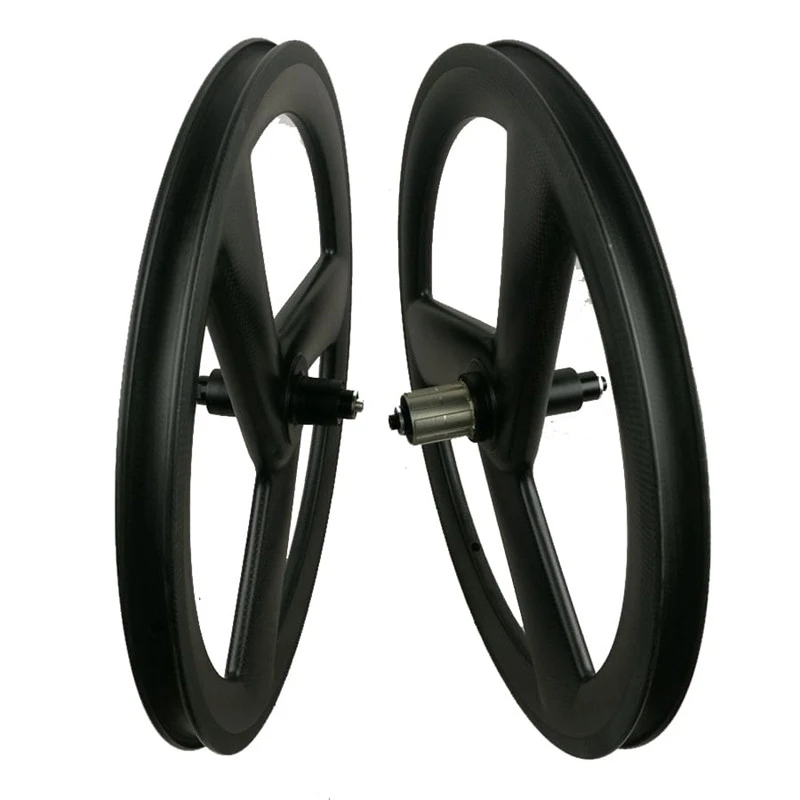

|CW406-25-40C-3S|406 carbon tri spoke bike wheel BMX 20 inch 25mm wide 40mm depth front road rear clincher wheel bicycle tri spokes three folding ride

406/20er 540g~740g external 25mm internal 18mm depth 40mm clincher road bike V brake/disc brake cyclocross/track fixed gear single speed starfish shape designed 5/five spoke bike wheels.
(14% OFF)
    Please select the information you wantX
  • Weave:
  • Finish:
  • Rim type:
  • Location:
  • Applicable Bicycle:
  • Applicable Bicycle & Location & Cassette:
  • Cassette body:
(999 available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews(1)
Basic info:

Size:406 (20'')

Rim Width:25mm

Rim Depth: 40mm

Material:Toray 100% full carbon T700

Spoke:tri/3 spoke


Tire Profile:Clincher

Carbon Weave:UD/3K/12K/3K twill/12K twill


Warranty:2 years



540±35g( road front) 640±35g(Road Rear);

Front:640g±30g(fixed gear),Rear:740g±30g (Fixed gear).

Application: road bike(V brake/DISC brake)/fixed gear bike are available

Standard:EN standard


Road bike V brake with Powerway quick release hubs axle size is:front 108x9mm and rear 140X10mm (front

O.L.D=100mm,Rear O.L.D=130mm);

 Fixed gear with Novatec hub= Front O.L.D=100mm,Rear O.L.D=120mm.


Max weight limit: 120kg

Max tire pressure: 135psi


  • Clinhcer designed: This function means you can install clincher tires.

Tech improvements:

* 406(20er) 25mm width 40mm depth carbon Tri spoke road bike/fixed gear wheels has excellent performances,it for advanced aerodynamics manufacture.It is ideally suited for racing ride.

*  Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.


*  Filled with 3D weave, that will make the rim stable, safe and durable.


*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.


*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
