|CW406-45CT| Carbon fiber 20"/406 23mm width 45mm depth BMX cincher tubeless compatible rim V brake/Disc brake both acception

406/20er 310g external 23mm internal 16mm depth 45mm clincher tubeless compatible tires road bike V brake/disc brake cyclocross BMX carbon rims.
Price:
USD
$145.00
$159.00
    Please select the information you wantX
  • Weave:
    UD
    3K
    12K
    3K twill
    12K twill
    3K twill
  • Finish:
    matt
    glossy
    50% matt
    Paintless Matt
    Paintless Glossy
  • Holes:
    16
    18
    21
    24
    28
    32
    36
    21(G3)
  • Brake system:
    V brake(high TG brake suface)
    Disc brake (no brake line)
  • Spokes holes type&Diameter:
    Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)
    Without outer holes(No need rim tapes Inner holes 4.5mm)
    Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
Quantity:
-
+
(1000 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews

Basic info:

  • Item No.: CW406-45CT
  •
  • Material: Toray T800+T700 Carbon Fiber
  •
  • Rim Type: Clincher tubeless compatible
  •
  • Warranty: 3 Years
  •
  • Standard: EN Standard
  •
  • Brake system:Disc brake/V brake

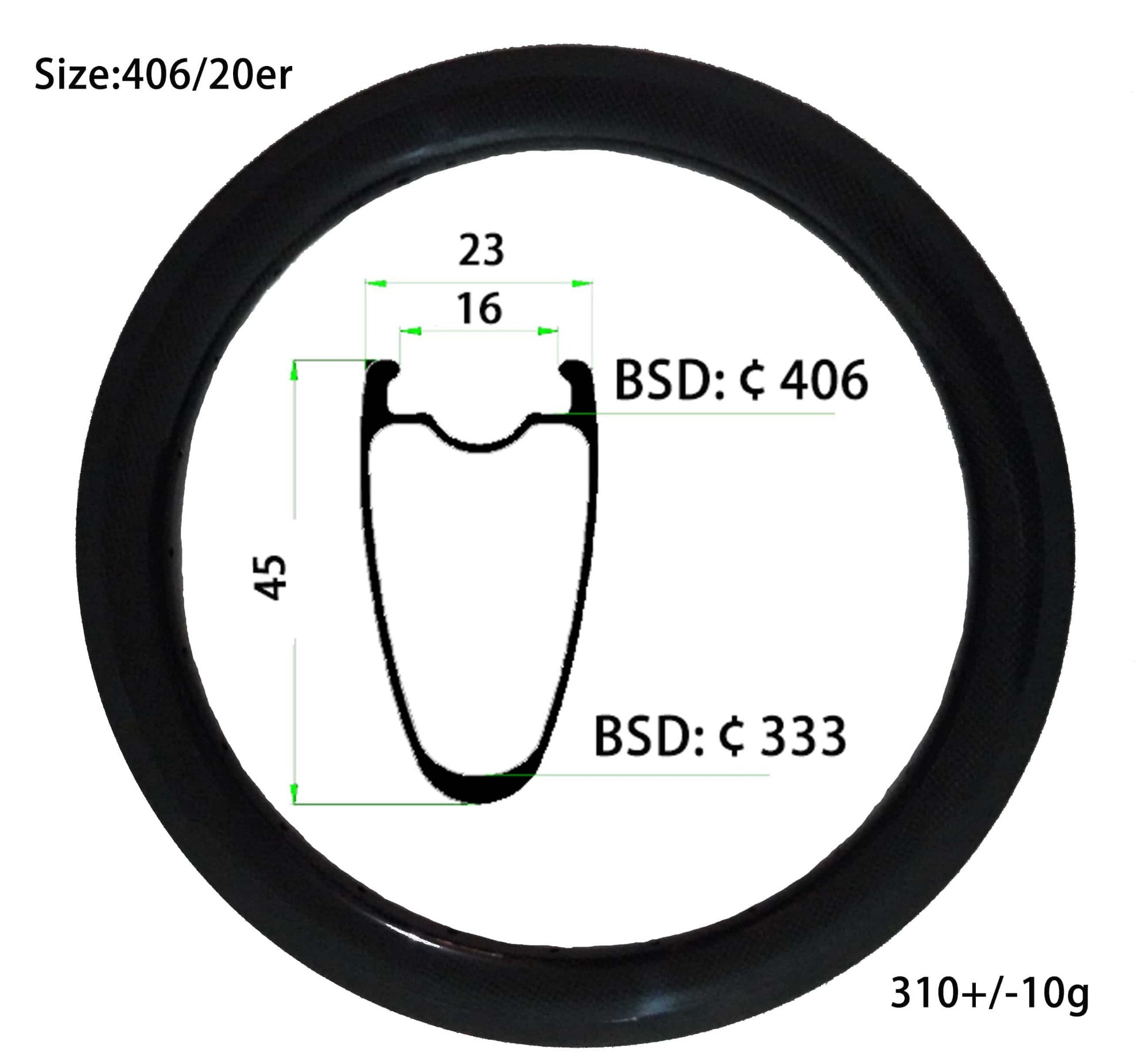

Dimension:

  • Size: 406/20er

    BSD:406mm (ISO Standard)



  • ERD:333mm (don't inclued nipples hed)

    External Width: 23mm



  • Spoke Hole Dia.: 4.5mm / 2.3mm

    Depth:45mm


    Internal Width: 16mm(clincher)

    Valve Hole Dia.: 6.5mm

    Hole count: 16,18,20,21,24, 28, 32, 36 ,21 G3 lacing

    Assembly Hole Dia.: 7.5mm


    Weight:310+/- 15g pcs

  • Recommendation  data:

  •  Max Spoke Tension: 110kgf


  •  Weight Limit: 100kg

    Max Tire Pressure: 60psi

Application:

  • Road / Track (fixed gear) / Cyclocross / Triathlon / Time Trial (TT)

Appearance:

Weave: UD/3K/12K/3K twill/12K twill

Finish: Matte / Glossy /50% Matt / Paintless Matt / Paintless Glossy



Tech improvements:

406/20er 23mm width U shape 45mm depth carbon rims are our new design thanks to a slight widening of the rim, they are much stiffer. With a slightly angled brake track, they have better braking. And they are lightweight, fast, when hit a few windy sections, it could not fell a thing in the cross winds.



*  High TG 240 degrees and high heat-resistant basalt braking surface improve heat dissipation, effectively reduce the impact in heat caused by braking to provide you with reliability and stopping power.

*  Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.



*  Filled with 3D weave, that will make the rim stable, safe and durable.



*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.



*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.

*
Can be offered V brake/Disc brake system.
