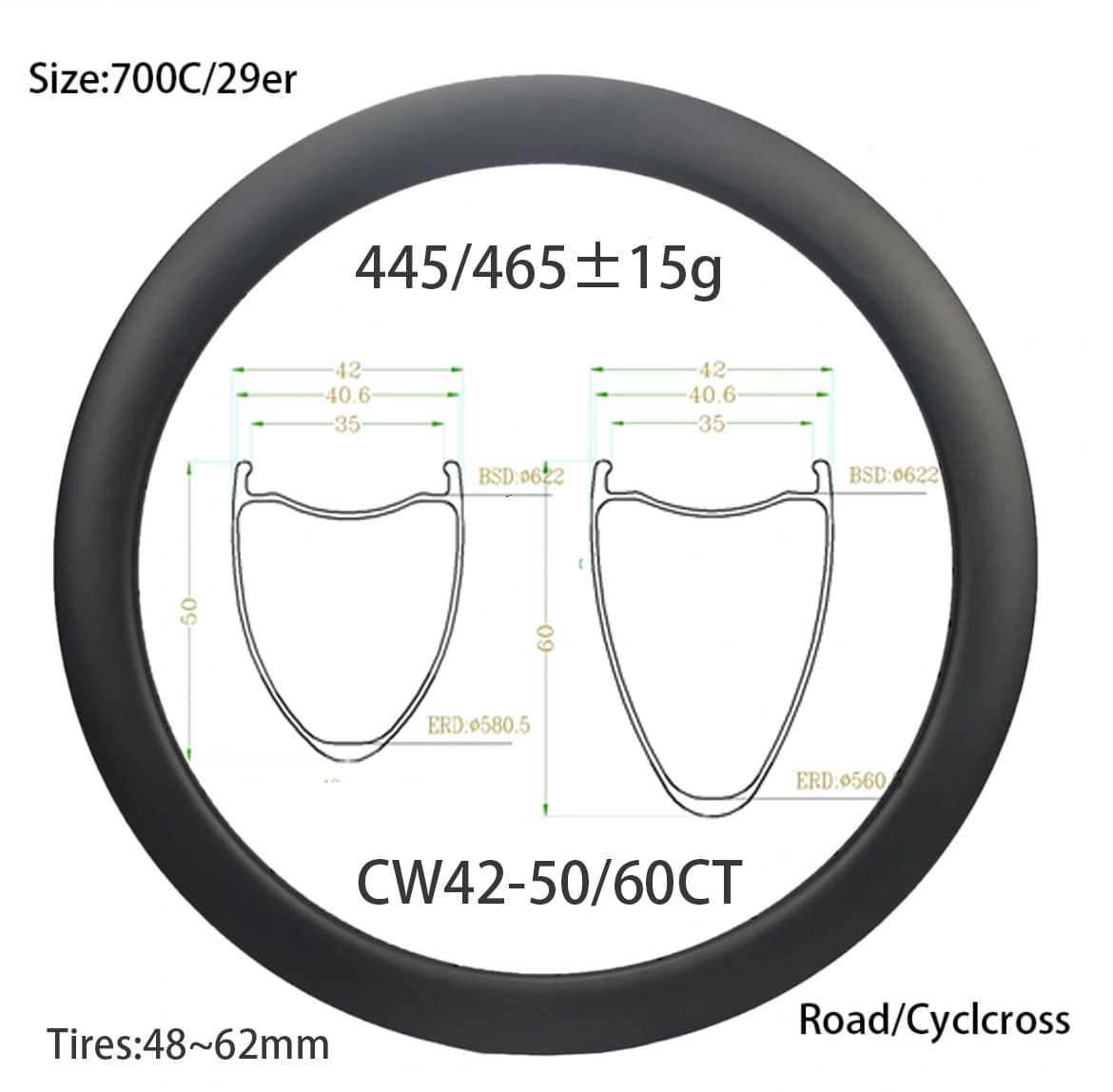

Size: 700C / 29er
BSD: 622mm (ISO Standard)
ERD: 539/519mm (don't inclued nipples hed) (50/ 60mm)
External Width: 35mm
Spoke Hole Dia.: 4.5mm / 2.5mm
Depth:50/ 60mm depth
Internal Width: 35mm(clincher tubeless compatible)
Valve Hole Dia.: 6.5mm
Hole count: 20/24/28/32H
Assembly Hole Dia.: 7.5mm
Clincher tubeless:445~465g ±15g (Ultralight)
Max Spoke Tension: 130kgf
Weight Limit: 110kg
Max Tire Pressure: 130psi
Tires width: 48~62mm
Weave: UD/3K/12K/3K twill/12K twill
Finish: Matte / Glossy /50%Matt / Paintless Matt / Paintless Glossy
Clinhcer tubeless Compatible designed: This function means you can install clincher or tubeless two kinds of tyres are all perfectly.
* The ultralight version is new tech designed,(50% T800 and fixed T700 another) With Toray T800 carbon fiber it has more strongth and smaller density,but still keep T700 carbon weave with good tenacity characters.So the rims with more stronger,lighter,and durable.And strand version,just normal T700 carbon fiber,so it can do any carbon weave.
Ps: But ultralight version just can be do UD carbon weave,so if you need to ultralight/super light vesion,plz just choose UD carbon weave.
* Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.
* The U shape rims are our new design, they are with 38mm tire width, have a wider spacing between the bike rim than traditional V-shaped rims, thanks to a slight widening of the rim, they are much stiffer. With a slightly angled brake track, they have better braking. And they are lightweight, fast, when hit a few windy sections, it could not fell a thing in the cross winds.
* 42mm width with depth 50/60mm rims has excellent performances in climbing and acceleration with the advanced aerodynamics, it is ideally suited for racing and triathlon. Its stiff construction offer the ability to maintain higher speed and good cornering grip.
* High TG 240 degrees and high heat-resistant basalt braking surface improve heat dissipation, effectively reduce the impact in heat caused by braking to provide you with reliability and stopping power.
* Filled with 3D weave, that will make the rim stable, safe and durable.
* Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.
* 250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
