Name: |CW451-50C| 451 carbon bicycle rims 50mm depth 23mm U shape profile deep clincher tires 20er assymble folding bike 100% high quality made in China
Brand: Cyclingwheel
SKU: CW451-50C
Price: 130.50 USD
Availability: InStock
Rating: 0 (0 reviews)

Your position: Home / BMX / BMX rims

facebook
twitter
pinterest
vk
linkedin google digg reddit stumbleupon delicious

PDF Format

Price:

$130.50

~~$145.00~~

(10% OFF)

Please select the information you wantX

Weave:

UD

3K

12K

3K twill

12K twill

3K twill
Finish:

matt

glossy

50% matt

Paintless Matt

Paintless Glossy
Holes:

16

18

21(2:1)

24

28

32

36

21(G3)
Brake system:

V brake(high TG brake suface)

Disc brake (no brake line)
Spokes holes type&Diameter:

Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)

Without outer holes(No need rim tapes Inner holes 4.5mm)

Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
Ships From:

China

Quantity:

Shipping Cost:

Description
Reviews

Basic info:

Item No.: CW451-50C
Material: Toray T800+T700 Carbon Fiber
Rim Type: Clincher
Warranty: 3 Years
Standard: EN Standard
Brake system:Disc brake/V brake

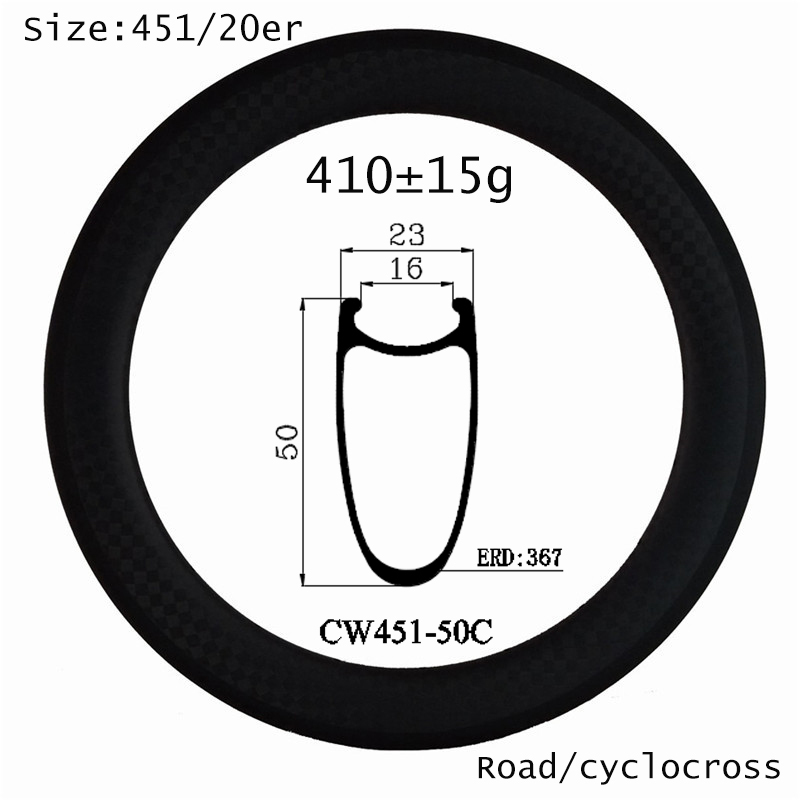

Dimension:

Size: 451/20er

BSD:451mm (ISO Standard)
ERD:367mm (don't inclued nipples hed)

External Width: 23mm
Spoke Hole Dia.: 4.5mm / 2.5mm

Depth:50mm

Internal Width: 16mm(clincher tubeless compatible)

Valve Hole Dia.: 6.5mm

Hole count: 16,18,20,21,24, 28, 32, 36 ,21 G3 lacing

Assembly Hole Dia.: 8.5mm

Weight:410+/- 15g pcs
Recommendation data:
Max Spoke Tension: 110kgf
Weight Limit: 100kg

Max Tire Pressure: 60psi

Application:

Road / Track (fixed gear) / Cyclocross / Triathlon / Time Trial (TT)

Appearance:

Weave: UD/3K/12K/3K twill/12K twill

Finish: Matte / Glossy

Tech improvements:

451/20er 23mm width U shape 50mm depth carbon rims are our new design thanks to a slight widening of the rim, they are much stiffer. With a slightly angled brake track, they have better braking. And they are lightweight, fast, when hit a few windy sections, it could not fell a thing in the cross winds.

* Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.

* High TG 240 degrees and high heat-resistant basalt braking surface improve heat dissipation, effectively reduce the impact in heat caused by braking to provide you with reliability and stopping power.

* Filled with 3D weave, that will make the rim stable, safe and durable.

* Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.

* 250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.

* Can be offered V brake/Disc brake system.
