Name: |CW650B30-45CT| carbon cycling wheels 27.5er 45mm depth 30mm width clincher tubeless carbon rims Gravel/sandy/muddy bike
Brand: Cyclingwheel
SKU: CW650B30-45CT
Price: 159.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Your position: Home / Gravel / 650B 45mm width

facebook
twitter
pinterest
vk
linkedin google digg reddit stumbleupon delicious

PDF Format

Price:

$159.00

~~$176.00~~

Please select the information you wantX

Weave:

UD

3K

12K
Finish:

matt

glossy

50% matt

Paintless Matt

Paintless Glossy
Version:

Standard 430g

Superlight 390g
Holes:

20

24

28

32

36
Brake system:

Disc brake (none brake suface)

V brake
Spokes holes type&Diameter:

Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)

Without outer holes(No need rim tapes Inner holes 4.5mm)

Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
Ships From:

China

Quantity:

Shipping Cost:

Description
Reviews(1)

Basic info:

Item No.: CW650B30-45CT
Material: Toray T700/T800+T700 Carbon Fiber
Rim Type:clincher tubeless compatible
Warranty: 3 Years
Brake system: disc brake
Standard: EN Standard

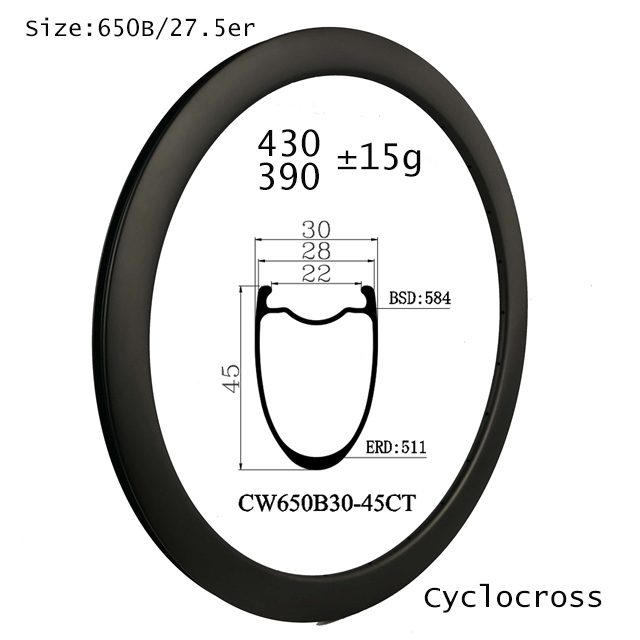

Dimension:

Size: 650B/27.5er

BSD: 584mm (ISO Standard)
ERD: 511mm (don't inclued nipples hed)

External Width: 27.6mm
Spoke Hole Dia.: 4.5mm / 2.3mm

Depth:45mm

Internal Width: 22mm(clincher tubeless compatible)

Valve Hole Dia.: 6.5mm

Hole count: 16,18,20,21,24, 28, 32, 36 21(G3)

Assembly Hole Dia.: 7.5mm

Weight:430+/- 15g (Standard), 390+/- 15g (Ultralight)
Recommendation data:
Max Spoke Tension: 130kgf
Weight Limit: 90kg

Max Tire Pressure: 130psi

Application:
Gravel / Cyclocross / Triathlon / Time Trial (TT)Appearance:
Weave: UD / 3K / 12K / 12K twill

Finish: Matt / Glossy / 50%Matt / Painting Matt / Paintless Glossy

Feature:

Hookless clincher tubeless compatible designed: This function means that the rims is easy to install the tyres and remove the tyres.

Tech improvements:

* The ultralight version is new tech designed,(50% T800 and fixed T700 another) With Toray T800 carbon fiber it has more strongth and smaller density,but still keep T700 carbon weave with good tenacity characters.So the rims with more stronger,lighter,and durable.And strand version,just normal T700 carbon fiber,so it can do any carbon weave.

Ps: But ultralight version just can be do UD carbon weave,so if you need to ultralight/super light vesion,plz just choose UD carbon weave.

* Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.

* The U shape rims are our new design, they are with 30mm width, have a wider spacing between the bike rim than traditional V-shaped rims, thanks to a slight widening of the rim, they are much stiffer. With a slightly angled brake track, they have better braking. And they are lightweight, fast, when hit a few windy sections, it could not fell a thing in the cross winds.

* 27.5er/650B 45mm depth 30 mm width rim with dimpled original appearance has excellent performances in climbing and acceleration with the advanced aerodynamics, it is ideally suited for racing and triathlon. Its stiff construction offer the ability to maintain higher speed and good cornering grip.

* Filled with 3D weave, that will make the rim stable, safe and durable.

* Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.

* 250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
