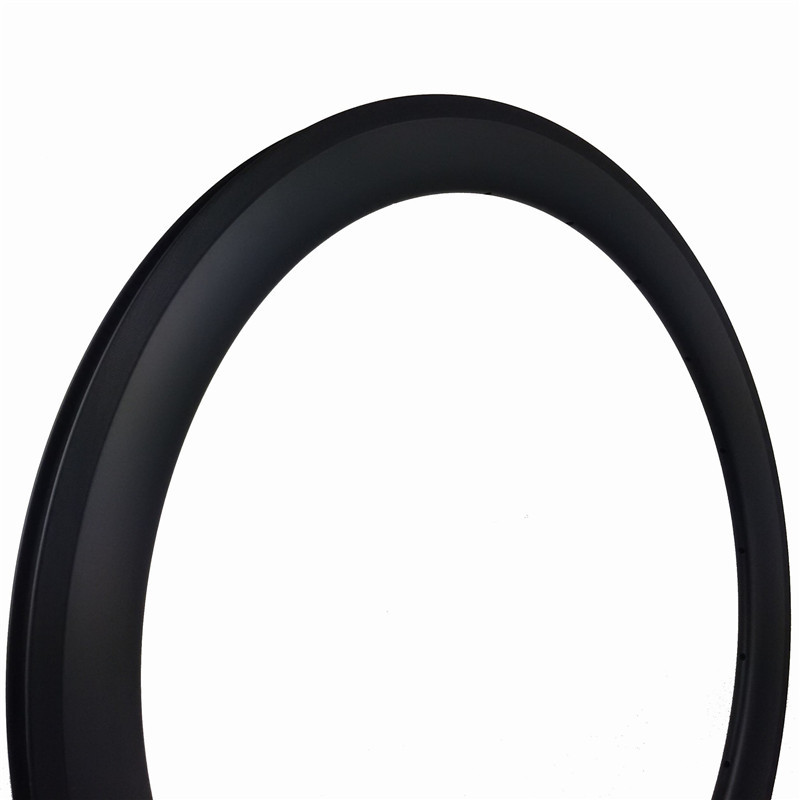

Name: |CW650C-50C/T| 650C carbon bike wheels clincher/tubular tires for road bike V brake high TG suface/cyclocrossy disc brake XC racing bike
Brand: Cyclingwheel
SKU: CW650C-50C/T
Price: 131.58 USD
Availability: InStock
Rating: 5 (2 reviews)

Your position: Home / Road / 650C

facebook
twitter
pinterest
vk
linkedin google digg reddit stumbleupon delicious

PDF Format

Price:

$131.58

~~$153.00~~

(14% OFF)

Please select the information you wantX

Weave:

UD

3K

12K

3K twill

12K twill

3K twill
Holes:

16

18

20

21(2:1)

24

28

32

21(G3)
Finish:

Matt

Glossy

50% matt

Paintless Matt

Paintless Glossy
Brake system:

V brake(high TG brake suface)

Disc brake (no brake line)
Spokes holes type&Diameter:

Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)

Without outer holes(No need rim tapes Inner holes 4.5mm)

Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
Rim type:

Clinhcer

Tubular
Ships From:

China

Quantity:

Shipping Cost:

Description
Reviews(2)

Basic info:

Item No.: CW650C-50C/T
Material: Toray T800+T700 Carbon Fiber
Rim Type: Tubular/Clincher
Warranty: 3 Years
Standard: EN Standard

Dimension:

Size: 650C
ERD: 487mm (Not inclued nipples hed)

External Width: 23mm
Spoke Hole Dia.: 4.5mm / 2.3mm

Depth:50mm

Internal Width: 16mm(clincher)

Valve Hole Dia.: 6.5mm

Hole count: 16,18,20,21,24, 28, 32, 36, 21 G3

Assembly Hole Dia.: 7.5mm

Weight:360/440±20g pcs (tubular/clincher)
Recommendation data:
Max Spoke Tension: 130kgf
Weight Limit: 90kg

Max Tire Pressure: 130psi

Application:

Road / Cyclocross / Triathlon / Time Trial (TT)

Appearance:

Weave: UD/3K/12K/3K twill/12K twill

Finish: Matte / Glossy / Paintless Matt / Paintless Glossy

Feature:

Tubular/clincher tyres designed: You can choose tubular or clincher tire to fit for your bike.

Tech improvements:

The U shape rims are our new design, 650C carbon bike rim with 23mm tire width 50mm depth, have a wider spacing between the bike rim than traditional V-shaped rims, thanks to a slight widening of the rim, they are much stiffer. With a slightly angled brake track, they have better braking. And they are lightweight, fast, when hit a few windy sections, it could not fell a thing in the cross winds.

* Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.

* 50mm depth rim has excellent performances in climbing and acceleration with the advanced aerodynamics, it is ideally suited for racing and triathlon. Its stiff construction offer the ability to maintain higher speed and good cornering grip.

* High TG 240 degrees and high heat-resistant basalt braking surface improve heat dissipation, effectively reduce the impact in heat caused by braking to provide you with reliability and stopping power.

* Filled with 3D weave, that will make the rim stable, safe and durable.

* Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.

* 250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.

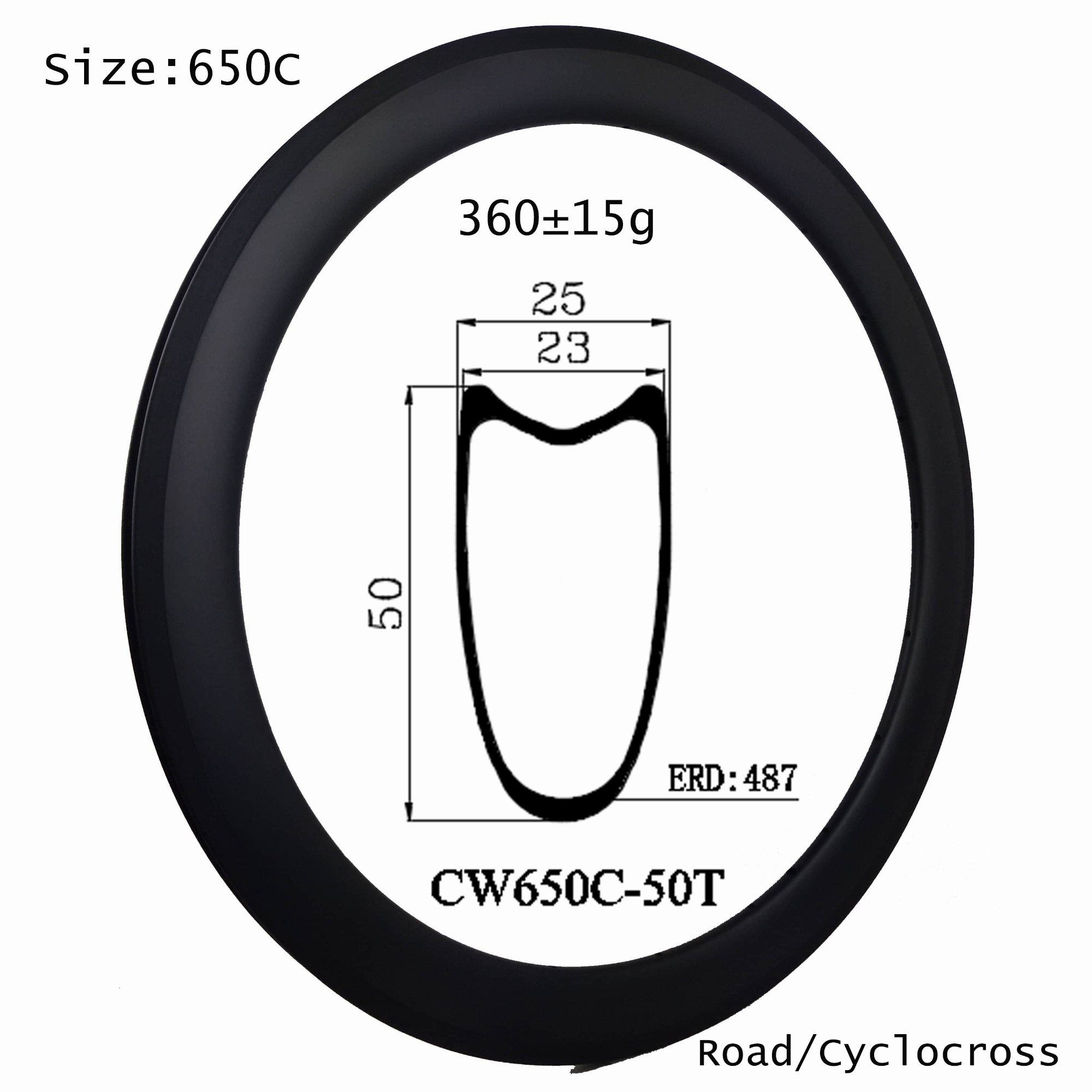

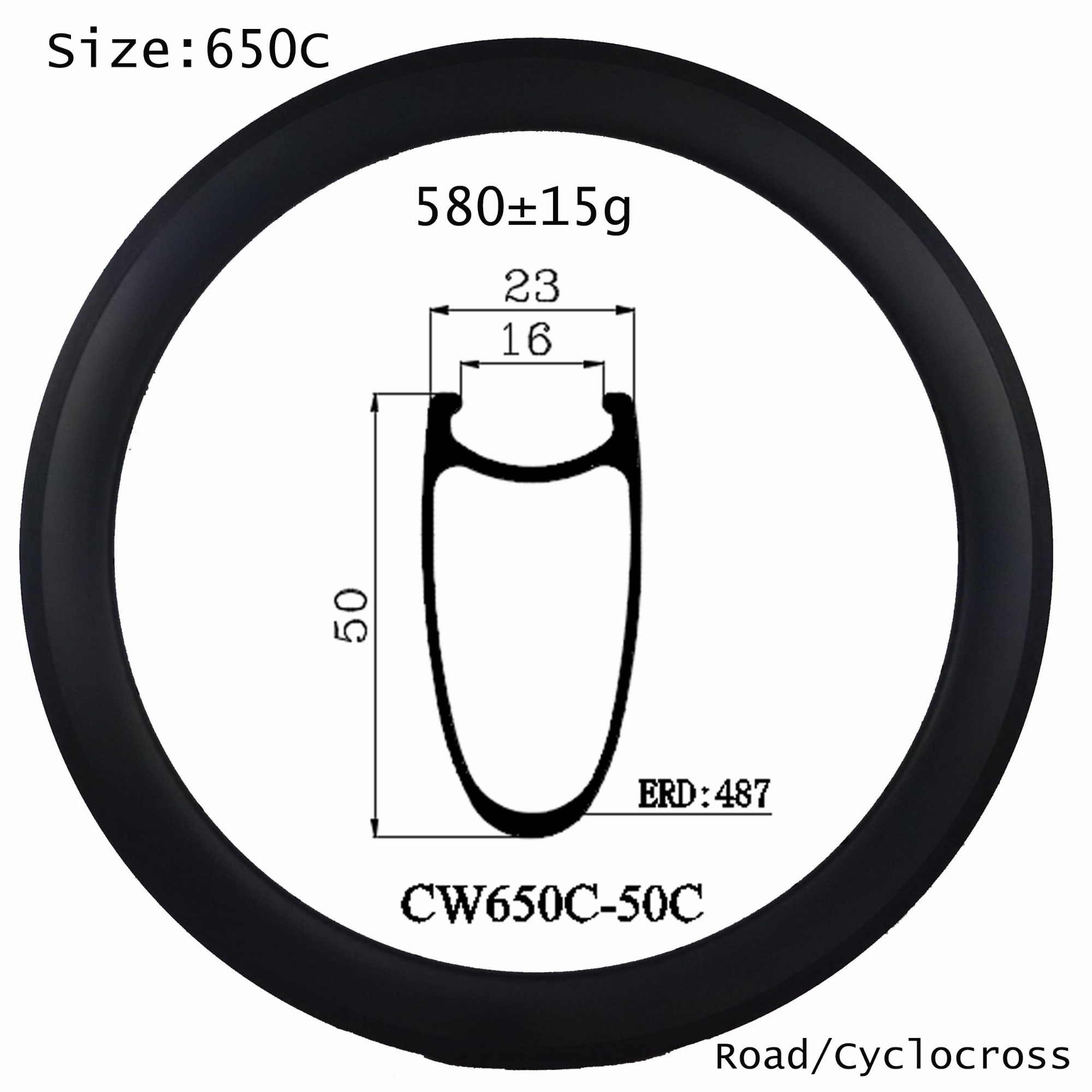

Rim section:
