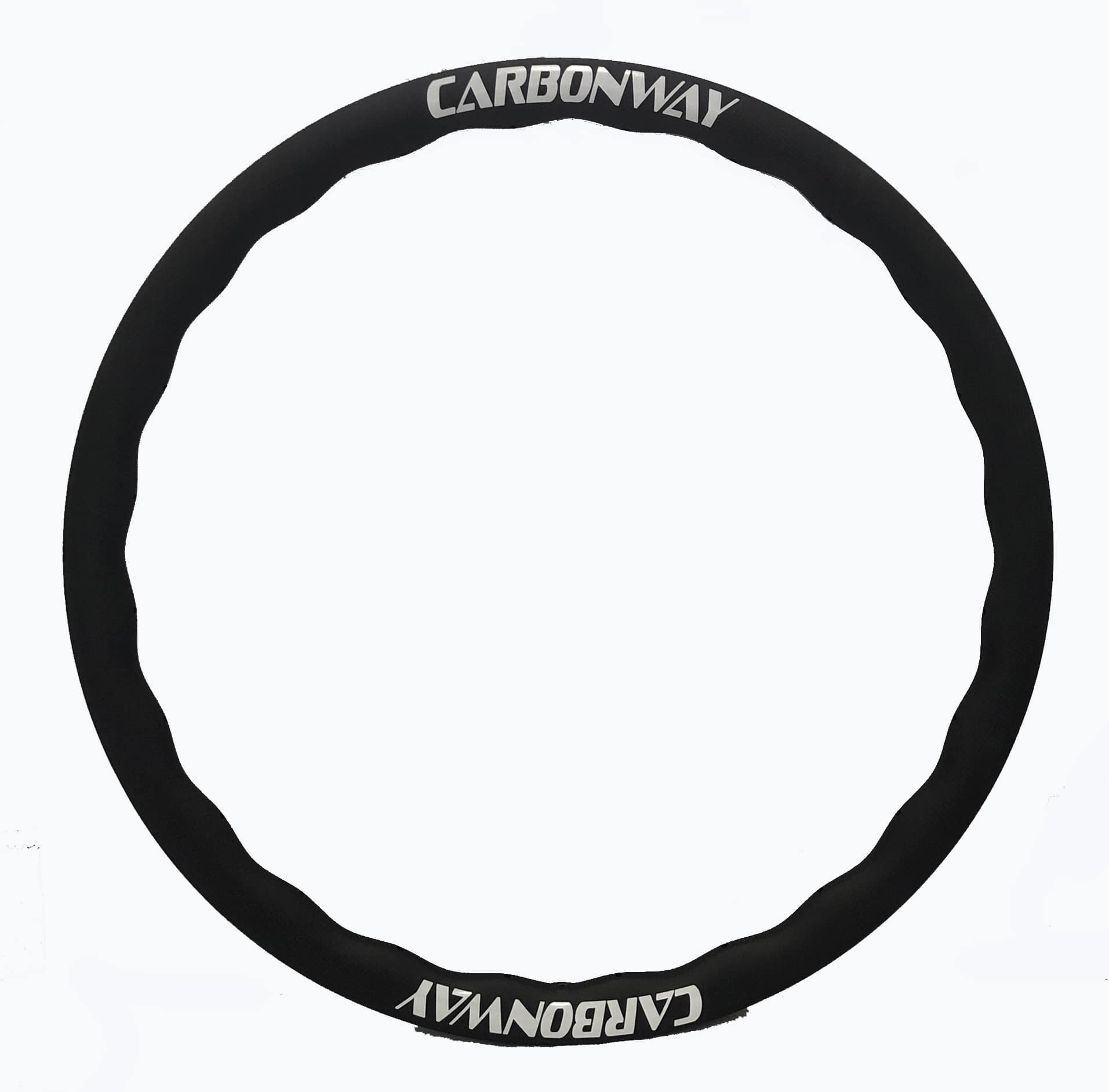

Name: |CWA2840CT| Carbon bike rim 24 holes wave shape disc brake bike cycle rim light weight standard version 375g 28mm width 40mm depth
Brand: Cyclingwheel
SKU: CWA2840CT
Price: 152.22 USD
Availability: InStock

Your position: Home / Gravel / 28mm wave rim

facebook
twitter
pinterest
vk
linkedin google digg reddit stumbleupon delicious

PDF Format

Price:

$152.22

~~$177.00~~

(14% OFF)

Please select the information you wantX

Holes:

24
Finish:

Matt

Original

50% matt

Paintless Matt

Paintless Glossy
Version:

Ultralight 375g

Standard 420g
Brake system:

Disc Brake
Spokes holes type&Diameter:

Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)

Without outer holes(No need rim tapes Inner holes 4.5mm)

Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
weave:

UD

3K

12K

3K twill

12K twill

Marble
Ships From:

China

Quantity:

Shipping Cost:

Description
Reviews

Basic info:

Item No.: CWA2840CT
Material: Toray T800+T700 Carbon Fiber
Rim Type: Clincher tubeless compatible
Warranty: 3 Years
Standard: EN Standard

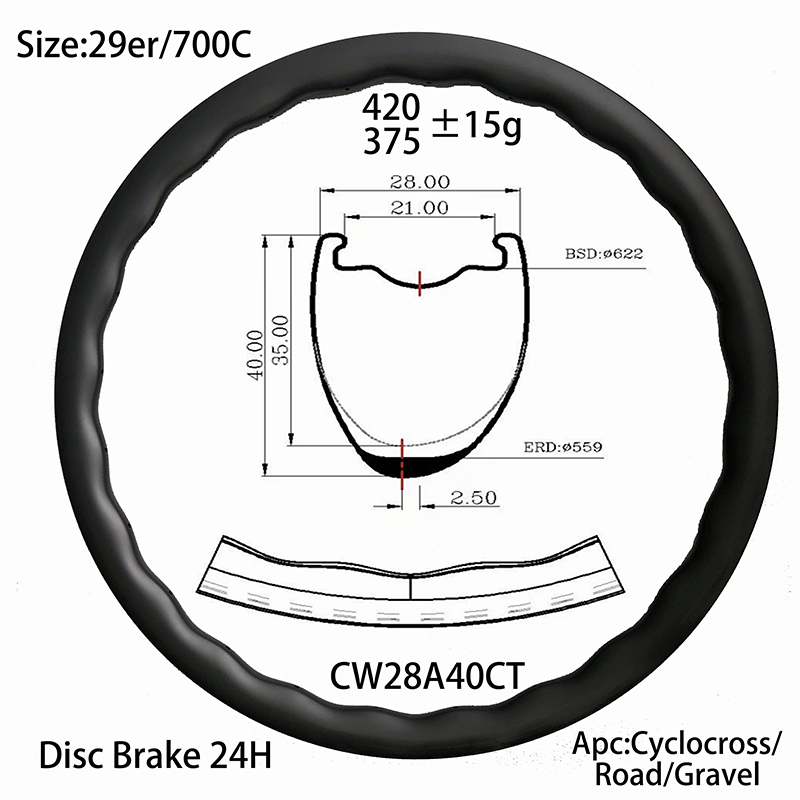

Dimension:

Size: 700C

BSD: 622mm (ISO Standard)
ERD: 559mm (Not inclued nipples hed)

External Width: 28mm
Spoke Hole Dia.: 4.5mm / 2.5mm

Depth:40mm

Internal Width: 21mm(clincher/tubeless)

Valve Hole Dia.: 6.5mm

Hole count: 24

Assembly Hole Dia.: 7.5mm

Weight:375/420/- 15g pcs (tubeless)
Recommendation data:
Max Spoke Tension: 130kgf
Weight Limit: 90kg

Max Tire Pressure: 130psi

Appearance:

Weave: UD/3K/12K/3K twill/12K twill

Finish: Matte / Glossy

Application:

Road / Cyclocross / Triathlon / Time Trial (TT)

Feature:

clincher tubeless compatible all size tyres designed: Those three kinds of tyres included fit for any tyres.

Tech improvements:

The U shape rims are our new design, they are with 28mm tire width, have a wider spacing between the bike rim than traditional V-shaped rims, thanks to a slight widening of the rim, they are much stiffer. With a slightly angled brake track, they have better braking. And they are lightweight, fast, when hit a few windy sections, it could not fell a thing in the cross winds.

* Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.

* 35mm depth rim has excellent performances in climbing and acceleration with the advanced aerodynamics, it is ideally suited for racing and triathlon. Its stiff construction offer the ability to maintain higher speed and good cornering grip.

* Filled with 3D weave, that will make the rim stable, safe and durable.

* Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.

* 250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
