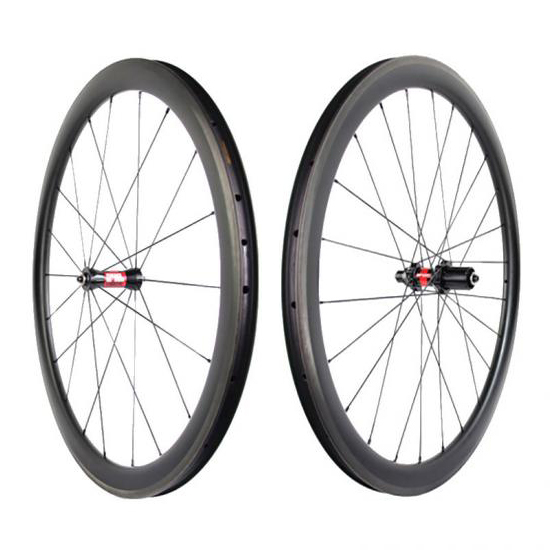

29.5-40-45CT-carbon-wave customized Novatec D411 or XR240 HUB 1420 SPOKES CUSTOMIZED LOGO

Ps:Please let us to know which carbon weave (UD/3K/12K/3K twill/12K

twill),finish(matt/glossy) you'd like when place your order.If haven't

message we'll just arrange UD/matt of the wheelset for you!

Basic info:

Hub&Axle:

V brake(rim brake) with quick release/Skewers (QR)

DT 350s/DT240S hub,hubs axle size is:front 108x9mm and rear 145X10mm

(Front O.L.D=100mm,Rear O.L.D=130mm);

Disc brake with Six bolt/Center lock type quick release (QR)

front 108x9mm and rear 145X10mm

(Front O.L.D=100mm,Rear O.L.D=135mm);

Or thru axle hubs size is:front 100x15mm and rear 142X12mm (front

O.L.D=100mm,Rear O.L.D=142mm),

Hub Weight:

DT Swiss 350s (Front:108g,Rear:214g)

DT Swiss 240S hub (Front:108g,Rear:265g)

DT Swill 350s:











Carbon Weave:UD/3K/12K/3K twill/12K twill

Finish:Matt/Glossy

Warranty:2 years

Cassette body:

Shimano 10~11 speed,

Campagnolo 10~11 speed,

Sram 10~11 XD body.

Spokes:

Pillar PSR 1432 6.5g/piece,

Pillar PSR 1420 4.3g/piece,

Sapim CX-Ray 4.3g/piece,

Nipples:

Pillar Aluminum 0.3g/piece,

CN Aluminum 0.3g/piece.

Recommendation:

 Max weight limit: 100~120kg


 Max spoke tension: front: 110kgf   rear:130kgf


 Max tire pressure: 125psi.

*  Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.
