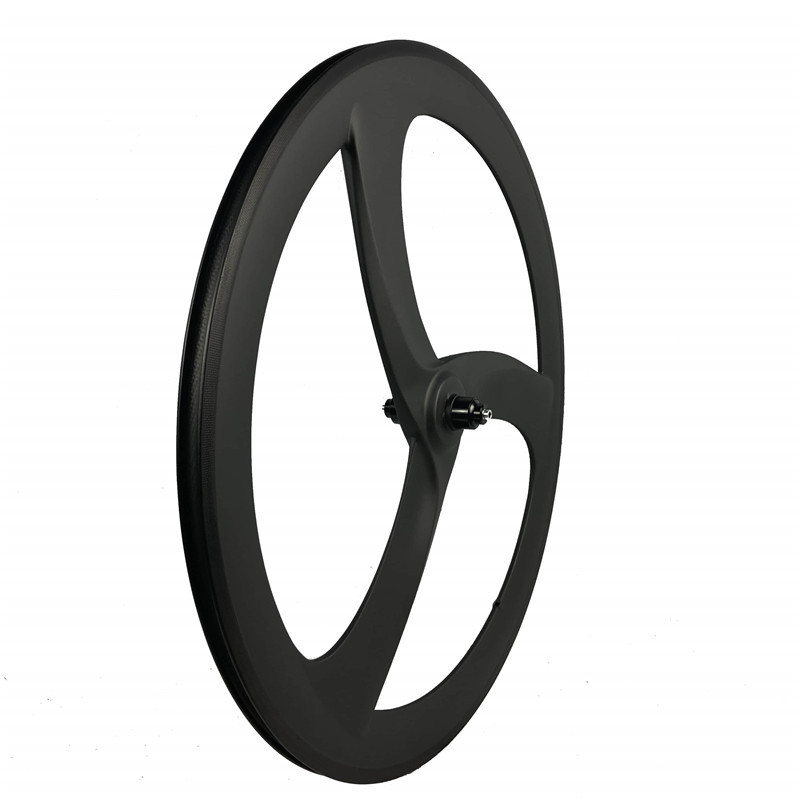

|CW20-56C/T-3S|carbon tri spoke bike wheel 20.4mm wide 56mm depth front 700C road rear tubular wheel bicycle bending 3 spokes fixed gear track bike

700C/29er 810g~1010g external 20mm Clincher/Tubular tire road bike V brake/Disc brake/fixed gear tri spoke carbon cycling wheels.
(14% OFF)
    Please select the information you wantX
  • Weave:
  • Finish:
  • Rim type:
  • Applicable Bicycle & Location & Cassette:
(1000 available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews

Basic info:


Rim Width:20.4mm

Rim Depth: 56mm

Material:Toray 100% full carbon T700

Spoke:tri/3 spoke


Tire Profile:Tubular/Clincher

Carbon Weave:UD/3K/12K/3K twill/12K twill


Warranty:2 years




810±25g(front-road) 940±25g(Rear-road)

870±25g(front-fixed gear) 970±25g(Rear-fixed gear);


840g±30(Front road),1000g±30g(rear road)

930g±30g(Front fixed gear),1010g±30g (Rear Fixed gear)


Logo painting:None,OEM logos or custom logos both available

Application: road bike/fixed gear bike are available

Standard:EN standard


Road bike V brake with Powerway quick release hubs axle size is:front 108x9mm and rear 140X10mm (front

O.L.D=100mm,Rear O.L.D=130mm);

Disc brake with Six bolt type Novatec quick release hubs axle size is:front 108x9mm and rear 145X10mm (front

O.L.D=100mm,Rear O.L.D=135mm);

 Fixed gear with Novatec hub= Front O.L.D=100mm,Rear O.L.D=120mm.

PS:QR= quick release Powerway hubs size:front 108x9mm and rear 145X10mm (front O.L.D=100mm,Rear O.L.D=135mm)
 Fixed gear hub= Front O.L.D=100mm,Rear O.L.D=120mm.


Max weight limit: 120kg

Max tire pressure: 135psi


  • Clinhcer/Tubular designed: This function means you can install clincher/Tubular tires.

Tech improvements:

* 700C 20.4mm width 56mm depth carbon Tri spoke road bike/fixed gear wheels has excellent performances,it for advanced aerodynamics manufacture.It is ideally suited for racing ride.

*  Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.


*  Filled with 3D weave, that will make the rim stable, safe and durable.


*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.


*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
