|CW25-38/50/60/80C| Special offer dimple brake suface for road V brake carbon fiber clincher rims bicycle wheel online cheap sale 38/50/60/80mm

700C 25mm U shape width 38/50/60/80mm depth clincher tire dimple brake suface toray T700+T800 carbon bike rims with dimple brake suface special offer V brake carbon bike rims.
Price:
USD
$127.28
$148.00
(14% OFF)
    Please select the information you wantX
  • Weave:
    UD
  • Rim Depth:
    38mm
    50mm
    60mm
    80mm
  • Finish:
    Matt
    Glossy
    50% matt
    Paintless Matt
    Paintless Glossy
  • Holes:
    16
    18
    21
    24
    28
    32
    36
    21(G3)
  • Spokes holes type&Diameter:
    Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)
    Without outer holes(No need rim tapes Inner holes 4.5mm)
    Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
  • Rim type:
    Clinhcer
    Tubular
    Clincher tubeless compatible
  • Brake line:

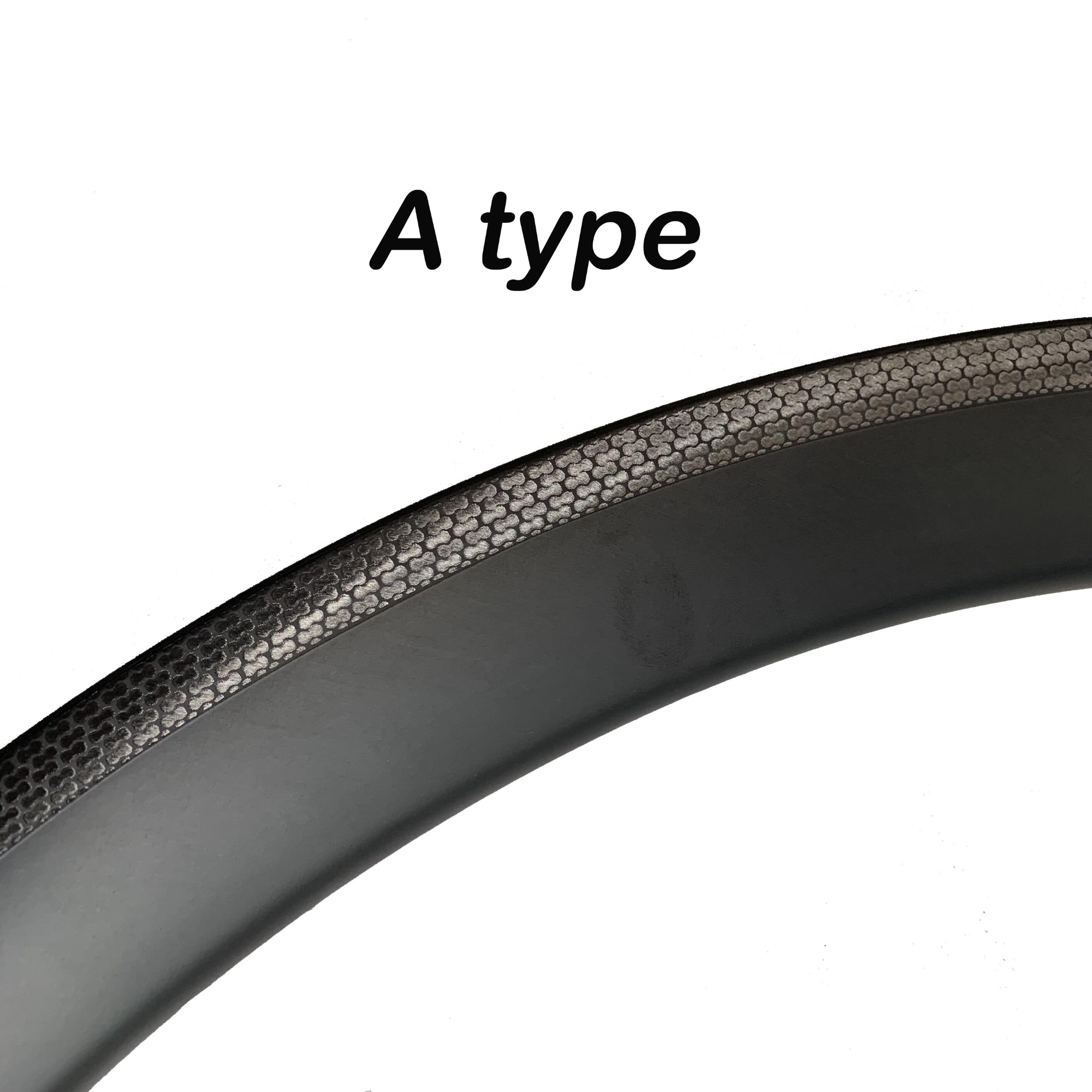

    A type

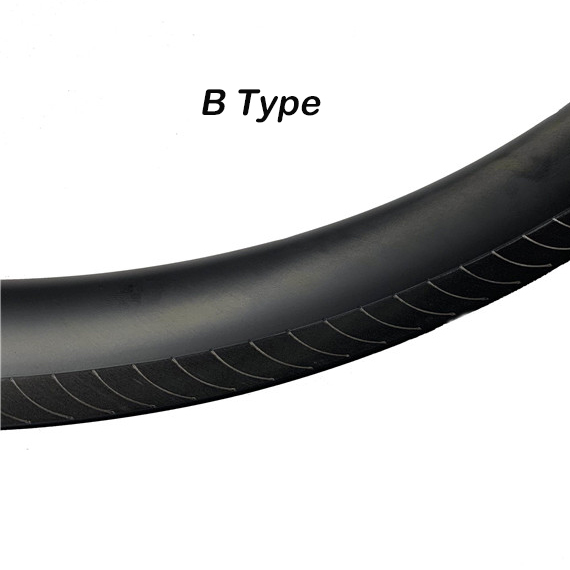

    B type

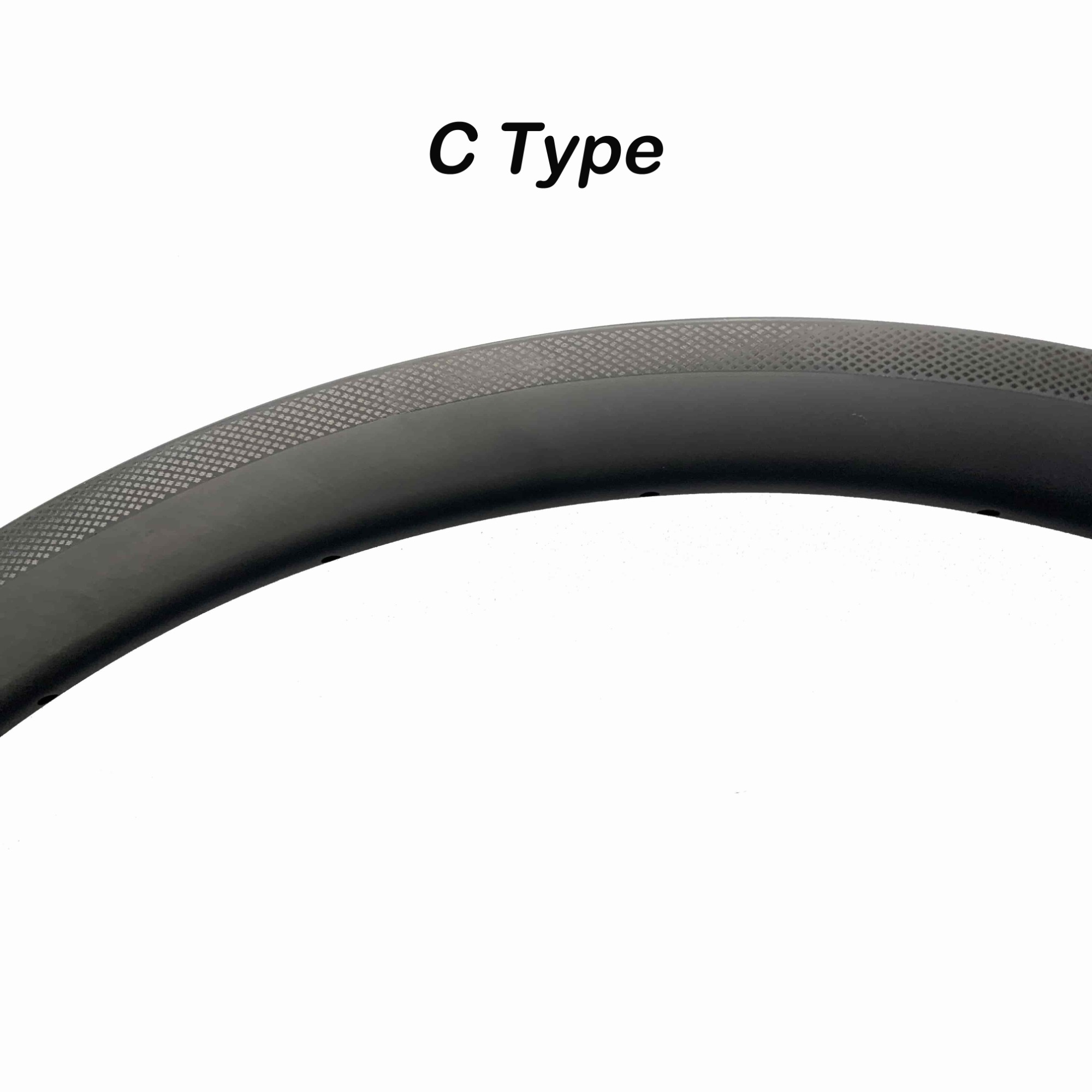

    C type
Quantity:
-
+
(992 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews(2)

Basic info:

  • Item No.: CW25-38/50/60/80C
  •
  • Material: Toray T800+T700 Carbon Fiber
  •
  • Rim Type:Clincher
  •
  • Warranty: 3 Years
  •
  • Standard: EN Standard

Dimension:

  • Size: 700C

    BSD: 622mm (ISO Standard)



  • ERD: 562/538/518/480mm (don't inclued nipples hed)

    External Width: 25mm



  • Spoke Hole Dia.: 4.5mm / 2.3mm

    Depth:38/50/60/80mm


    Internal Width: 18mm(clincher)

    Valve Hole Dia.: 6.5mm

    Hole count: 16,18,20,21,24, 28, 32, 36 21(G3)

    Assembly Hole Dia.: 7.5mm


    Weight:480/500/550/640+/- 15g pcs (clincher)

  • Recommendation  data:

  •  Max Spoke Tension: 130kgf


  •  Weight Limit: 90kg

    Max Tire Pressure: 130psi

Application:

  • Road / track (fixed gear) / Triathlon / Time Trial (TT)
  • Appearance:

    Weave: UD only

    Finish: Matte / Glossy / 50% matt / Paintless Matt /Paintless Glossy

Feature:

  • clincher/clincher tubeless compatible two size tyres designed: To be ensured can be mount clinchr or clincher tubeless tyres.

Tech improvements:

*  25mm width U shape with 30mm depth carbon rims are our new design, they are with 25mm tire width, have a wider spacing between the bike rim than traditional V-shaped rims.Front wheel still with symmetrical profile for smooth and balanced;and rear wheel with asymmetrical profiles can be adjusted the weights of drive side is heavier than non drive side.So when the wheels' rolling is balance and smooth.

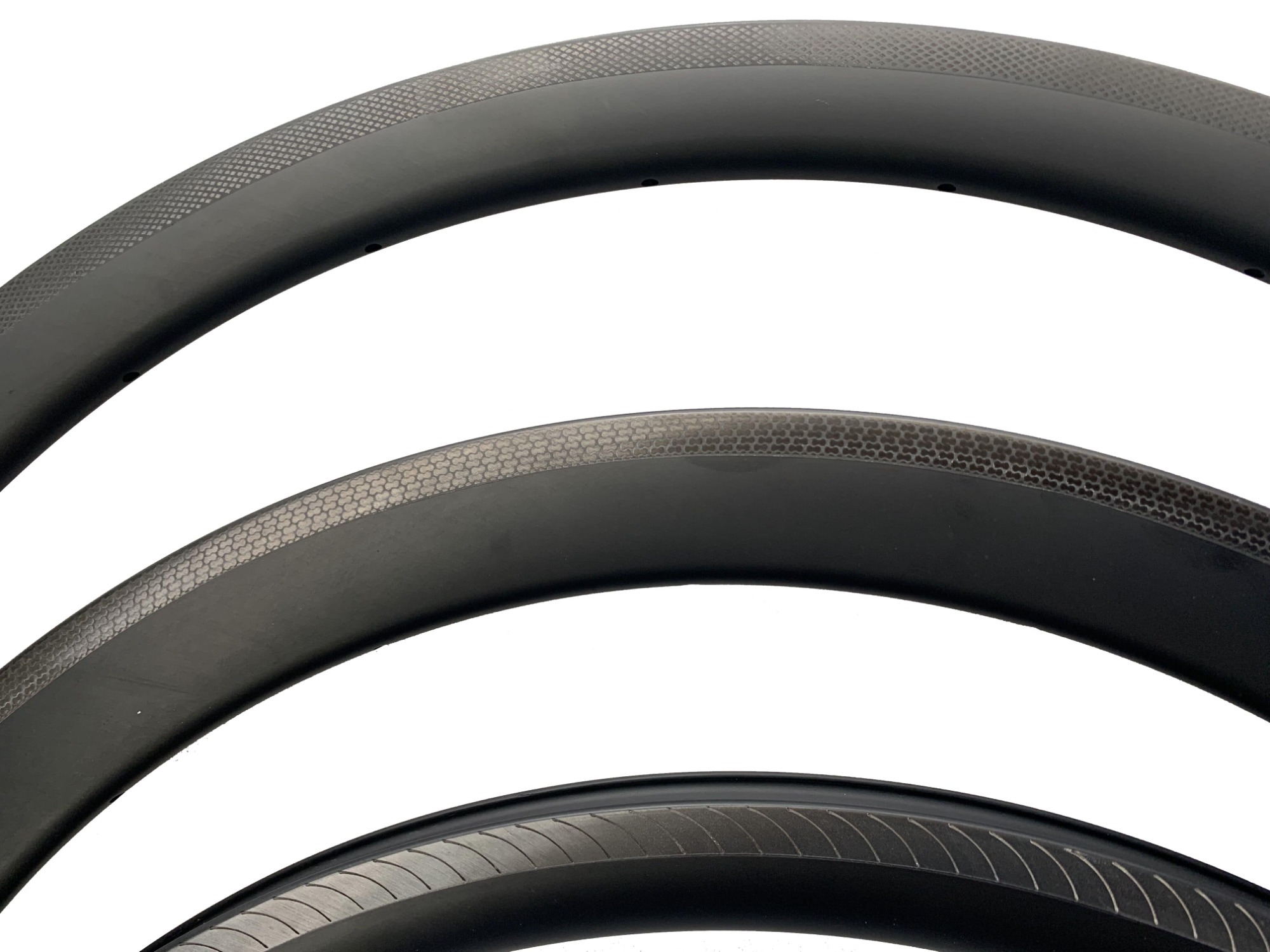

* The rim has dimpled suface,It have the effect of heat dissipation.After testing,when brakes the tempretures will ended on 200~220 degrees.Our high TG carbon rims have come to 240-250 degrees,so insured the braking suface is fine.

*  Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.



*  Filled with 3D weave, that will make the rim stable, safe and durable.



*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.



*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.


Photos:

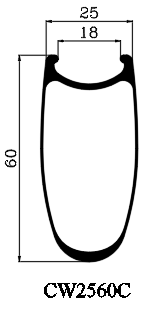

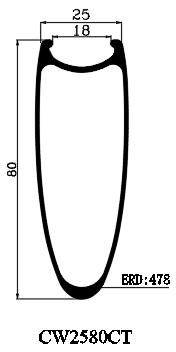

Rim section:
