|CW26DN58T/C/CT| 2020 New Dimpled carbon bike rims 58mm depth 26mm width tubular/clincher/tubeless tire V brake carbon wheel special brake line

700C 450~515g external 26mm internal 18mm depth 58mm tubular/clincher/tubeless tires ERD 523mm new dimple carbon bike rims.
Price:
USD
$146.00
$164.00
    Please select the information you wantX
  • Weave:
    UD
  • Rim depth:
    58mm
  • Finish:
    Original
  • Holes:
    16
    18
    21
    24
    28
    32
    36
    21(G3)
  • Spokes holes type&Diameter:
    Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)
    Without outer holes(No need rim tapes Inner holes 4.5mm)
    Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
  • Rim type:
    Clinhcer
    Tubular
    Clincher tubeless compatible
Quantity:
-
+
(998 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews(1)

Basic info:

  • Item No.: CW26DN58T/C/CT
  •
  • Material: Toray T800+T700 Carbon Fiber
  •
  • Rim Type: Tubular/Clincher/Clincher tubeless compatible
  •
  • Warranty: 3 Years
  •
  • Brake system: V brake
  •
  • Standard: EN Standard

Dimension:

  • Size: 700C

    BSD: 622mm (ISO Standard)



  • ERD: 523mm (don't inclued nipples hed)

    External Width: 26mm



  • Spoke Hole Dia.: 4.5mm / 2.3mm

    Depth:58mm


    Internal Width: 18mm(clincher tubeless compatible)

    Valve Hole Dia.: 6.5mm

    Hole count: 16,18,20,21,24, 28, 32, 36 21(G3)

    Assembly Hole Dia.: 7.5mm


    Weight:450+/- 15g (Tubular) ,510+/- 15g (Clincher) 515+/- 15g (Tubeless)

  • Recommendation  data:

  •  Max Spoke Tension: 130kgf


  •  Weight Limit: 90kg

    Max Tire Pressure: 130psi

    Appearance:

    Weave: UD

    Finish: Original

Application:

  • Road / Cyclocross / Triathlon / Time Trial (TT)

Feature:

  • Tubular/clincher/clincher tubeless compatible all size tyres designed: Those three kinds of tyres included fit for any tyres.

Tech improvements:

The U shape rims are our new design, they are with 26mm tire width, have a wider spacing between the bike rim than traditional V-shaped rims, thanks to a slight widening of the rim, they are much stiffer. With a slightly angled brake track, they have better braking. And they are lightweight, fast, when hit a few windy sections, it could not fell a thing in the cross winds.



*  58mm depth 26mm width rim with dimpled original appearance has excellent performances in climbing and acceleration with the advanced aerodynamics, it is ideally suited for racing and triathlon. Its stiff construction offer the ability to maintain higher speed and good cornering grip.



*  High TG 220 degrees and high heat-resistant basalt braking surface improve heat dissipation, effectively reduce the impact in heat caused by braking to provide you with reliability and stopping power.



*  Filled with 3D weave, that will make the rim stable, safe and durable.



*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.



*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.

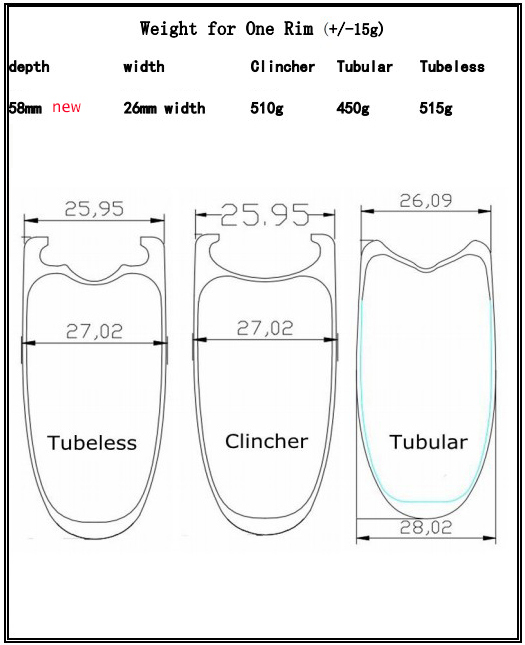

Rim section:

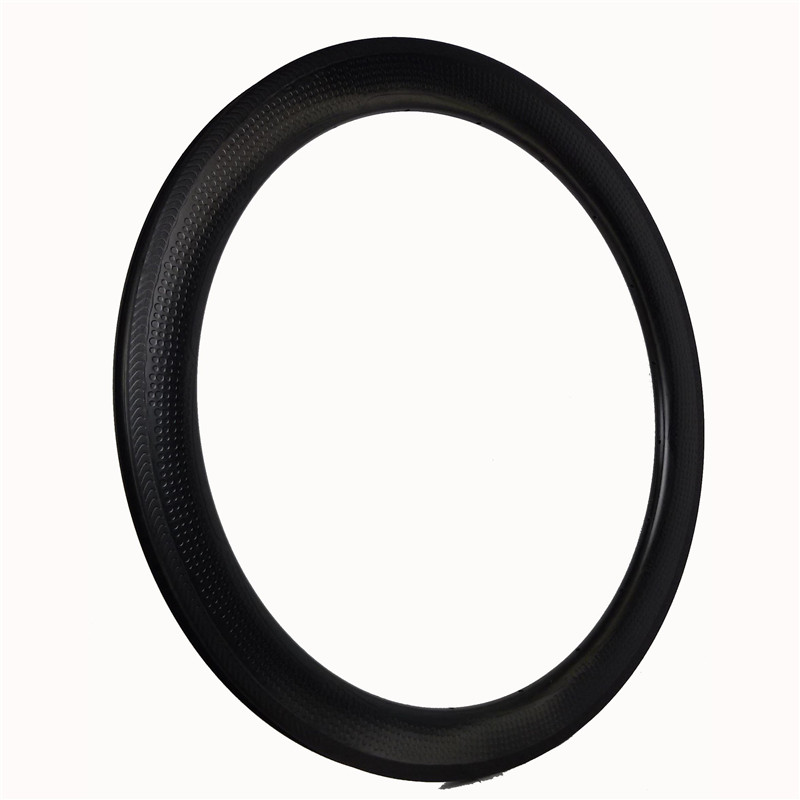

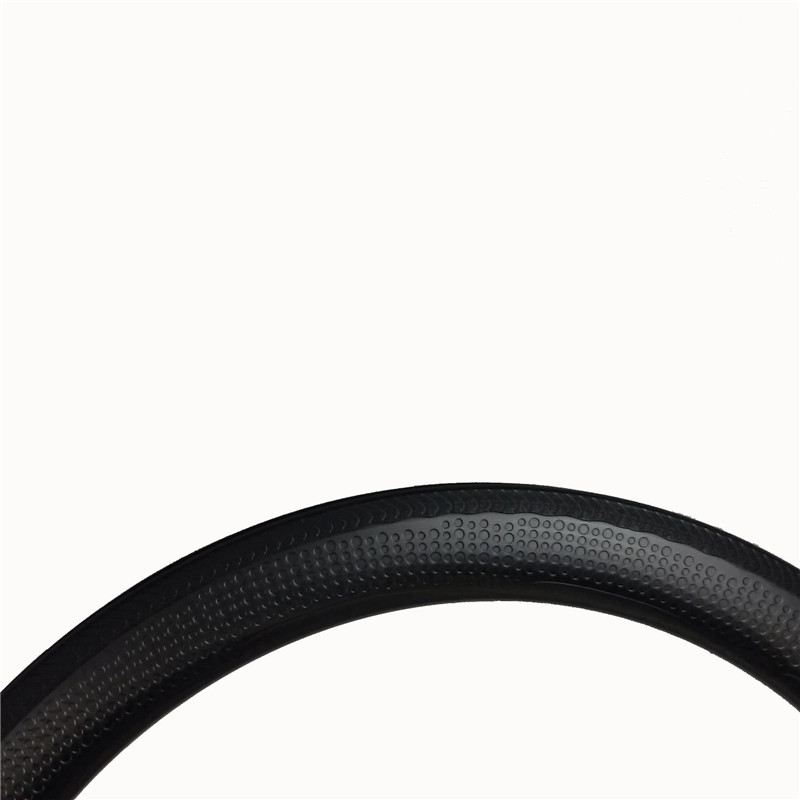

Photos:
