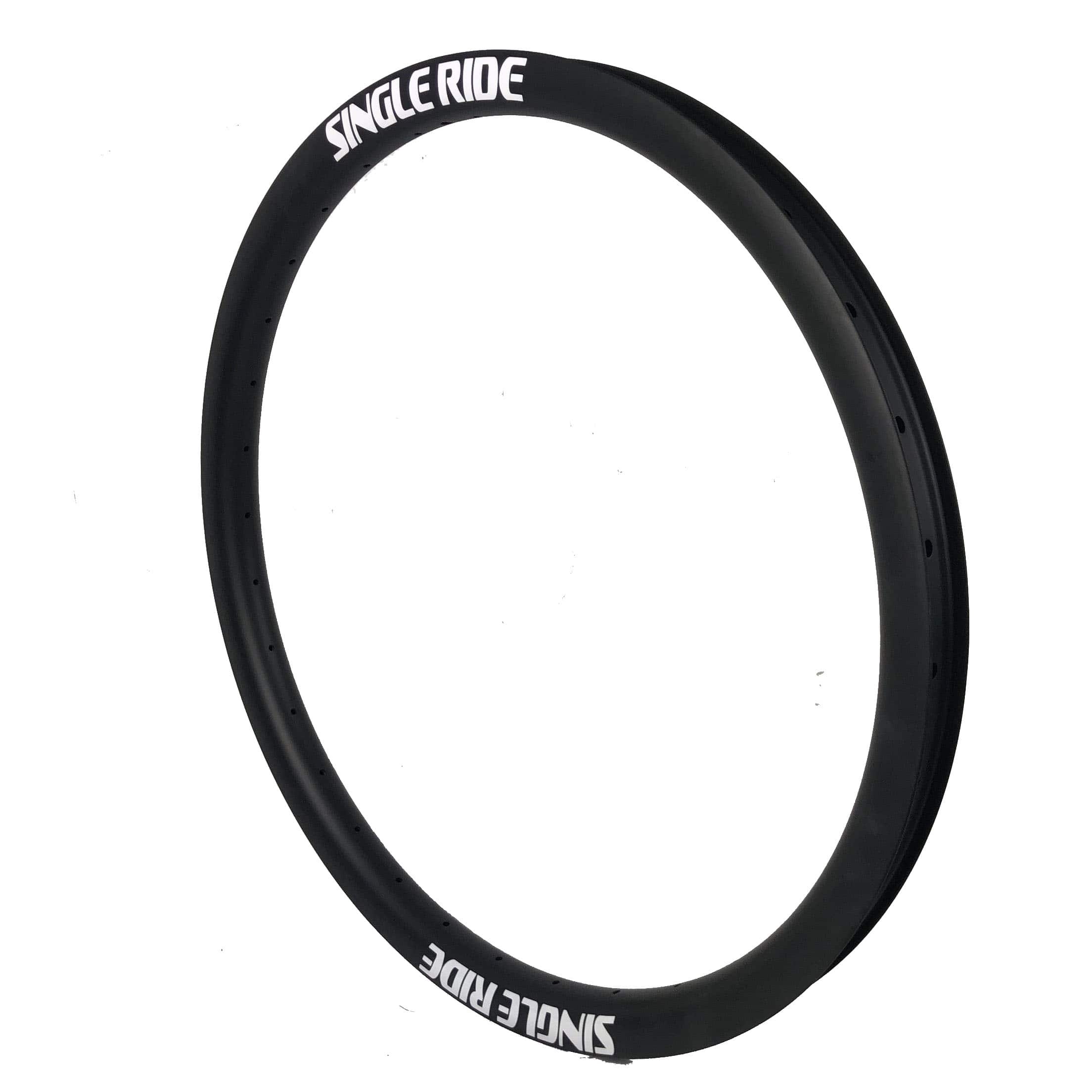

|CW27-4030CT| carbon rims 27.5 mountain bike MTB wheel width 40mm wide 30 deep hookless clincher tubeless DIY bicycle part XC/AM/DH

27.5er 420g~500g external 40mm internal 34mm depth 30mm hookless clincher tubeless tire 2.3" ~ 3.0" ERD 542mm  XC/AM/DH version.
Price:
USD
$153.94
$179.00
(14% OFF)
    Please select the information you wantX
  • Weave:
    UD
    3K
    12K
    3K twill
    12K twill
  • Holes:
    24
    28
    32
    36
  • Finish:
    matt
    glossy
    50% matt
    Paintless Matt
    Paintless Glossy
  • Version:
    Standard 420g
    AM 440g
    DH 500g
  • Spokes holes type&Diameter:
    Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)
    Without outer holes(No need rim tapes Inner holes 4.5mm)
    Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
Quantity:
-
+
(1000 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews

Basic info:

  • Item No.: CW27-4030CT
  •
  • Material: Toray T1000+T700 Carbon Fiber
  •
  • Rim Type: Hookless Clincher tubeless compatible
  •
  • Warranty: 3 Years

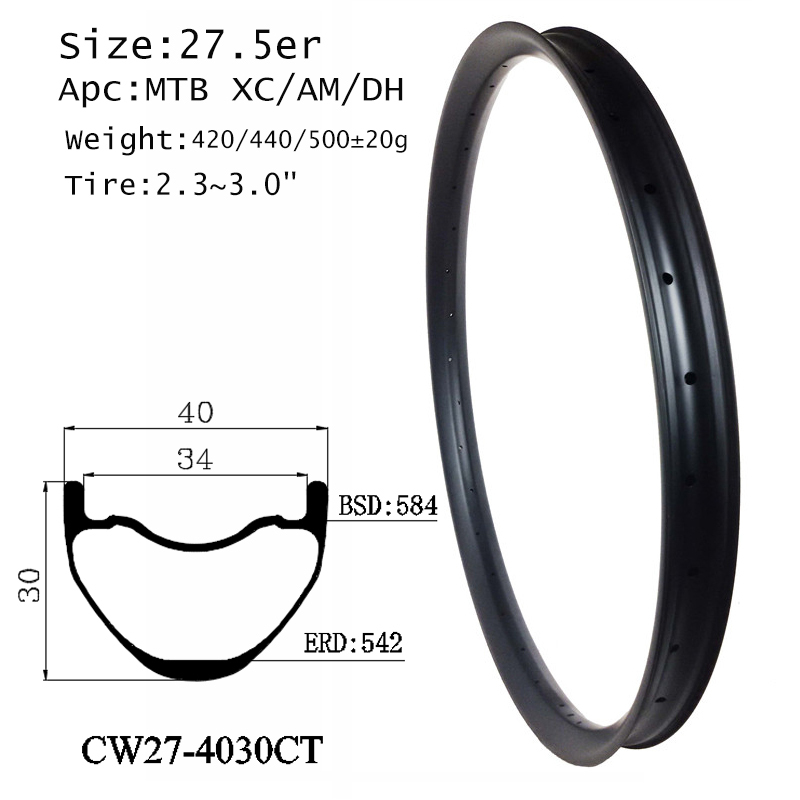

Dimension:

  • Size: 27.5er

    BSD: 584mm



  • ERD: 542mm

    External Width: 40mm



  • Spoke Hole Dia.: 4.5mm / 2.3mm

    Depth: 30mm



  • Internal Width: 34mm

    Valve Hole Dia.: 6.5mm


    Hole count: 24, 28, 32, 36

    Assembly Hole Dia.: 7.5mm



  • Weight: 420±20g pcs (standard XC),440±20g pcs (AM),500±20g pcs (DH)

    Recommendation  data:

  • Tire Size: 2.3" ~3.0"

    Max Spoke Tension: 130kgf



  •  Weight Limit: 110kg

    Max Tire Pressure: 70psi

    Appearance:

    Weave: UD/3K/12K/3K twill/12K twill

    Finish: Matte / Glossy

Application:

XC / AM /DH

Feature:

  • Clinhcer tubeless Compatible designed: This function means you can install clincher or tubeless two kinds of tyres are all perfectly.

Tech improvements:

* Single layer technical made,is the latest generation process made of the carbon rims,whether from inner and outside layers are all use one piece carbon fiber,so the rim will have good strength,and light weight.



*  Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.

*  40mm width 30mm depth it's our lightest types and was designed according to the latest trend. By getting ride of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.



*  Hookless: By getting rid of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.



*  Filled with 3D weave, that will make the rim stable, safe and durable.



*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.



*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
