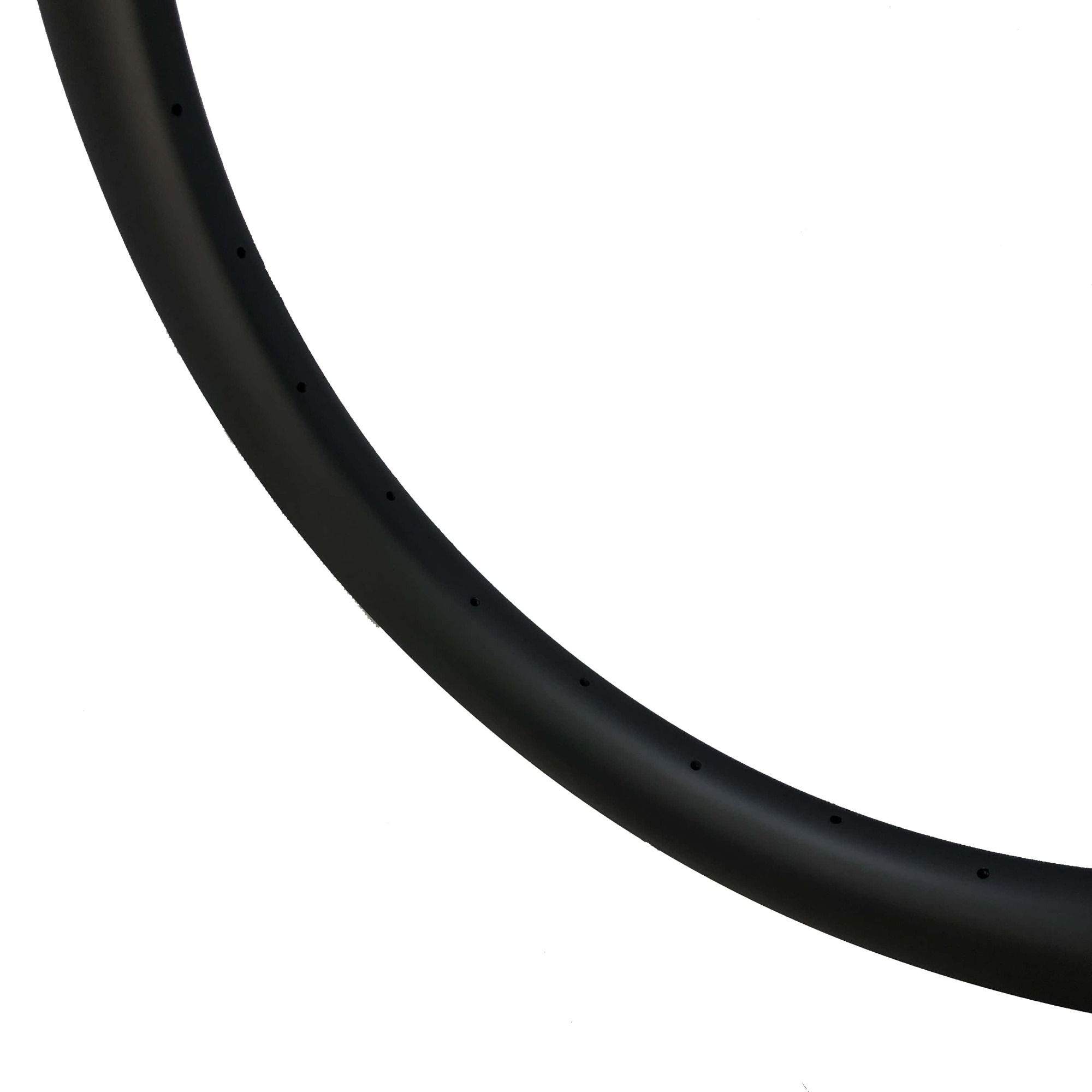

|CW27-3826CT| Special Stronger asymmetry design 27.5er all mountain bike carbon rim 38mm width 26mm depth cross MTB AM version cycles ride

27.5inch 375g~440g external 38mm internal 32mm depth 26mm hookless clincher tubeless tire 2.3" ~ 3.0" ERD 548mm AM/all mountain cycling carbon rim.
Price:
USD
$178.00
$199.00
    Please select the information you wantX
  • Weave:
    UD
    3K
    12K
    3K twill
    12K twill
  • Holes:
    28
    32
    24
    36
  • Finish:
    matt
    glossy
    50% matt
    Paintless Matt
    Paintless Glossy
  • Version:
    Standard 440g
    Ultralight 375g
  • Spokes holes type&Diameter:
    Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)
    Without outer holes(No need rim tapes Inner holes 4.5mm)
    Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
Quantity:
-
+
(994 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews(1)

Basic info:

  • Item No.: CW27-3826CT-AM
  •
  • Material: Toray T700/T800+T700 Carbon Fiber
  •
  • Rim Type: Hookless Clincher tubeless compatible
  •
  • Warranty: 3 Years

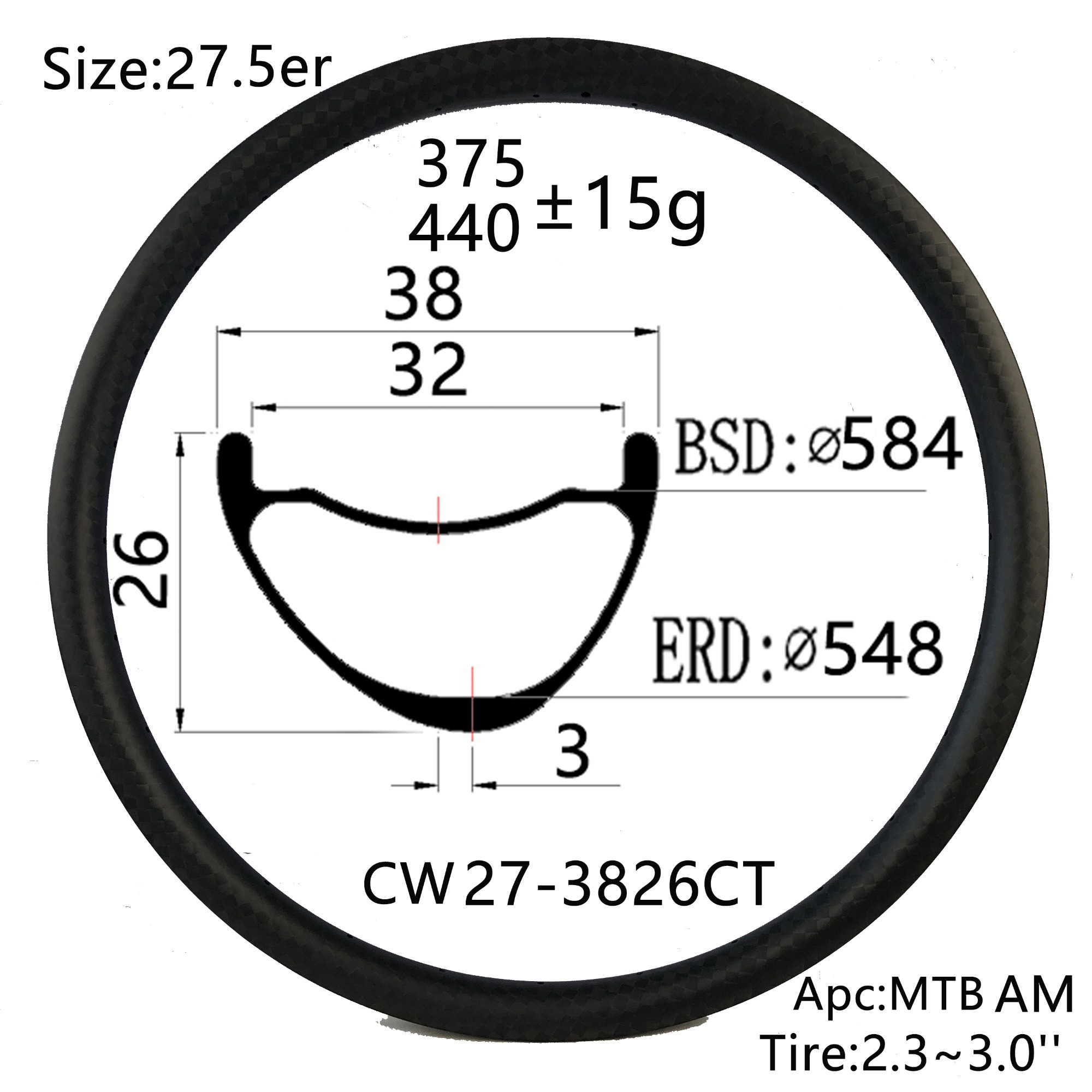

Dimension:

  • Size: 27.5er

    BSD: 584mm (ISO Standard)



  • ERD: 548mm (don't inclued nipples hed)

    External Width: 38mm



  • Spoke Hole Dia.: 4.5mm / 2.5mm

    Depth:26mm


    Internal Width: 32mm

    Valve Hole Dia.: 6.5mm

    Hole count: 24, 28, 32, 36

    Assembly Hole Dia.: 7.5mm


    Weight:375/440g+/- 15g pcs (ultralight/strandard version)

  • Recommendation  data:

  • Tire Size: 2.3" ~ 3.0"

    Max Spoke Tension: 130kgf



  •  Weight Limit: 120kg

    Max Tire Pressure: 70psi



Application:

AM/all mountain

Appearance:

Weave: UD/3K/12K/3K twill/12K twill

Finish: Matte / Glossy /50%Matt / Paintless Matt / Paintless Glossy

Feature:

  • Tubular tyres designed: This function means need to used special glues to assemble the tyres and will let the wheels solid and burly.

Tech improvements:

* The ultralight version is new tech designed,(50% T800 and fixed T700 another) With Toray T800 carbon fiber it has more strongth and smaller density,but still keep T700 carbon weave with good tenacity characters.So the rims with more stronger,lighter,and durable.And strand version,just normal T700 carbon fiber,so it can do any carbon weave.

Ps: But ultralight version just can be do UD carbon weave,so if you need to ultralight/super light vesion,plz just choose UD carbon weave.

*  Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.

* Single layer technical made,is the latest generation process made of the carbon rims,whether from inner and outside layers are all use one piece carbon fiber,so the rim will have good strength,and light weight.



*  27.5er carbon rims 38mm width it's our special designed with stronger downhill racing. Designed according to the latest trend. By getting ride of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.



*  Hookless: By getting rid of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.



*  Filled with 3D weave, that will make the rim stable, safe and durable.



*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.



*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
